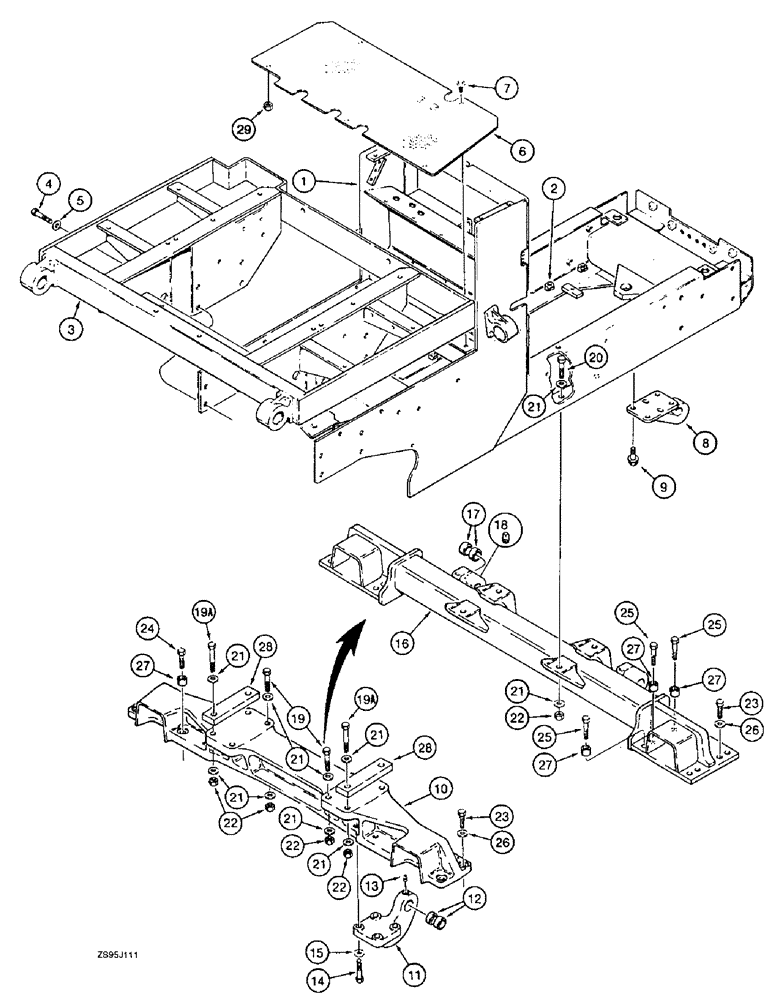

Запчасти Case 550E (9-10) - MAIN, ENGINE, SEAT AND TANK FRAMES (09) - CHASSIS/ATTACHMENTS

1

R58613

FRAME

- main and engine

1шт.

2

224-28010

SQUARE NUT,Sq, 5/8"-11, G2, Hvy

- heavy square, 5/8 inch NC, weld on, for undercarriage guards

10шт.

3

R58150

FRAME

- seat and tank

1шт.

4

426-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex, 3/4 NC x 1-3/4 inch, grade 8, seat and track frame to main frame and transmission, use with Loctite 242

8шт.

5

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, 20 x 44 x 6 mm, special

8шт.

6

R58655

PLATE

- floor

1шт.

7

160-107

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

5шт.

8

R50469

HOOK

- pull, if used

1шт.

9

160-108

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 8, Full Thd

- hex flange, 1/2 NC x 1-1/2 inch, grade 8

6шт.

10

R47683

LARGE PLATE

CROSSMEMBER - front, 53 inch gauge long track and rubber track models

1шт.

11

R55861

BRACKET

- C-frame mounting, 53 inch gauge long track and rubber track models

2шт.

12

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- 1-1/2 ID x 1-7/8 OD x 11/16 inch long

2шт.

13

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 inch PT x 21/32 inch

2шт.

14

326-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

53 inch gauge long track and rubber track models Hex, 3/4"-10 x 3 1/4", G8

8шт.

15

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, hardened, 53 inch gauge long track and rubber track models

8шт.

16

R54432

DRAWBAR

CROSSMEMBER - front, 64 inch gauge LGP models only

1шт.

17

D30930

BUSHING,38.33mm ID x 47.63mm OD x 17.53mm L

- C-frame mounting lug,1-1/2 ID x 1-7/8 OD x 11/16 inch long

4шт.

18

217-430

PLUG,Hex Soc, 1/8" - 27 NPTF

- hex socket, 1/8 inch PT, C-frame mounting lug

2шт.

19

326-1256

BOLT,Hex, 3/4" - 10 x 3-1/2", Gr 8

53 inch gauge long track models only Hex, 3/4"-10 x 3 1/2", G8

4шт.

19a

326-1280

BOLT,Hex, 3/4" - 10 x 5", Gr 8

53 inch gauge rubber track models only Hex, 3/4"-10 x 5", G8

4шт.

20

326-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 8

64 inch gauge LGP models only Hex, 3/4"-10 x 3", G8

4шт.

21

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, hardened

8шт.

22

232-41112

NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

4шт.

23

113-2714

LOCK BOLT,Locking, 3/4"-10 x 2", G8

BOLT, Locking, 3/4-10 x 2", G8, Outer holes

4шт.

24

326-1252

BOLT,Hex, 3/4" - 10 x 3-1/4", Gr 8

Use with Loctite 242, inner holes, 53 inch gauge long track and rubber track models Hex, 3/4"-10 x 3 1/4", G8

4шт.

25

113-2719

LOCK BOLT,Locking, 3/4"-10 x 3", G8

BOLT, , Inner holes, 64 inch gauge LGP models Locking, 3/4"-10 x 3", G8

6шт.

26

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, hardened, outer holes

4шт.

27

R30398

SPACER

- used on 53 inch gauge long track and rubber track models; six used on 64 inch gauge LGP models

4-6шт.

28

R58320

SPACER

- crossmember to frame, rubber track models only

2шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

2шт.
