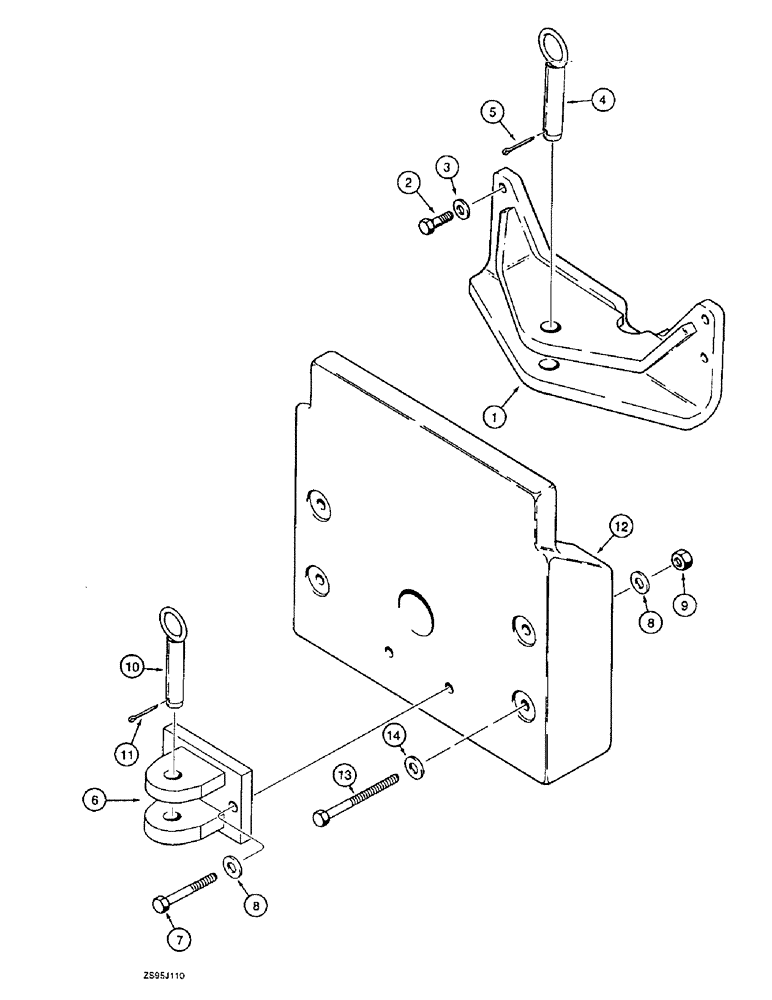

Запчасти Case 550E (9-08) - DRAWBARS AND COUNTERWEIGHT, WITH NO REAR EQUIPMENT, 64 INCH GAUGE LGP MODELS (09) - CHASSIS/ATTACHMENTS

1

R47224

DRAWBAR

- used on models with no rear equipment

1шт.

2

326-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

4шт.

3

D34666

WASHER,33.34mm ID x 63.5mm OD x 2.38mm Thk

- flat, special, 3/4 inch hardened

4шт.

4

R24105

DRAWBAR

PIN - draw bar

1шт.

5

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

6

R39904

DRAWBAR

- used on models with no rear equipment and counterweight

1шт.

7

326-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

With no rear equipment 53 inch gauge long track models Hex, 3/4"-10 x 4 1/2", G8

2шт.

8

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, speciall, 3/4 inch hardened, with no rear equipment 53 inch gauge long track models

4шт.

9

425-1012

NUT,3/4"-10, G5

With no rear equipment 53 inch gauge long track models 3/4"-10, G5

2шт.

10

R24105

DRAWBAR

PIN - drawbar, with no rear equipment 53 inch gauge long tack models

1шт.

11

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), , With no rear equipment 53 inch gauge long track models 1/4" x 2"

1шт.

12

R57072

BALANCER

COUNTERWEIGHT - rear, 500 pound (227 kg), with no rear equipment 53 inch gauge long track models

1шт.

13

413-12120

BOLT,Hex, 3/4" - 10 x 7-1/2", Gr 5

- hex, 3/4 NC x 7-1/2 inch, grade 8, with no rear equipment 53 inch gauge long track models

4шт.

14

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, special, 20 x 44 x 6, hardened, with no rear equipment 53 inch gauge long track models

4шт.
