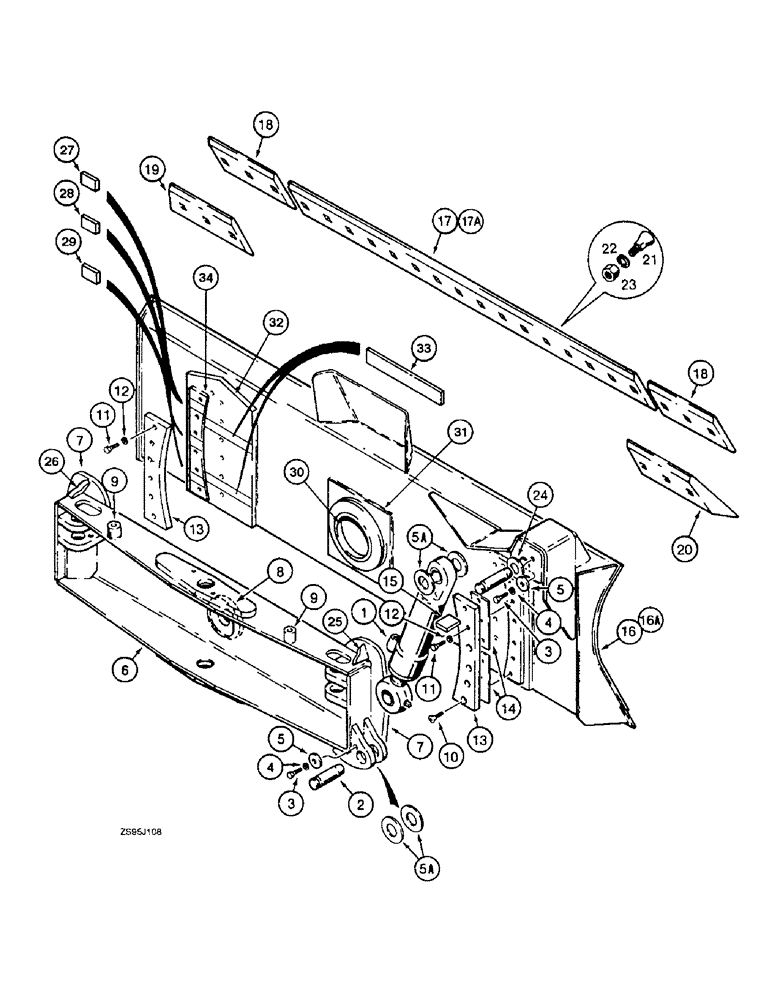

Запчасти Case 550E (9-04) - DOZER LEVELING BEAM, BLADE, AND TILT CYLINDER (09) - CHASSIS/ATTACHMENTS

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - dozer tilt, see parts list figure 8-22

1шт.

2

D34796

PIN

- tilit cylinder mounting

2шт.

3

413-1016

BOLT,Hex, 5/8" - 11 x 1", Gr 5

- hex, 5/8 NC x 1 inch

2шт.

4

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

5

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- flat, special, pin retaining

2шт.

5a

96-81002

WASHER,1.53" ID x 3" OD x 0.26" Thk

- flat, 1-17/32 x 3 x 1/4 inch, hardened, tilt cylinder mounting at leveling beam and blade

4шт.

R58797

BEAM

ASSEMBLY - leveling, dozer blade

1шт.

6

NSS

NOT SOLD SEPARAT

BEAM - leveling, dozer blade

1шт.

7

R58793

LARGE PLATE

PLATE - rub

2шт.

See service bulletin NCR SB 021.292 for installation instructions.

1шт.

8

D34869

LARGE PLATE

PLATE - swivel

1шт.

See service bulletin NCR SB 021.292 for installation instructions.

1шт.

9

R58796

BLOCK

- tapped

2шт.

10

61-46224

HEX SOC SCREW,FLAT, 5/8" x 1-1/2"

BOLT - hex socket, 5/8 NC x 1-1/2 inch

4шт.

11

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

8шт.

12

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

13

127980A1

LARGE PLATE

PLATE - wear

2шт.

See service bulletin NCR SB 021.292 for installation instructions.

1шт.

14

D47911

SHIM,.0359" Thk

Wear plate .0359" Thk

1шт.

See service bulletin NCR SB 021.292 for installation instructions.

1шт.

15

D42402

GAUGE

- leveling, welds to tilt cylinder guard, see figure 8-4

1шт.

16

R58812

BLADE

- 96 inch (2438 mm) wide, used on 53 inch gauge long track models

1шт.

16a

R58813

BLADE

- 104 inch (2642 mm) wide, used on 64 inch LGP models

1шт.

17

R57844

EDGE

Cutting, center, long track models, 72 inches OAL

1шт.

17a

R57843

EDGE, CUTTING

Center, LGP models 80 inches OAL

1шт.

18

R57841

EDGE, CUTTING

EDGE - cutting, end, standard

2шт.

19

R57846

EDGE, CUTTING

EDGE - cutting, left-hand end, heavy duty

1шт.

20

R57845

EDGE, CUTTING

EDGE - cutting, right-hand end, heavy duty

1шт.

21

20-2828

CARRIAGE BOLT,#3, 1/2" - 13 x 1 3/4", Gr 8

BOLT - plow, 1/2 NC x 1-3/4 inch

24-26шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

24-26шт.

23

429-108

NUT,1/2"-13, G8

- hex, 1/2 inch NC, grade 8

24-26шт.

24

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

- flat, special

1шт.

25

107461A1

GUSSET

- leveling beam

1шт.

See service bulletin NCR SB 021.292 for installation instructions.

1шт.

26

107462A1

GUSSET

- leveling beam

1шт.

See service bulletin NCR SB 021.292 for installation instructions.

1шт.

27

R40625

SHIM,.104" Thk

Mounting plate .104" Thk

2шт.

See service bulletin NCR SB 021.292 for installation instructions.

1шт.

28

R40624

SHIM,.059" Thk

Mounting plate .059" Thk

2шт.

See service bulletin NCR SB 021.292 for installation instructions.

1шт.

29

R40623

SHIM,.024" Thk

Mounting plate .024" Thk

2шт.

See service bulletin NCR SB 021.292 for installation instructions.

1шт.

30

D34855

RING

- swivel, blade

1шт.

See service bulletin NCR SB 021.292 for installation instructions.

1шт.

31

R48943

LARGE PLATE

PLATE - swivel backing

1шт.

See service bulletin NCR SB 021.292 for installation instructions.

1шт.

32

R58809

LARGE PLATE

PLATE - backing

2шт.

See service bulletin NCR SB 021.292 for installation instructions.

1шт.

33

R40626

SHIM,.024" Thk

Backing plate .024" Thk

2шт.

See service bulletin NCR SB 021.292 for installation instructions.

1шт.

34

R58808

LARGE PLATE

PLATE - tapped mounting

2шт.

See service bulletin NCR SB 021.292 for installation instructions.

1шт.
