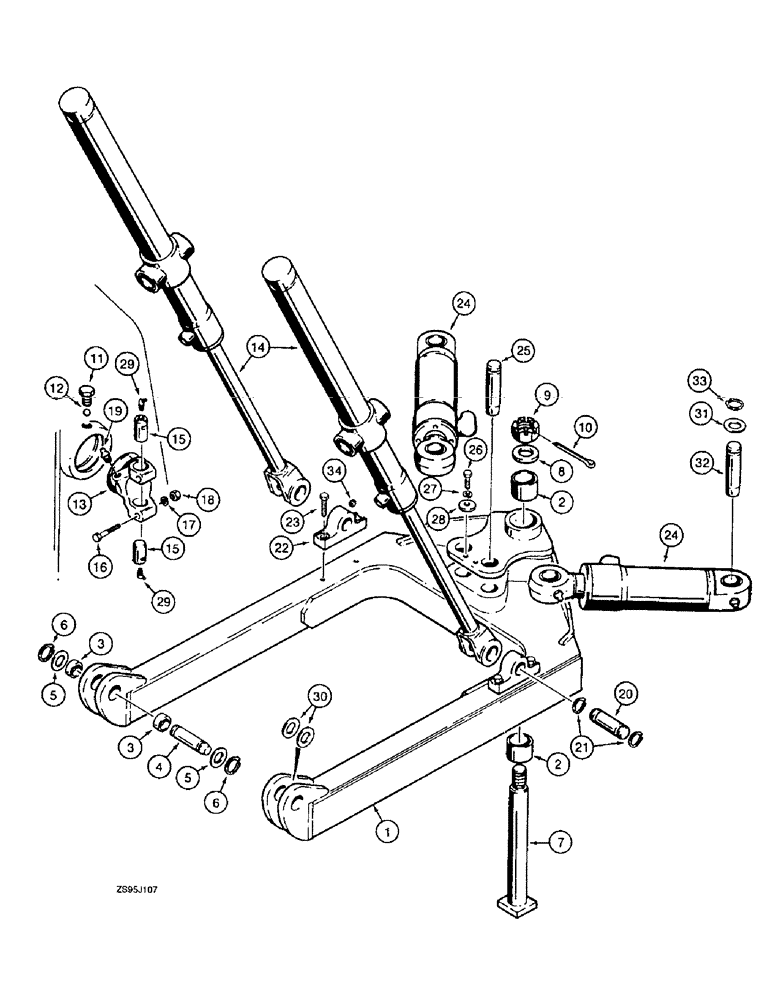

Запчасти Case 550E (9-02) - DOZER C-FRAME AND CYLINDERS (09) - CHASSIS/ATTACHMENTS

1

R57259

FRAME

C-FRAME ASSEMBLY - dozer

1шт.

2

D33023

BUSHING,51.02mm ID x 63.5mm OD x 50.8mm L

- leveling beam mounting

2шт.

3

D32919

BUSHING,38.4mm ID x 47.63mm OD x 19.05mm L

- mounting lug

4шт.

4

R50774

SPLIT PIN/SAFETY PIN,38.1mm OD x 127mm L

PIN - C-frame mounting

2шт.

5

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- flat, 1/2 inch, special, pin retaining

4шт.

6

100-16150

SNAP RING,#150, Ext

Ring, Snap, , Pin #150, Ext

4шт.

7

D34789

AXLE PIN

PIN - leveling, Serial Range: beam-C-frame

1шт.

8

495-21162

WASHER,1 1/2"

- flat, 1-5/8 x 3-1/2 x 3/16 inch

1шт.

9

425-1224

SLOTTED NUT,1 1/2"-6, G5

NUT - hex, slotted, 1-1/2 inch NC

1шт.

10

432-1640

COTTER PIN,1/4" x 2 1/2"

Pin, Split (Cotter), 1/4" x 2 1/2"

1шт.

11

D28481

PLUG

- special

2шт.

12

211-1024

BALL,3/4" Dia

- chrome alloy steel, 3/4 inch, grade 24

38шт.

13

R47082

TRUNNION

inner race

2шт.

TRUNNION RACE THAT REF 13 SLIDES INTO IS D31317, SEE FIGURE 9-18.

1шт.

14

REF

INSTRUCTION

CYLINDER ASSEMBLY - lift, 2-1/2 (64) ID x 28 inch (711 mm) stroke, parts list figure 8-20

2шт.

15

D24508

PIN,31.74mm OD x 50.8mm L

, Serial Range: --trunnion

4шт.

16

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

425-106

NUT,3/8"-16, Cl 5

4шт.

19

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 45 degree, 1/8 PT x 7/8 inch

2шт.

20

D46467

PIN

- lift, Serial Range: cylinder-C-frame

2шт.

21

103-16125

SNAP RING,#125, Ext

Ring, Snap, , Cylinder mounting pin #125, Ext

4шт.

22

D46466

BRACKET

- cylinder mounting

2шт.

23

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

- hex, 5/8 NC x 2-1/4 inch, use with Loctite 242

4шт.

24

REF

INSTRUCTION

CYLINDER ASSEMBLY -angle, see parts list figure 8-24

2шт.

25

D34795

AXLE PIN,35.87mm OD x 136.4mm L

PIN - angle, Serial Range: cylinder-C-frame

2шт.

26

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

2шт.

27

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

28

70523

WASHER,16.67mm ID x 47.63mm OD x 6.35mm Thk

- flat, special

4шт.

29

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

4шт.

30

D28610

WASHER,38.5mm ID x 63.5mm OD x 2.66mm Thk

- flat, special, 1-33/64 x 2-1/2 x 7/64 inch, used as shim inside the C-frame mounting lugs

1шт.

31

A12089

WASHER,38.89mm ID x 76.2mm OD x 1.9mm Thk

- flat, special, used as shim between angle cylinder and leveling beam

1шт.

32

D44881

PIN,38.1mm OD x 136.4mm L

- angle cylinder to leveling beam

2шт.

33

D25279

SNAP RING,M35, Int

RING - snap, pin retaining

4шт.

34

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8PT x 21/32 inch

2шт.
