Запчасти Case 550E (8-46) - CIRCUIT RELIEF VALVE (08) - HYDRAULICS

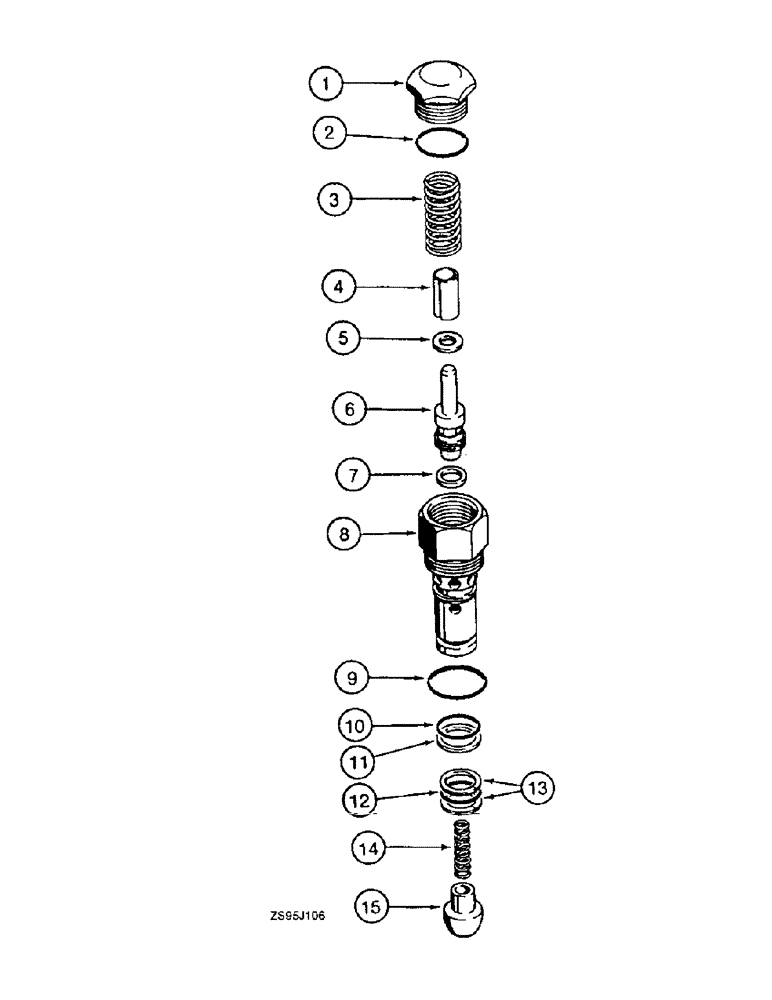

Схема запчастей Case 550E - (8-46) - CIRCUIT RELIEF VALVE (08) - HYDRAULICS
11
1
8
2
7
12
14
5
3
4
10
9
15
13
6

Артикул

Название

Примечание

Количество

N8950

VALVE

ASSEMBLY - circuit relief

2шт.

1

NSS

NOT SOLD SEPARAT

CAP - circuit relief valve

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

N8196

SPRING

- outer

1шт.

4

N8190

SLEEVE VALVE

SLEEVE - outer spring

1шт.

5

A55893

SHIM,.0418" Thk

(1.016 mm) .0418" Thk

1шт.

5

A55894

SHIM,.0209" Thk

(0.508 mm) .0209" Thk

1шт.

5

D39712

SHIM

- 0.010 inch (0.254 mm) thick

1шт.

18-1417

SEAL

PLUNGER ASSEMBLY - circuit relief valve

1шт.

6

NSS

NOT SOLD SEPARAT

PLUNGER - circuit relief valve

1шт.

7

D39714

RING

SEAL - plunger, double lip

1шт.

8

NSS

NOT SOLD SEPARAT

BODY - circuit relief valve

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Center -016, 90 Duro, .614" ID x .070" Thk

1шт.

11

L35297

RING,16.18mm ID x 19.07mm OD x 1.42mm Thk

- backup, center O-ring

1шт.

12

238-5015

O-RING,0.07" Thk x 0.551" ID, -15, Cl 5, 75 Duro

-015, 70 Duro, .551" ID x .070" Thk, Inner

1шт.

13

D88725

BACK-UP RING

RING - backup, inner O-ring

2шт.

14

H268730

SPRING

- poppet, inner

1шт.

15

D28576

VALVE POPPET

POPPET - load check

1шт.

Выбрано товаров: 19
