Запчасти Case 550E (8-40) - LIFT SECTION (08) - HYDRAULICS

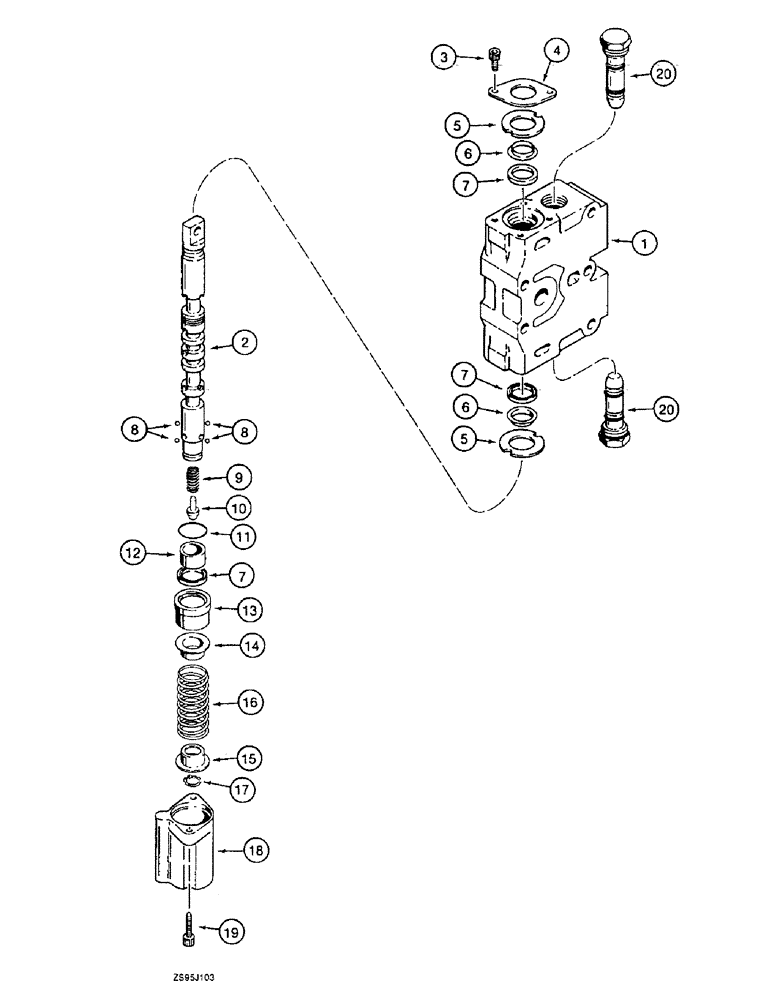

Схема запчастей Case 550E - (8-40) - LIFT SECTION (08) - HYDRAULICS
5
13
18
7
16
19
9
7
4
20
1
17
11
10
8
5
12
3
2
14
15
7
20
8
6
6

Артикул

Название

Примечание

Количество

100801A1

KNIFE SECTION

SECTION ASSEMBLY - lift

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - section

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL - section

1шт.

3

61-3258

HEX SOC SCREW,1/4"-20 x 1/2"

BOLT - hex socket, 1/4 NC x 1/2 inch

2шт.

4

N8194

LARGE PLATE

PLATE - retainer

1шт.

5

136898A1

RETAINER

- spool seals

2шт.

REF 5, 6, 7: 136898A1, 136900A1, 136902A1 - RETROFIT KIT TO GO BACK TO ORING SEAL/BACK-UP RING IS 352798A1. 2/15/99 BW CAM

1шт.

6

136900A1

WIPER SEAL

WIPER - spool

2шт.

7

136902A1

SEAL

- lip

2шт.

8

S301095

BALL

- steel, 7/32 inch diameter

4шт.

9

100848A1

SPRING

- detent

1шт.

10

N7035

VALVE POPPET

POPPET - detent

1шт.

11

238-5121

O-RING,0.103" Thk x 1.049" ID, -121, Cl 5, 75 Duro

1шт.

12

S301097

SLEEVE VALVE

SLEEVE - spool

1шт.

13

100847A1

SLEEVE

- detent

1шт.

14

100845A1

COLLAR

SEAT - spring, upper

1шт.

15

N7033

SEAT

- spring, lower

1шт.

16

100846A1

SPRING

- centering, spool

1шт.

17

100-1162

SNAP RING,#62, Ext

Ring, Snap, , spool #62, Ext

1шт.

18

136896A1

CAP

- spool detent

1шт.

19

102201A1

HEX SOC SCREW,1/4" - 20 x 7/8", W/ Nylon Patch

SCREW, , Special, self-locking, Use Loctite 242 Hex Soc Hd, 1/4"-20 x 7/8"

2шт.

20

D87307

VALVE

ASSEMBLY - load check, parts list figure 8-44

2шт.

21

100850A1

SEAL

- lip, dentent sleeve, not shown

1шт.

Выбрано товаров: 23
