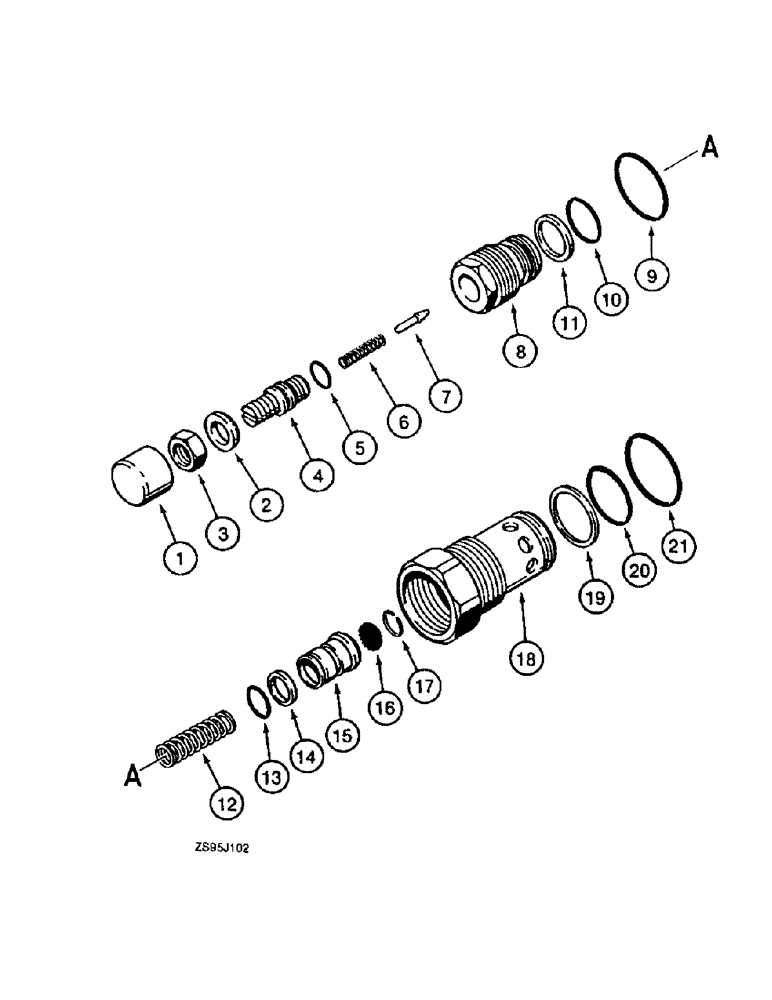

Запчасти Case 550E (8-38) - MAIN RELIEF VALVE (08) - HYDRAULICS

N8191

VALVE

ASSEMBLY - main relief

1шт.

The pressure setting of this main relief valve may not be preset for your application, consult the 550E Service Manual for the correct setting.

1шт.

1

NSS

NOT SOLD SEPARAT

COVER - tamper proof

1шт.

2

N9475

WASHER

- special

1шт.

3

86585245

SPECIAL NUT,JAM, 5/8" - 18

- hex, jam, 3/8 inch NF

1шт.

4

N9463

ADJUSTMENT SCREW

- adjusting

1шт.

5

238-5012

O-RING,0.07" Thk x 0.364" ID, -12, Cl 5, 75 Duro

-012, 70 Duro, .364" ID x .070" Thk, Adjusting screw

1шт.

6

N9465

SPRING

- plunger

1шт.

7

N9464

PLUNGER

POPPET - relief valve

1шт.

8

N9769

BODY

- pilot plunger

1шт.

9

238-5019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 5, 75 Duro

-019, 70 Duro, .801" ID x .070" Thk

1шт.

10

A55911

O-RING,0.807" ID

- small

1шт.

11

N9768

BACK-UP RING,0.831mm ID x 0.939mm OD x 0.052mm

RING - backup, small O-ring

1шт.

12

S300250

SPRING

- poppet

1шт.

13

238-7113

O-RING,0.103" Thk x 0.549" ID, -113, Cl 7, 75 Duro

1шт.

14

S84196

BACK-UP RING,9/16" ID x 3/4" OD x 0.052"

- backup, poppet O-ring

1шт.

15

S300249

VALVE POPPET

POPPET - relief valve

1шт.

16

S300248

VALVE POPPET

SCREEN - poppet

1шт.

17

N9473

RING, SNAP

RING - retaining, screen

1шт.

18

NSS

NOT SOLD SEPARAT

BODY - relief valve

1шт.

19

N8197

O-RING,1.006" ID x 1.116" OD x 0.055"

RING - backup, small O-ring, valve body

1шт.

20

238-6022

O-RING,0.07" Thk x 0.989" ID, -22, Cl 6, 90 Duro

Valve body -022, 90 Duro, .989" ID x .070" Thk

1шт.

21

238-6023

O-RING,0.07" Thk x 1.051" ID, -23, Cl 6, 90 Duro

Valve body -023, 90 Duro, 1.051" ID x .070" Thk

1шт.
