Запчасти Case 550E (8-36) - FOUR SPOOL CONTROL VALVE (08) - HYDRAULICS

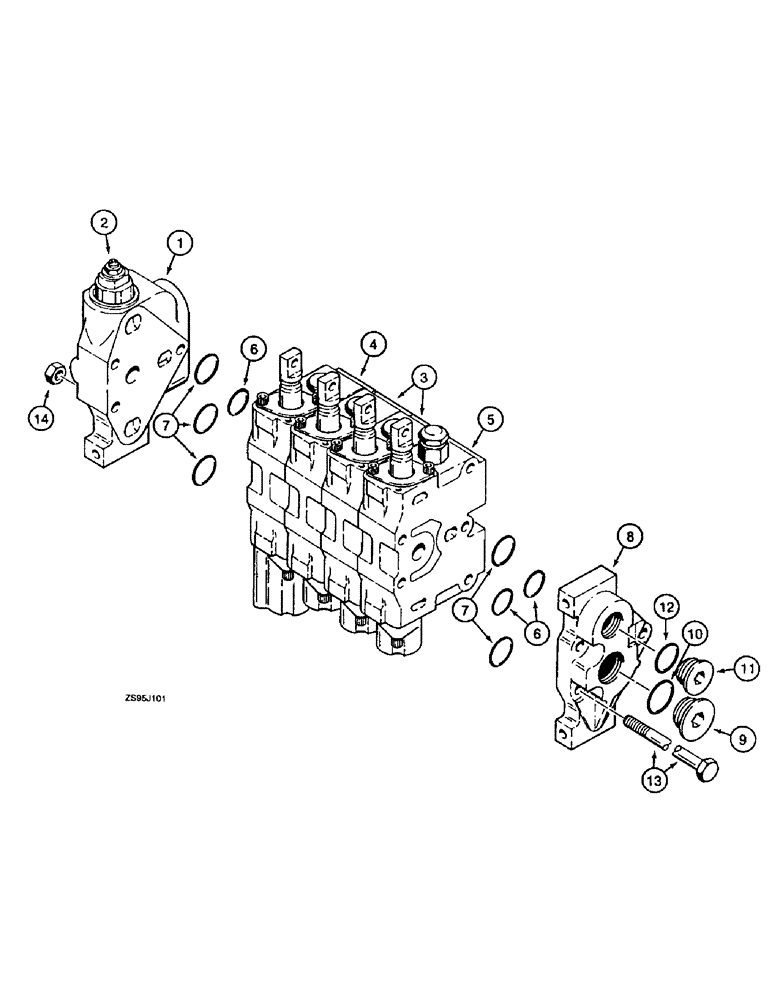

Схема запчастей Case 550E - (8-36) - FOUR SPOOL CONTROL VALVE (08) - HYDRAULICS
9
14
7
2
8
6
11
1
10
12
13
7
5
6
3
4

Артикул

Название

Примечание

Количество

R58221

VALVE

ASSEMBLY - equipment control, four spool

1шт.

1

N8942

VALVE BLOCK

SECTION - inlet-outlet

1шт.

2

N8191

VALVE

ASSEMBLY - main relief, parts list figure 8-38

1шт.

The pressure setting of this main relief valve may not be preset for your application, consult the 550E Service Manual for the correct setting.

1шт.

3

100802A1

KNIFE SECTION

SECTION ASSEMBLY - dozer tilt and angle, parts list figure 8-42

2шт.

4

100801A1

KNIFE SECTION

SECTION ASSEMBLY - dozer lift, parts list figure 8-40

1шт.

5

100803A1

KNIFE SECTION

SECTION ASSEMBLY - ripper, parts list figure 8-42

1шт.

6

238-6117

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

Between sections -117, 90 Duro, .799" ID x .103" Thk

6шт.

7

238-5119

O-RING,0.103" Thk x 0.924" ID, -119, Cl 5, 75 Duro

Between sections -119, 70 Duro, .924" ID x .103" Thk

14шт.

8

100825A1

COVER

ASSEMBLY - end

1шт.

9

218-5213

PLUG,Hex Soc, 1 3/16"-12 ORB

- hex socket, 1-3/16-12 inch O-ring boss

1шт.

10

237-6014

O-RING,0.116" Thk x 1.048" ID, -914, Cl 6, 90 Duro

14-1, 90 Duro, 1.048" ID x .116" Thk

1шт.

11

9841223

PLUG,1-1/16" - 12 ORB

1шт.

12

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

13

413-6152

BOLT,Hex, 3/8" - 16 x 9-1/2", Gr 5

- hex, 3/8 NC x 9-1/2 inch

3шт.

14

425-106

NUT,3/8"-16, Cl 5

3шт.

Выбрано товаров: 16
