Запчасти Case 550E (8-32) - EQUIPMENT CONTROL LEVERS AND LINKAGE, TWO CONTROL LEVERS - FOUR SPOOL VALVE (08) - HYDRAULICS

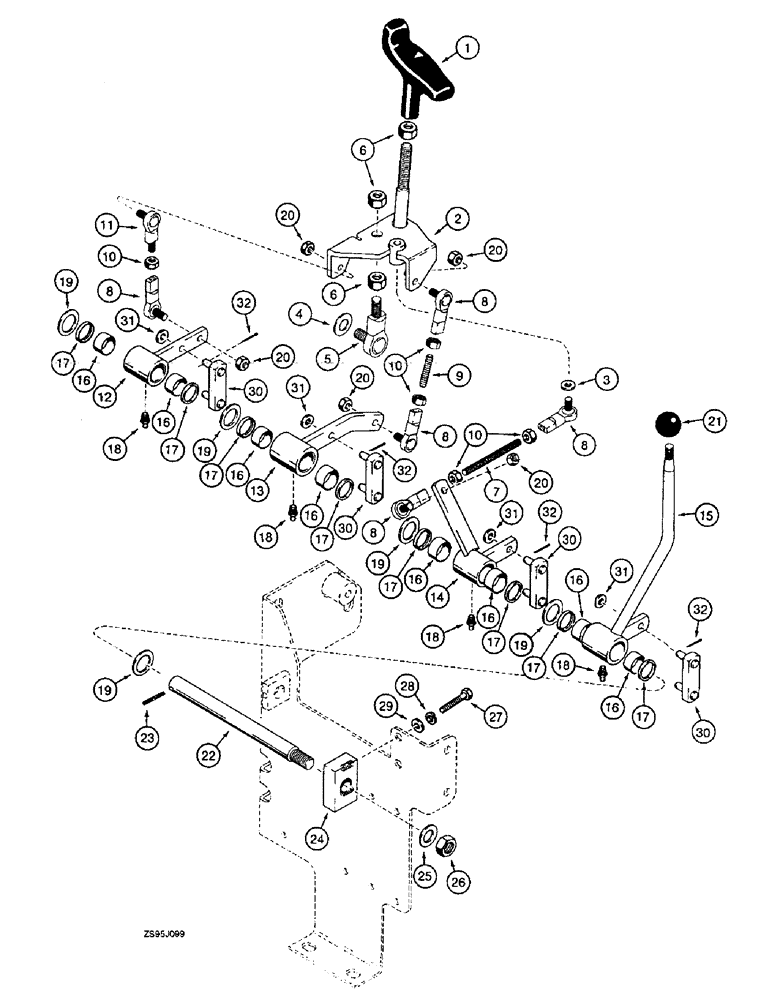

Схема запчастей Case 550E - (8-32) - EQUIPMENT CONTROL LEVERS AND LINKAGE, TWO CONTROL LEVERS - FOUR SPOOL VALVE (08) - HYDRAULICS
26
19
17
16
27
20
8
8
11
16
25
18
4
10
16
20
21
14
16
17
32
32
28
2
32
31
31
6
17
15
17
10
17
19
16
5
30
8
32
18
8
7
19
17
30
17
19
31
18
20
16
29
23
6
3
22
20
16
18
17
30
20
13
31
24
9
19
10
8
1
12
16
30

Артикул

Название

Примечание

Количество

R58221

VALVE

ASSEMBLY - equipment control, four spool, parts list figure 8-36, for mounting see figure 8-28

1шт.

1

R58490

HANDLE

- equipment control, T-grip

1шт.

2

106400A1

HANDLED SHAFT

LEVER - equipment control

1шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

5

A55558

BALL JOINT

JOINT - ball

1шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

3шт.

7

R58258

ROD

- threaded, 5/16 NF x 3-3/4 inch

1шт.

8

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - ball, female, 5/16 inch NF

5шт.

9

R56432

ROD,THREADED

ROD - threaded, 5/16 NF x 1-1/2 inch

1шт.

10

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

5шт.

11

R47939

ROD

JOINT - ball, male, 5/16 inch NF, male

1шт.

12

R58255

ROCKER

LEVER ASSEMBLY - lift, spool to shaft, also includes items 16, 17, and 18

1шт.

13

R58252

ROCKER

LEVER ASSEMBLY - tilt, spool to shaft, also includes items 16, 17, and 18

1шт.

14

R58246

ROCKER

LEVER ASSEMBLY - angle, spool to shaft, also includes items 16, 17, and 18

1шт.

15

R58249

LEVER

ASSEMBLY - auxiliary control

1шт.

16

L31166

NEEDLE BEARING

- roller

2шт.

17

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

19

R58209

SPACER

- nylon

5шт.

20

232-4605

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

5шт.

21

70213

KNOB

- control lever

1шт.

22

R58256

SHAFT

- control linkage

1шт.

23

438-31224

PIN,3/16" x 1 1/2", Coiled

1шт.

24

R58257

BLOCK

- shaft mounting

1шт.

25

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

26

231-24410

LOCK NUT,5/8"-18, GB

NUT - hex, self-locking, 5/8 inch NF

1шт.

27

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

28

492-11038

LOCK WASHER,3/8"

2шт.

29

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

30

139345A1

POWER ARM

LINK - control valve, Serial Range: spool-levers

4шт.

31

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

8шт.

32

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

8шт.

Выбрано товаров: 33
