Запчасти Case 550E (8-30) - EQUIPMENT CONTROL LEVER AND LINKAGE, ONE CONTROL LEVER - THREE SPOOL VALVE (08) - HYDRAULICS

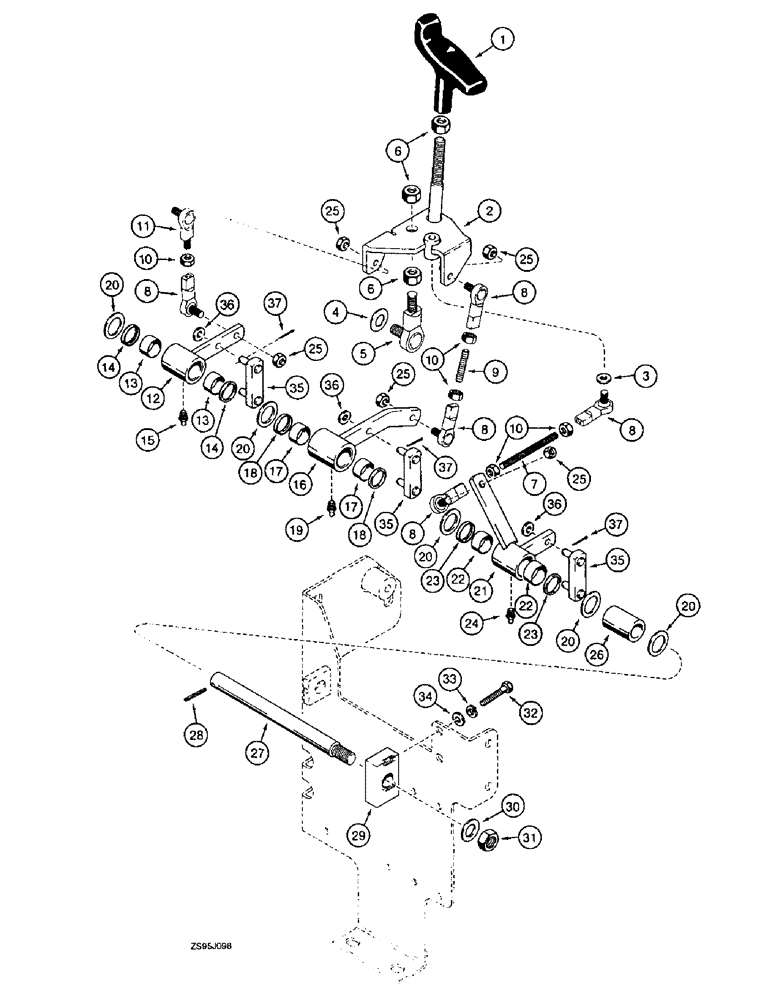

Схема запчастей Case 550E - (8-30) - EQUIPMENT CONTROL LEVER AND LINKAGE, ONE CONTROL LEVER - THREE SPOOL VALVE (08) - HYDRAULICS
32
8
10
17
9
4
27
25
33
34
12
3
25
36
22
11
15
20
24
35
36
26
30
8
14
19
14
8
35
37
2
13
23
22
35
21
37
7
1
10
18
29
25
5
25
20
8
28
25
20
36
13
18
10
6
17
8
6
20
16
37
31
23
20

Артикул

Название

Примечание

Количество

R58220

VALVE

ASSEMBLY - equipment control, three spool, parts list figure 8-34, for mounting see figure 8-28

1шт.

1

R58490

HANDLE

- equipment control, T-grip

1шт.

2

106400A1

HANDLED SHAFT

LEVER - equipment control, lift, tilt and angle

1шт.

3

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

4

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

5

A55558

BALL JOINT

JOINT - ball

1шт.

6

425-158

JAM NUT,Jam, 1/2"-20, G5

3шт.

7

R58258

ROD

- threaded, 5/16 NF x 3-3/4 inch

1шт.

8

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT - ball, female, 5/16 inch NF

5шт.

9

R56432

ROD,THREADED

ROD - threaded, 5/16 NF x 1-1/2 inch

1шт.

10

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

5шт.

11

R47939

ROD

JOINT - ball, male, 5/16 inch NF, male

1шт.

R58255

ROCKER

LEVER ASSEMBLY - lift, Serial Range: spool-shaft

1шт.

12

NSS

NOT SOLD SEPARAT

LEVER - lift

1шт.

13

L31166

NEEDLE BEARING

- roller

2шт.

14

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil

2шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

R58252

ROCKER

LEVER ASSEMBLY - tilt, Serial Range: spool-shaft

1шт.

16

NSS

NOT SOLD SEPARAT

LEVER - tilt

1шт.

17

L31166

NEEDLE BEARING

- roller

2шт.

18

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil

2шт.

19

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

20

1960614C1

WASHER,20mm ID x 35mm OD x 1.58mm Thk

SPACER - nylon

5шт.

R58246

ROCKER

LEVER ASSEMBLY - angle, Serial Range: spool-shaft

1шт.

21

NSS

NOT SOLD SEPARAT

LEVER - angle

1шт.

22

L31166

NEEDLE BEARING

- roller

2шт.

23

65457C1

SEAL,19.04mm ID x 25.5mm OD x 3.17mm Thk

- oil

2шт.

24

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

25

232-4605

LOCK NUT,5/16"-24, GC

NUT, LOCK, 5/16"-24, GC

5шт.

26

R58344

SPACER

-

1шт.

27

R58256

SHAFT

- control linkage

1шт.

28

438-31224

PIN,3/16" x 1 1/2", Coiled

1шт.

29

R58257

BLOCK

- shaft mounting

1шт.

30

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

1шт.

31

231-24410

LOCK NUT,5/8"-18, GB

NUT - hex, self-locking, 5/8 inch NF

1шт.

32

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

33

492-11038

LOCK WASHER,3/8"

2шт.

34

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

35

139345A1

POWER ARM

LINK - control valve, Serial Range: spool-levers

3шт.

36

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

6шт.

37

432-612

COTTER PIN,3/32" x 3/4"

PIN , SPLIT (COTTER), 3/32" x 3/4"

6шт.

Выбрано товаров: 41
