Запчасти Case 550E (8-28) - EQUIPMENT CONTROL VALVE AND MOUNTING (08) - HYDRAULICS

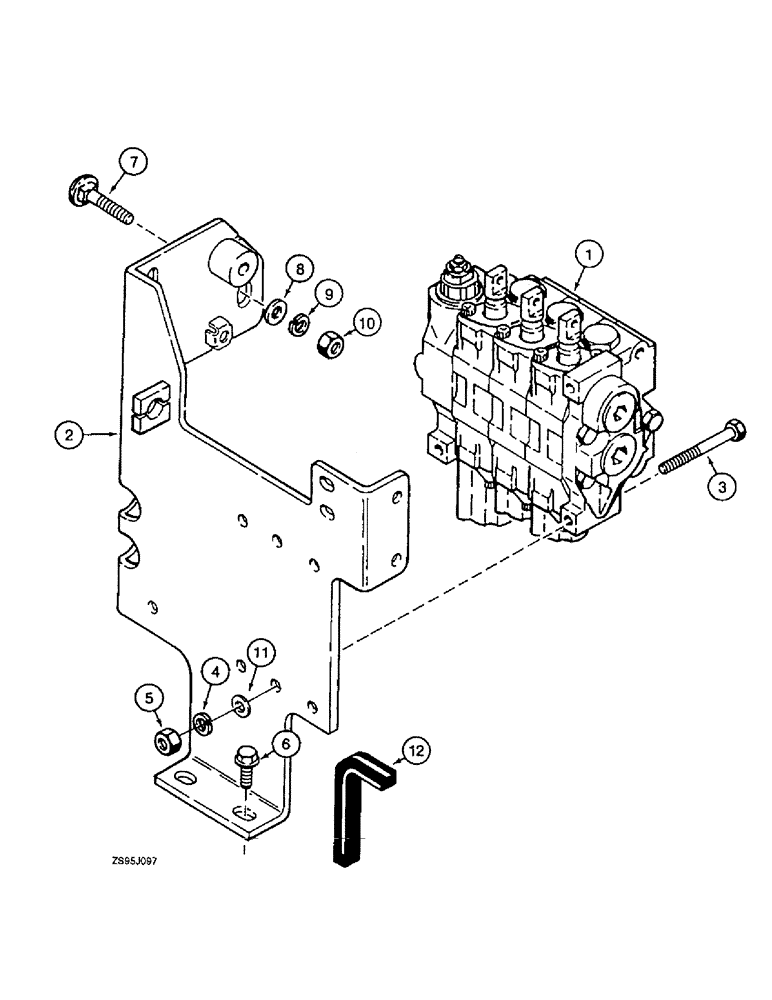

Схема запчастей Case 550E - (8-28) - EQUIPMENT CONTROL VALVE AND MOUNTING (08) - HYDRAULICS
3
10
8
2
7
1
4
5
11
6
12
9

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - equipment control, for correct assembly and components, see figure 8-34 or 8-36

1шт.

2

R58239

BRACKET

- control valve mounting

1шт.

3

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

3шт.

4

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

5

425-105

NUT,5/16"-18, G5

3шт.

6

160-106

BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

2шт.

7

434-820

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

BOLT - carriage, 1/2 NC x 1-1/4 inch

2шт.

8

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

3шт.

12

D55218

SEAL, GLASS,76mm L

TRIM - edge, 3 inch (76 mm) long, cut from F42827

1шт.

F42827

TRIM,2946.4mm L

TRIM - edge, bulk, 116 inch (2946 mm) long

1шт.

Выбрано товаров: 13
