Запчасти Case 550E (8-24) - DOZER ANGLE CYLINDER (08) - HYDRAULICS

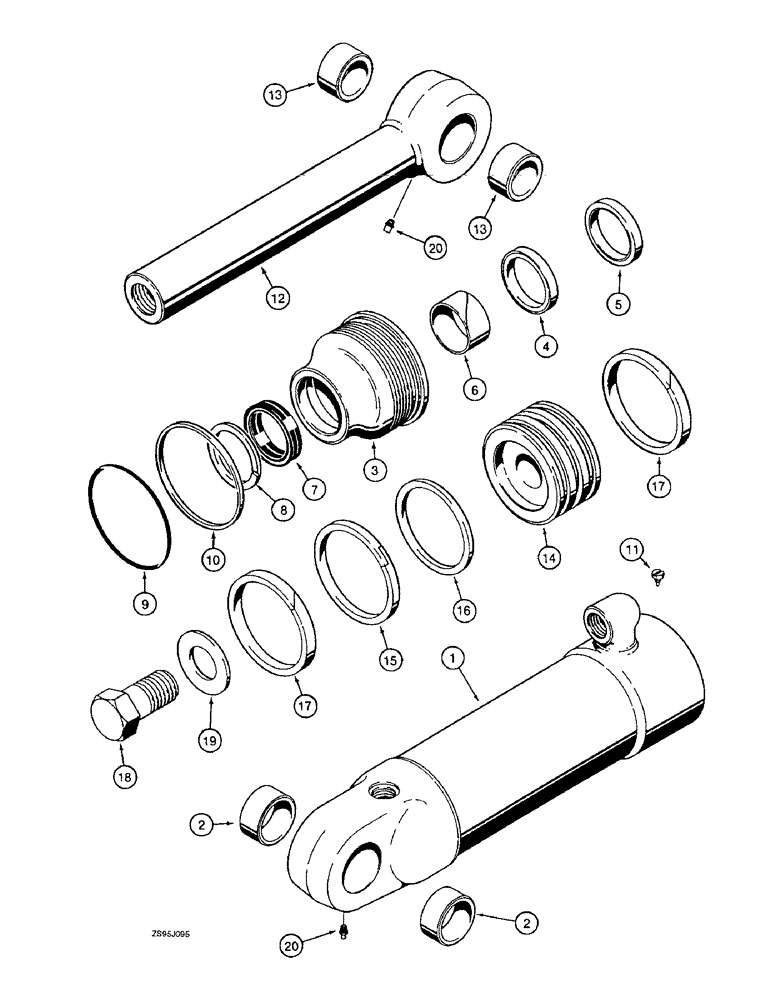

Схема запчастей Case 550E - (8-24) - DOZER ANGLE CYLINDER (08) - HYDRAULICS
3
20
15
10
17
19
5
2
18
16
1
17
6
2
12
13
11
20
14
7
8
9
13
4

Артикул

Название

Примечание

Количество

140146A1

CYLINDER ASSY.

CYLINDER ASSEMBLY - 4 (102) ID x 8-5/16 inch (211 mm) stroke, dozer angle

2шт.

1

140147A1

HYD CYL SLEEVE

TUBE ASSEMBLY - cylinder

1шт.

2

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- tube

2шт.

3

1543003C1

JACK HEAD

GLAND - cylinder

1шт.

4

NSS

NOT SOLD SEPARAT

RETAINER - gland

1шт.

5

D95144

WIPER SEAL,50.77mm ID x 63.52mm OD x 7.92mm Thk

Wiper - piston rod

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

6

G101533

WEAR RING,Split, 50.8mm ID x 53.87mm OD x 25.15mm Thk

BUSHING - center

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL - U-cup, for service order 1543273C1 seal kit

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

8

G107997

SEAL,50.37mm ID x 63.68mm OD x 3.05mm Thk

- buffer

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

9

238-5242

O-RING,0.139" Thk x 3.984" ID, -242, Cl 5, 75 Duro

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

10

G32176

BACK-UP RING,101.22mm ID x 107.32mm OD x 1.4mm Thk

Gland O-Ring

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

11

276-2446

SELF-TAP SCREW,Hex Hd, #8 x 3/8"

SCREW - self-tapping, hex hd, No. 8 NC x 3/8 ", slotted

1шт.

12

1980295C1

ROD ASSY.

ROD ASSEMBLY - piston, 2 inch (51mm) diameter

1шт.

13

D32865

BUSHING,38.33mm ID x 47.63mm OD x 22.35mm L

- piston rod

2шт.

14

G100438

PISTON,100.89mm Bore, 32.8mm Rod, 50.7mm W

- cylinder

1шт.

15

G102285

SEAL,Locking, 98.55mm ID x 102.97mm OD x 6.96mm Thk

- piston

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

16

G100440

RING,Square, 5.28mm Thk x 88.01mm ID

- backup, piston seal

1шт.

Part of Seal Kit P/N 1543273C1

1шт.

17

G100448

RING,101.6mm OD, Ext

- wear

2шт.

Part of Seal Kit P/N 1543273C1

1шт.

18

28-2044

BOLT,Hex, 1-1/4" - 12 x 2-3/4", Gr 8

- Hex, 1-1/4"-12 NF x 2-3/4", G8

1шт.

19

G104989

WASHER,34.29mm ID x 60.3mm OD x 4.78mm Thk

- flat, hardened, special

1шт.

20

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch, base end of cylinder

2шт.

1543273C1

SEAL KIT

KIT - seal, Includes: Ref. 5-10 and 15-17 and an instruction sheet

1шт.
