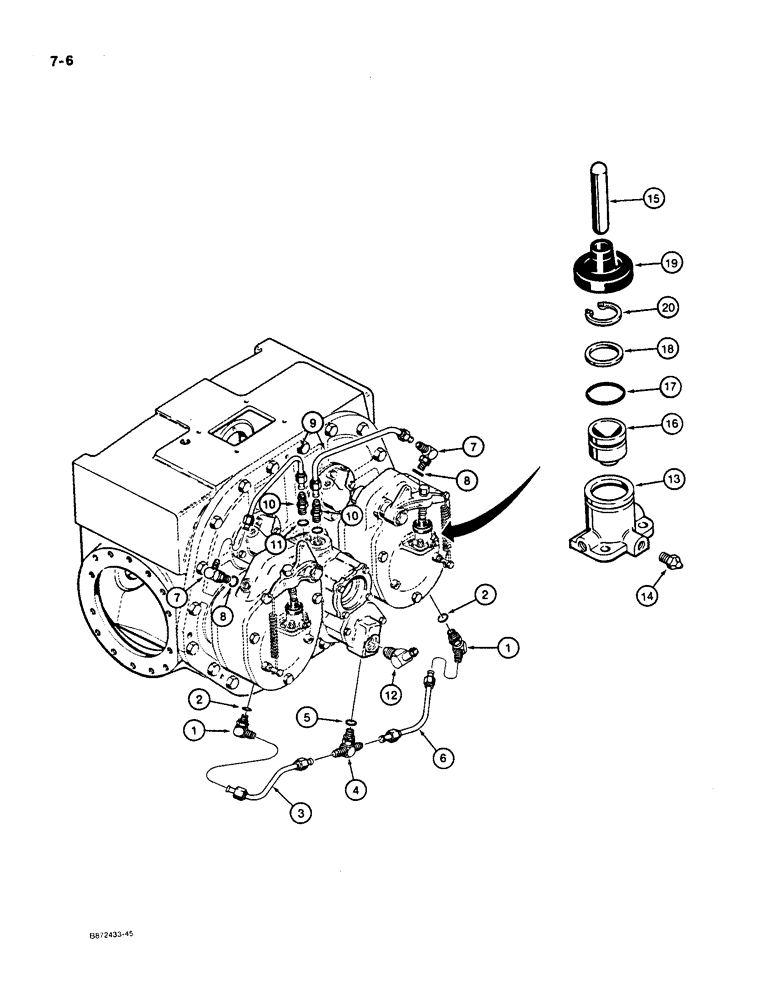

Запчасти Case 550 (7-06) - TRANSMISSION BRAKE LUBRICATION LINES AND, BRAKE CYLINDER ASSEMBLY (07) - BRAKES

1

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss, Includes: Ref. 2

2шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

G104726

TUBE,0.5" OD x 7.65, 2.32" L

- to right-hand brake

1шт.

4

218-5183

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch adj O-ring boss branch x flare, brake supply, Includes: Ref. 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

6

G104725

TUBE

- to left-hand brake

1шт.

7

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss, Includes: Ref. 8

2шт.

8

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

9

G103745

TUBE,0.5" OD x 9.58, 3.6" L

- brake return, to range gear housing

2шт.

10

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 11

2шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

12

217-325

FITTING

ELBOW - 45 degree, adj, 5/8 stem end x 1-1/16-12 inch O-ring boss, hydraulic oil return from radiator

1шт.

1348800C1

MASTER CYLINDER

CYLINDER ASSEMBLY - brake, use transmission fluid or B91244 brake oil (for identification there is a green paint mark on the cylinder body above the breather), was G109412, Includes: Ref. 13 - 20

2шт.

13

NSS

NOT SOLD SEPARAT

BODY - cylinder assembly

1шт.

14

A41491

BLEEDER,1/4" - 28 x 23.37mm

BREATHER - cylinder

1шт.

15

A41489

ROD

- push, cylinder actuating

1шт.

16

G109585

PISTON

- cylinder

1шт.

17

G109785

O-RING,0.859" ID x 1.137" OD

- piston, green

1шт.

18

A42877

RING

- backup, piston O-ring

1шт.

19

1348801C1

BELLOWS

BOOT - brake cylinder, was G103629

1шт.

20

A30975

SNAP RING,1.188", Int, #118

piston 1.188", Int, #118

1шт.
