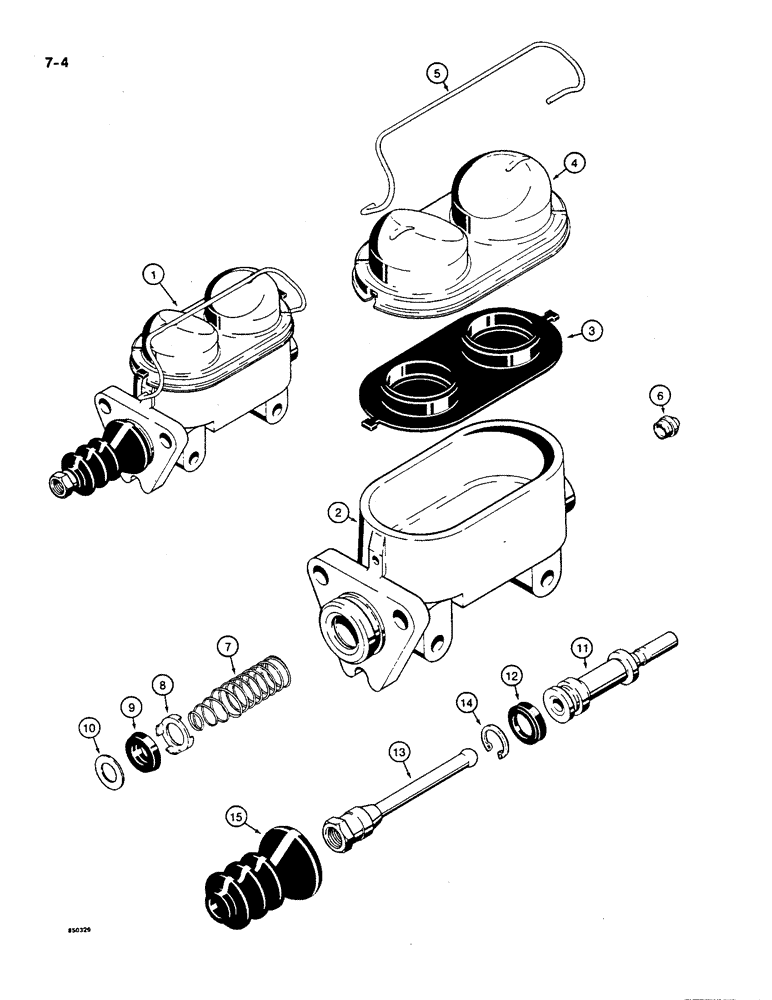

Запчасти Case 550 (7-04) - BRAKE MASTER CYLINDER ASSEMBLY (07) - BRAKES

1

D131596

MASTER CYLINDER

CYLINDER ASSEMBLY - brake master, Includes: Ref. 2 - 15

2шт.

2

NSS

NOT SOLD SEPARAT

RESERVOIR - master cylinder

1шт.

3

N6832

GASKET

- diaphragm, cover

1шт.

4

N6833

COVER

- filler cap

1шт.

5

N6831

BAIL

RETAINER - cover

1шт.

6

N6825

SEAT

- tube

1шт.

N6823

PISTON

ASSEMBLY - master cylinder, Includes: Ref. 7 - 12

1шт.

7

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

8

NSS

NOT SOLD SEPARAT

SEAT - spring

1шт.

9

N6830

CUP

- seal, inner

1шт.

10

N6828

GUARD

WASHER - flat, cup support

1шт.

11

NSS

NOT SOLD SEPARAT

PISTON - master cylinder

1шт.

12

N6829

SEAL

CUP - seal, double lip, outer

1шт.

13

L32137

ROD

- push

1шт.

14

A42256

SNAP RING,0.901", Int, #90

piston 0.901", Int, #90

1шт.

15

N8819

BOOT

- push rod

1шт.
