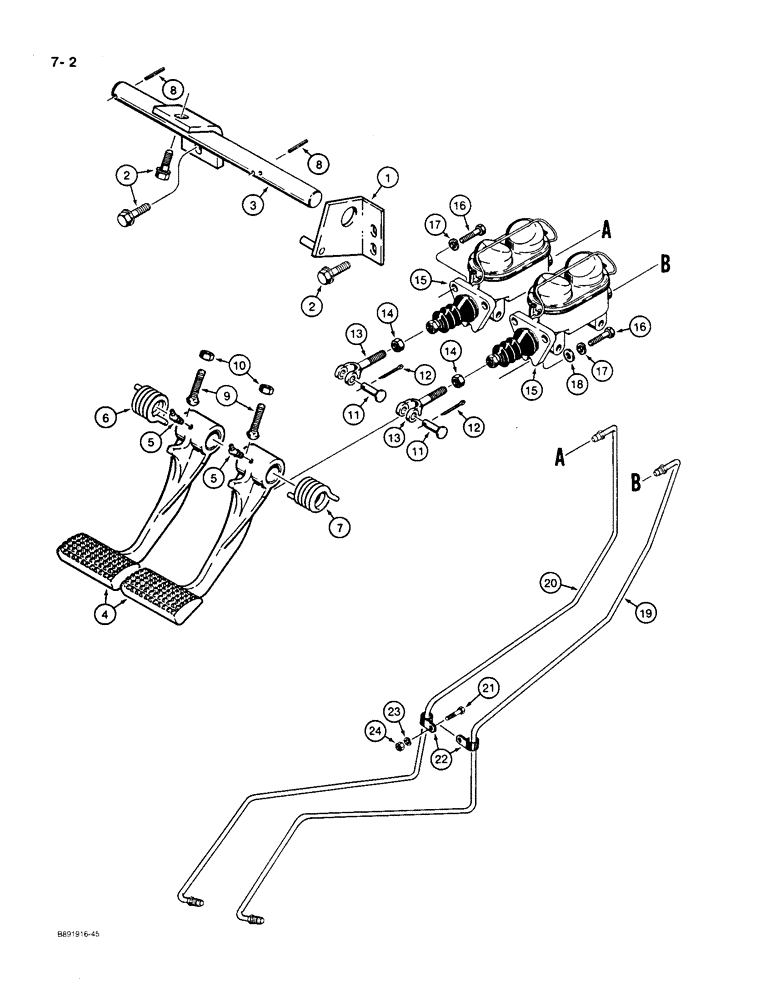

Запчасти Case 550 (7-02) - BRAKE PEDALS, MASTER CYLINDERS, AND, LINES TO TRANSMISSION CONTROL VALVE (07) - BRAKES

1

R54313

SUPPORT

BRACKET - brake pedal shaft retaining

1шт.

2

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

4шт.

3

R54302

SUPPORT

SHAFT - brake pedals

1шт.

4

R46701

PEDAL

- brake

2шт.

5

219-40

LUBE NIPPLE,65 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 65 degree, 1/8 PT x 55/64 inch long

2шт.

6

R49035

SPRING

- pedal, left-hand

1шт.

7

R49036

SPRING

- pedal, right-hand

1шт.

8

138-140

LOCK PIN,1/4" x 1 3/4", Slotted

PIN, 1/4" x 1 3/4", Slotted

2шт.

9

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

- carriage, 1/2 NC x 2-1/2 inch, pedal stop

2шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

11

141-64

CLEVIS PIN,7/16" x 1.190"

2шт.

12

132-320

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

2шт.

13

R47412

FORK

CLEVIS - brake pedal to master cylinder

2шт.

14

425-157

JAM NUT,Jam, 7/16"-20, G5

2шт.

15

D131596

MASTER CYLINDER

CYLINDER ASSEMBLY - master, brake, parts list Figure 7-4

2шт.

16

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

6шт.

17

492-11038

LOCK WASHER,3/8"

6шт.

18

D41740

WASHER

- flat, 3/8 inch, hardened, lower slot of master cylinder only

2шт.

19

R53305

TUBE ASSY.,0.187" OD

TUBE - 3/16 inch, to transmission control valve, right-hand, Serial Range: -JAK001398

1шт.

20

R53303

PIPE,0.187" OD

TUBE - 3/16 inch, to transmission control valve, left-hand, Serial Range: -JAK001398

1шт.

21

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch, Serial Range: -JAK001398

1шт.

22

S79579

CLAMP

- for 3/16 inch brake tubes, to firewall, Serial Range: -JAK001398

2шт.

23

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2", Serial Range: -JAK001398

1шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5, Serial Range: -JAK001398

1шт.

19

R57687

TUBE,0.31" OD

- 5/16 inch, to transmission control valve, right-hand, Start Serial: JAK001398

1шт.

20

R57685

TUBE,0.31" OD

- 5/16 inch, to transmission control valve, left-hand, Start Serial: JAK001398

1шт.

21

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch, Start Serial: JAK001398

1шт.

22

51200191

CLAMP

- for 5/16 inch brake tubes to firewall, Start Serial: JAK001398

2шт.

23

492-11038

LOCK WASHER,3/8"

, Start Serial: JAK001398

1шт.

24

425-106

NUT,3/8"-16, Cl 5

, Start Serial: JAK001398

1шт.
