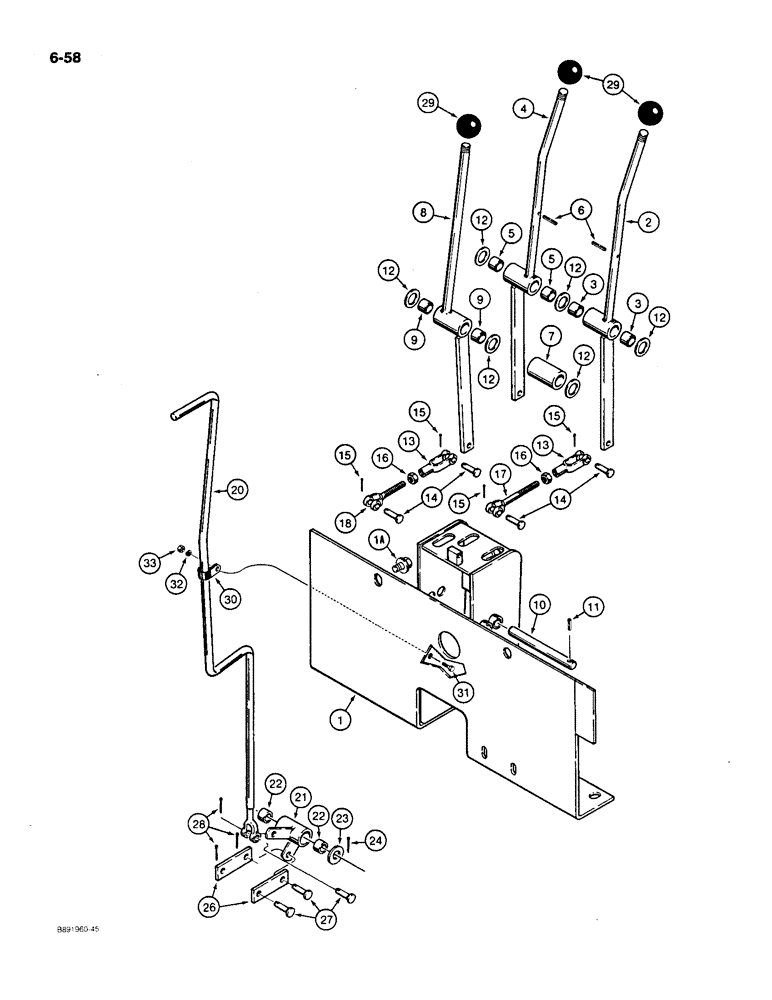

Запчасти Case 550 (6-58) - TRANSMISSION CONTROL TOWER, LEVERS, AND MOUNTING (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
R50764
CARRIER
TOWER - transmission control, with heel plate, includes decals
1шт.
1a
121-428
FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd
BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd
2шт.
2
R40021
LEVER ASSY.
LEVER - control, track speed, right-hand, Includes: Ref. 3
1шт.
3
R31144
BUSHING
- control lever
2шт.
4
R40019
LEVER ASSY.
LEVER - control, track speed, left-hand, Includes: Ref. 5
1шт.
5
R31144
BUSHING
- control lever
2шт.
6
138-96
LOCK PIN,3/16" x 1", Slotted
PIN, 3/16" x 1", Slotted
2шт.
7
F44507
TUBE,0.76" ID x 1" OD x 2.07" L
SPACER - forward-reverse track control lever
1шт.
8
R40016
LEVER ASSY.
LEVER - control, forward and reverse, Includes: Ref. 9
1шт.
9
R31144
BUSHING
- control lever
2шт.
10
D34898
SHAFT
- control levers
2шт.
11
138-319
LOCK PIN,3/16" x 1 1/4", Slotted
PIN, 3/16" x 1 1/4", Slotted
2шт.
13
H44198
YOKE
CLEVIS - adjustable, 5/16 inch NF
3шт.
14
141-53
CLEVIS PIN,5/16" x .940"
plated 5/16" x .940"
6шт.
15
132-320
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
6шт.
17
G10928
YOKE
ROD - clevis, long, track speed control levers
2шт.
18
D34885
YOKE
ROD - clevis, short, forward-reverse control lever
1шт.
20
R54422
LEVER
- control, hi-lo range
1шт.
21
R53704
LEVER ASSY.
BELLCRANK - hi-lo range, Includes: Ref. 22
1шт.
22
R31144
BUSHING
- bellcrank
2шт.
23
195-541
WASHER,5/8", SAE
- flat, 21/32 x 1-5/16 x 3/32 inch, lever retaining
1шт.
24
132-318
COTTER PIN,5/32" x 1"
5/32" x 1"
1шт.
26
R53701
LINK
- bellcrank to transmission range selector shaft
2шт.
27
141-54
CLEVIS PIN,3/8" x 1 1/16"
3шт.
28
132-320
COTTER PIN,3/32" x 3/4"
PIN, SPLIT (COTTER), 3/32" x 3/4"
3шт.
29
D49996
KNOB
- control lever
3шт.
30
D128685
CLAMP
- transmission range control lever
1шт.
31
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
- hex, 5/16 NC x 3/4 inch
1шт.
33
425-105
NUT,5/16"-18, G5
- hex, 5/16 inch NC
1шт.
Выбрано товаров: 32
