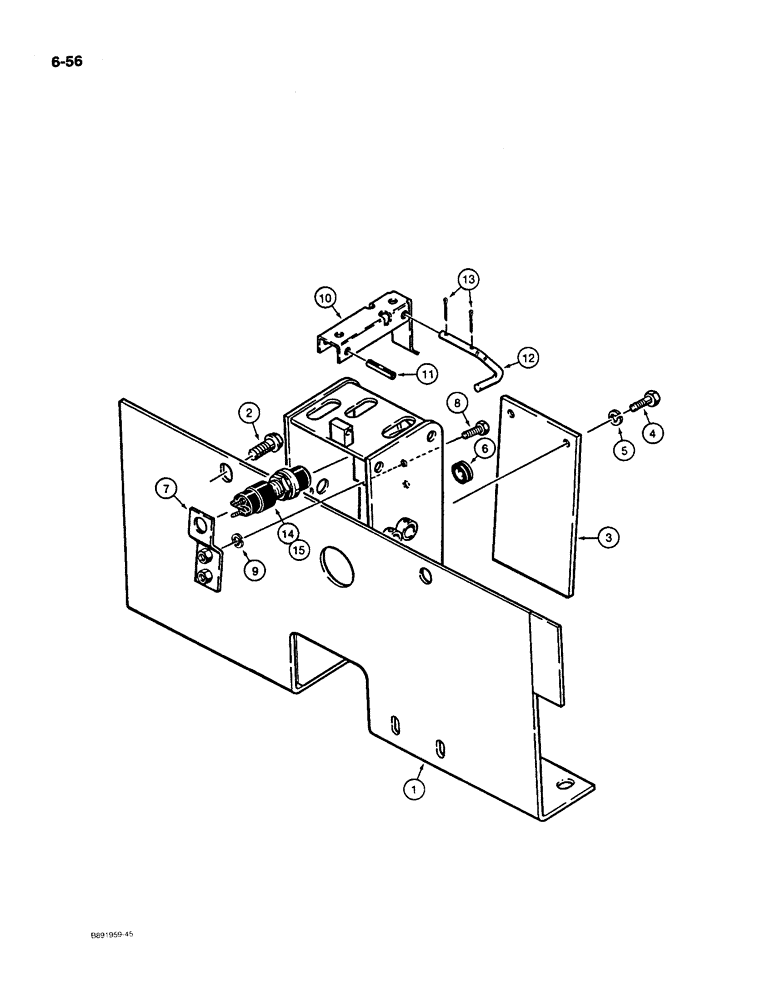

Запчасти Case 550 (6-56) - TRANSMISSION CONTROL TOWER, STARTER SWITCH, AND LOCKUP (06) - POWER TRAIN

1

R50764

CARRIER

TOWER - transmission control, with heel plate, includes decals

1шт.

2

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

3

R47459

COVER

- control tower, lower front

1шт.

4

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

5

492-11038

LOCK WASHER,3/8"

2шт.

6

D35078

GROMMET,1 1/2" ID x 1 3/4" Groove Dia

- control tower, wiring harness from starter switch

1шт.

7

R51410

BRACKET

- starter switch mounting

1шт.

8

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

10

R48625

COVER

- starter switch

1шт.

11

138-137

LOCK PIN,1/4" x 1 3/8", Slotted

PIN - roll, 1/4 x 3/8 inch

1шт.

12

R47853

LOCKING DEVICE

LOCK - starter switch cover

1шт.

13

132-328

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

2шт.

14

S241920

SWITCH

- starter, push button

1шт.

15

B17425

LOCTITE

SEALANT - pipe threads, with Teflon, Loctite No. 92, 50 ml tube, use to seal the rubber boot of Ref. 14 switch

1шт.
