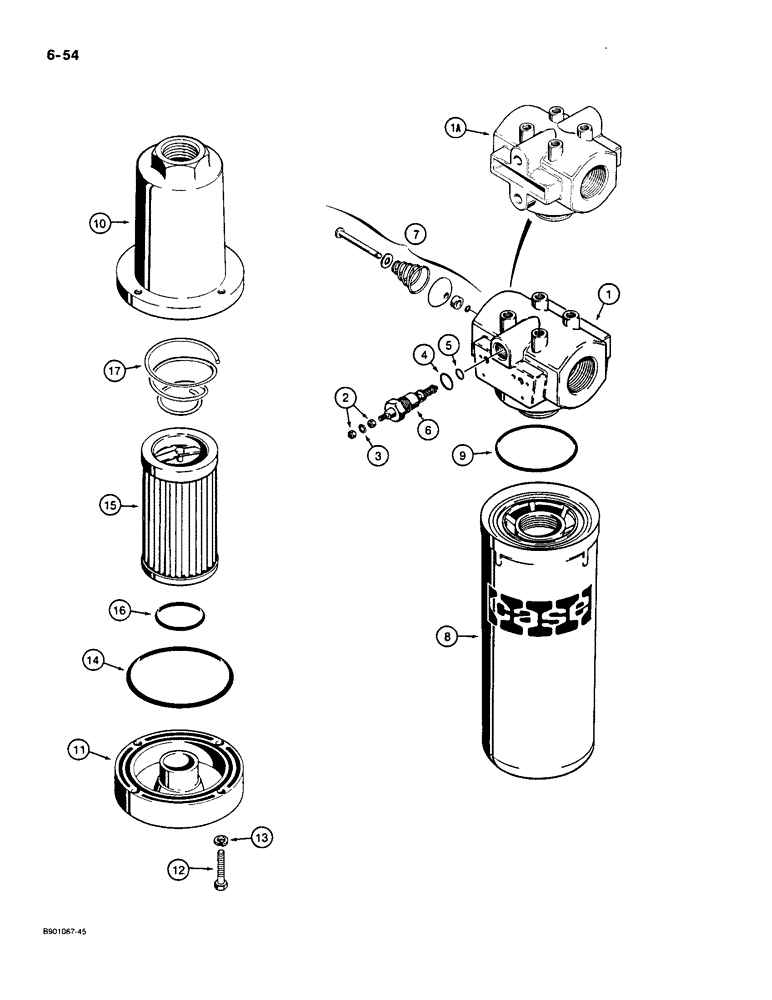

Запчасти Case 550 (6-54) - HYDRAULIC OIL FILTERS (06) - POWER TRAIN

R50518

FILTER

ASSEMBLY - transmission oil and equipment circuit oil, R50518 equipment circuit and transmission oil filter, R48993 transmission oil filter, Includes: Ref. 1 - 9, Serial Range: -JAK0013968

1шт.

R48993

FILTER

ASSEMBLY - transmission oil, R50518 equipment circuit and transmission oil filter, R48993 transmission oil filter, Includes: Ref. 1 - 9, Start Serial: JAK0013968

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD - R48993 filter

1шт.

1a

NSS

NOT SOLD SEPARAT

HEAD - R50518 filter

1шт.

N7929

INDICATOR

ASSEMBLY - restriction, R48993 filter only transmission oil filter, Includes: Ref. 2 - 6

1шт.

2

129-667

NUT,#10-32, LH

R50518 equipment circuit and transmission oil filter, R48993 transmission oil filter #10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, , R50518 equipment circuit and transmission oil filter, R48993 transmission oil filter Int Tooth, #10

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk, Small, R50518 equipment circuit and transmission oil filter, R48993 transmission oil filter

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR - restriction, R50518 equipment circuit and transmission oil filter, R48993 transmission oil filter

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - bypass, filter, R50518 equipment circuit and transmission oil filter, R48993 transmission oil filter

1шт.

N9025

HYDRAULIC OIL FILTER

ELEMENT - filter, replacement, R50518 equipment circuit and transmission oil filter, R48993 transmission oil filter, Includes: Ref. 8 and 9

1шт.

8

NSS

NOT SOLD SEPARAT

ELEMENT - filter, R50518 equipment circuit and transmission oil filter, R48993 transmission oil filter

1шт.

9

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

- element, R50518 equipment circuit and transmission oil filter, R48993 transmission oil filter

1шт.

D35144

FILTER

FILTER ASSEMBLY - transmission oil, suction line, D35144, Includes: Ref. 10 - 17

1шт.

10

D37033

HOUSING

- filter, D35144 transmission suction line

1шт.

11

D37034

HEAD

- filter, D35144 transmission suction line

1шт.

12

113-5

BOLT,Hex, 1/4" - 20 x 1-1/2", Gr 5

Hex, 1/4"- 20 x 1 1/2", G5, D35144 Transmission suction line filter

4шт.

13

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, , D35144 transmission suction line filter 1/4"

4шт.

14

D21006

O-RING,0.125" Thk x 3.125" ID, 70 Duro

0-RING - housing, D35144 transmission suction line filter

1шт.

15

D37035

FILTER, ELEMENT

ELEMENT - filter, D35144 transmission suction line, Includes: Ref. 16

1шт.

16

238-5218

O-RING,0.139" Thk x 1.234" ID, -218, Cl 5, 75 Duro

Element, D35144 transmission suction line filter -218, 70 Duro, 1.234" ID x .139" Thk

1шт.

17

D37036

SPRING

- element, D35144 transmission suction line filter

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk, R50518 equipment circuit and transmission oil filter, R48993 transmission oil filter

1шт.
