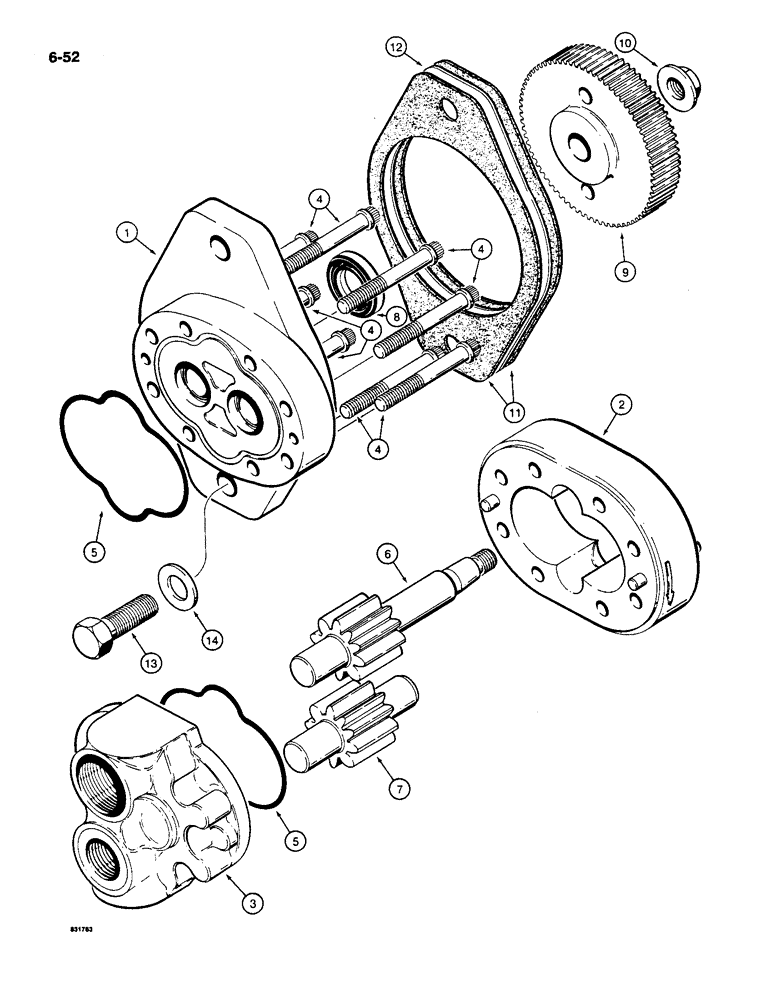

Запчасти Case 550 (6-52) - TRANSMISSION CHARGING PUMP ASSEMBLY, PUMP MOUNTING AND DRIVE GEAR PRIOR TO P.I.N. JAK0013968 (06) - POWER TRAIN

R48598

PUMP

ASSEMBLY - transmission charging, Includes: Ref. 1 - 8

1шт.

1

N8886

COVER

- drive shaft end

1шт.

2

N8887

BODY

HOUSING - gears

1шт.

3

N8885

COVER

- port end

1шт.

4

166-33

12 PT SCREW,Flg, 5/16" - 18 x 2 3/4", Gr 8

BOLT - Ferry, 5/16 NC x 2-3/4 inch, grade 8

8шт.

5

H758599

O-RING,2.989" ID x 3.129" OD

- covers

2шт.

6

N8889

GEAR

- drive, pump

1шт.

7

N8888

GEAR

- driven, pump

1шт.

8

H83733

SEAL

- drive gear shaft

1шт.

9

J905606

PINION

GEAR - pump drive

1шт.

Early models used a 2 piece drive gear. P/N J905596 hub and P/N J925617 gear. Both have been replaced by P/N J905606 that subs to P/N J924186.

1шт.

10

J904828

NUT

- special, flange, pump shaft

1шт.

11

A77441

GASKET

- pump

2шт.

12

J902603

SHIM,103.5mm ID x 120mm OD x 1.52mm Thk

- pump mounting

1шт.

13

814-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

- hex, 12 mm - 1.75 x 35 mm

2шт.

14

196-15

WASHER,17/32" x 1 1/6" x .134"

- flat, 17/32 x 1-1/16 x 1/8 inch, hardened

2шт.
