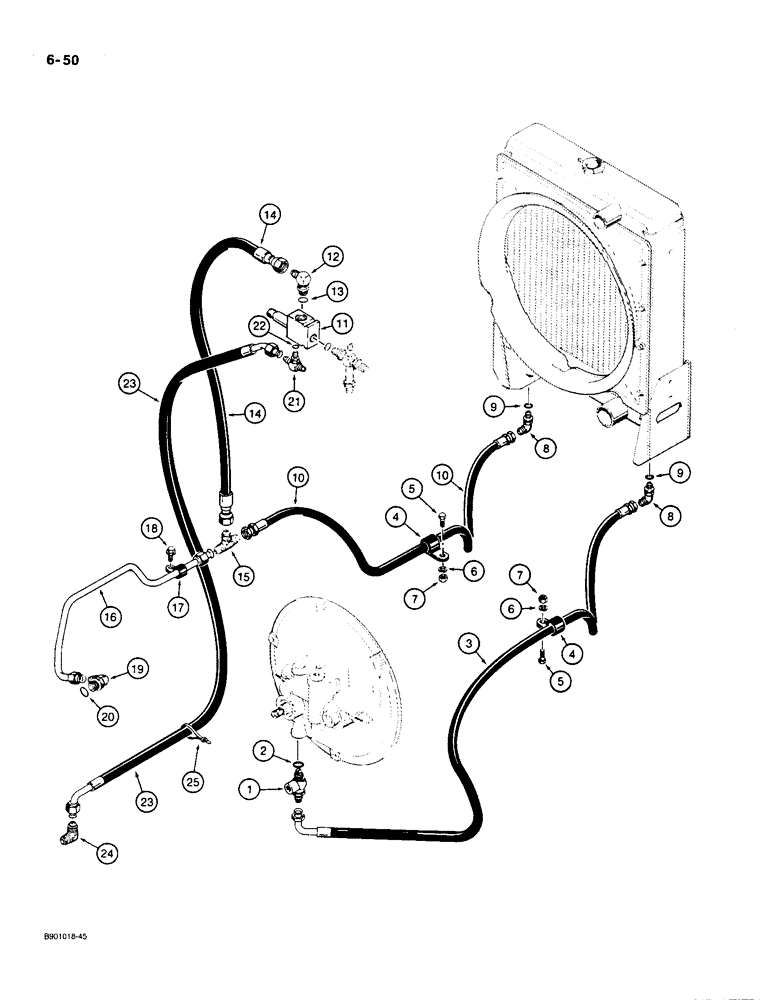

Запчасти Case 550 (6-50) - CRAWLER HYDRAULIC CIRCUIT, COOLING SYSTEM, P.I.N. JAK0013968 AND AFTER (06) - POWER TRAIN

1

R56771

FITTING

TEE - special, see Figure 4-12 for converter temperature gauge, Includes: Ref. 2

1шт.

Tee and connections were as pictured in the artwork. They have now been switched. Hose #3 now hooks into the middle of the tee, and the transmission converter connector temperature gauge screws into the bottom.

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

R57654

HOSE ASSY.

HOSE - 1446 mm long, Serial Range: converter-cooler

1шт.

4

R43738

CLAMP

- hose, medium closed, 1-1/8 inch diameter

2шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

6

492-11038

LOCK WASHER,3/8"

2шт.

7

425-106

NUT,3/8"-16, Cl 5

2шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree, 7/8-14 inch flare x adj O-ring boss, Incl. Ref. 9

2шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

10

R57655

HOSE ASSY.

HOSE - 1060 mm long, cooler return, at cooler

1шт.

11

R57597

VALVE

ASSEMBLY - pressure sensing, component parts not serviced separately, may order S301087 seal kit below for service of external O-rings

1шт.

12

218-5117

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 7/8-14 flare x 3/4-16 inch adj O-ring, Includes: Ref. 13

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

R57652

HOSE ASSY.

HOSE - 575 mm long, pressure sensing, Serial Range: valve-tee

1шт.

15

218-1580

TEE,37º, 1 1/16"-12 x 7/8"-14, Br

- 7/8-14 flare branch x 1-1/16-12 inch flare x flare

1шт.

16

R57505

TUBE ASSY.,19.04 mm OD

TUBE - cooler return at transmission

1шт.

17

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

- 3/4 inch diameter

1шт.

18

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

1шт.

19

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, 1-1/16-12 inch flare x adj O-ring boss, included with transmission assembly, see Figure 6-16, Refs. 34 and 35, Incl. Ref. 29

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 9/16-18 inch adj O-ring branch x flare x flare, Includes: Ref. 22

1шт.

23

R34863

HOSE

- 35 inch long, pressure sensing, Serial Range: valve-transmission

1шт.

24

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

25

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

S301087

SEAL KIT

KIT - seal repair, contains three O-rings and two backup rings which are not serviced separately

1шт.

22

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
