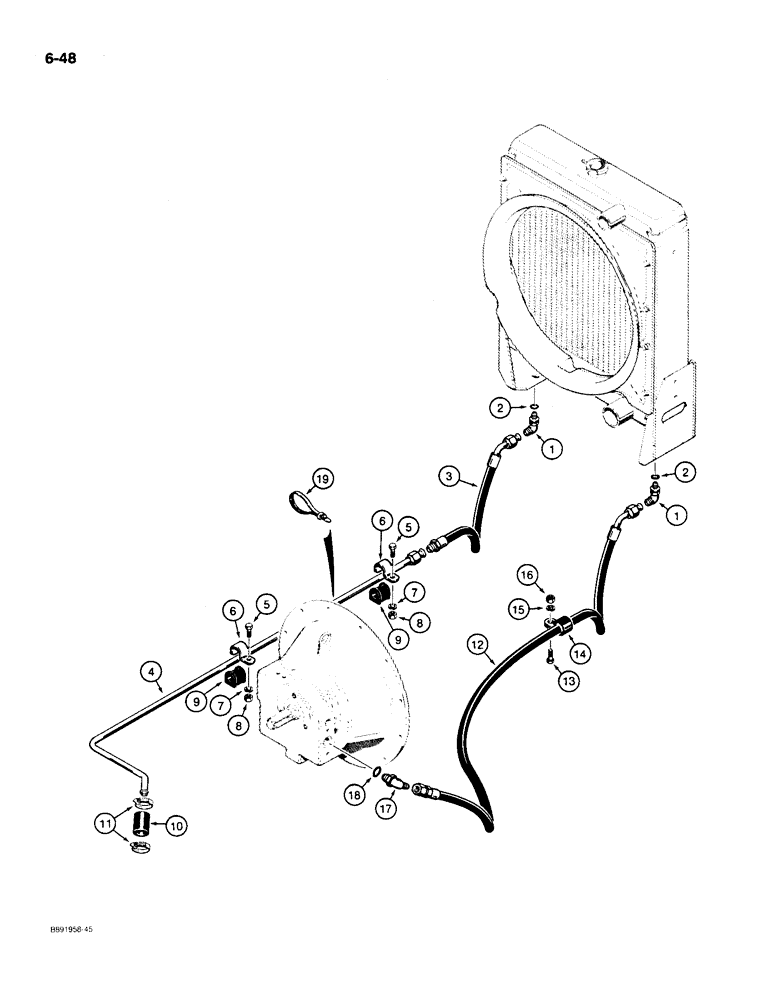

Запчасти Case 550 (6-48) - CRAWLER HYDRAULIC CIRCUIT, COOLING SYSTEM, PRIOR TO P.I.N. JAK0013968 (06) - POWER TRAIN

1

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

- 90 degree, adj, 3/4-16 flare x 7/8-14 inch O-ring boss, at radiator, Includes: Ref. 2

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

3

R40386

HOSE

- 14 inch long, to radiator, left-hand

1шт.

4

R51928

TUBE,0.625" OD

- return from transmission range gear housing

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

6

R40441

CLAMP

- tube

2шт.

7

492-11038

LOCK WASHER,3/8"

2шт.

8

425-106

NUT,3/8"-16, Cl 5

2шт.

9

D67296

GROMMET

INSULATOR - tube mounting

2шт.

10

R52766

HOSE

- 15.9 x 27.4 x 60 mm, cut from D125080 hose, to transmission range gear housing

2шт.

11

214-254

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP - hose, adjustable

2шт.

12

R40836

HOSE ASSY.

HOSE - 47 inch long, radiator to torque converter

1шт.

13

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

14

R21385

CLAMP

- P-style, hose

1шт.

15

492-11038

LOCK WASHER,3/8"

1шт.

16

425-106

NUT,3/8"-16, Cl 5

1шт.

17

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adj, 7/8-14 inch flare x O-ring boss, at torque converter, Incl. Ref 18

1шт.

18

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

19

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon beside torque converter

1шт.

D125080

HYDRAULIC HOSE,15.88 mm ID x 150.00 mm

15.90 mm ID x 150.00 mm

1шт.
