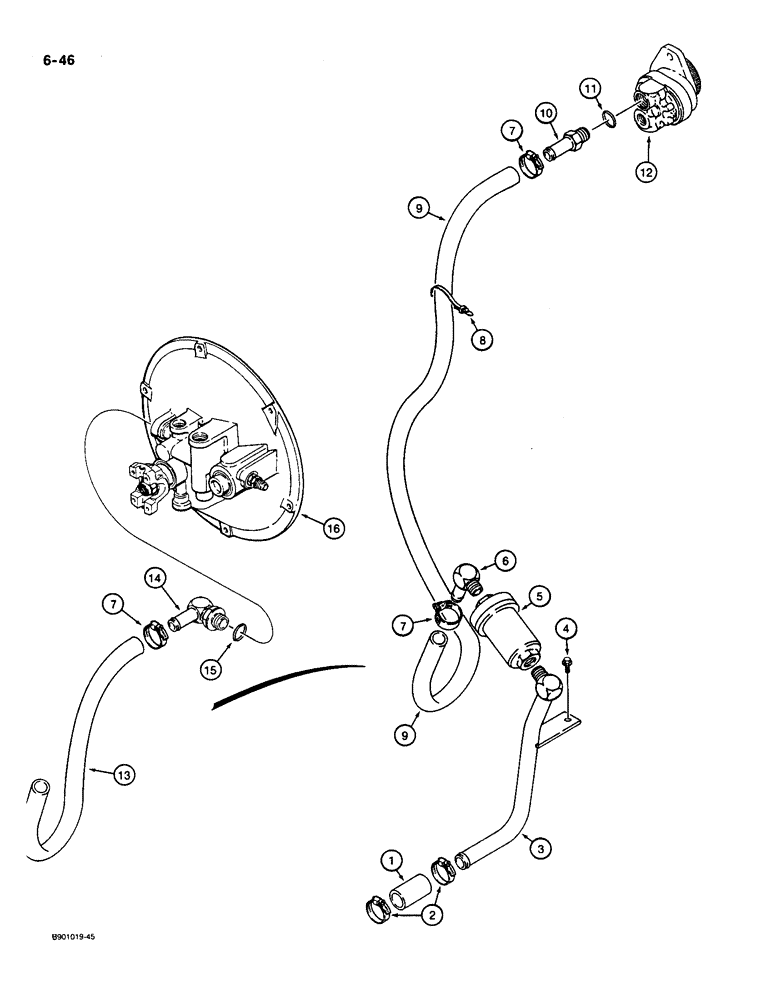

Запчасти Case 550 (6-46) - CRAWLER HYDRAULIC CIRCUIT, TRANSMISSION SUCTION LINE (06) - POWER TRAIN

1

R13911

HOSE,31.80 mm ID x 101.60 mm ID, SAE 100R3

- cut from S118465 hose, see below, at transmission, suction line tube 31.80 mm ID x 101.60 mm ID, SAE 100R3

1шт.

2

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

2шт.

3

R50600

TUBE,1.25" OD

- transmission to filter, suction line, bracket bolts to main frame

1шт.

4

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8, Teflon coated

1шт.

5

D35144

FILTER

FILTER ASSEMBLY - suction line, parts list figure 6-54

1шт.

6

217-136

ELBOW,90 Degree Elbow, 1" Hose Barb x 1" Male NPTF

- 90 degree, 1 inch stem end x PT, at suction filter

1шт.

7

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

2шт.

8

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

9

R50625

HOSE

- 25 x 38 x 1330 mm, suction filter to charging pump, Serial Range: -JAK0013968

1шт.

10

R56732

CONNECTION,ELECTRIC

FITTING - stem, at charging pump, Includes: Ref. 11, Serial Range: -JAK0013968

1шт.

11

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, Serial Range: -JAK0013968

1шт.

12

R48598

PUMP

ASSEMBLY - transmission charging, parts list and mounting, hardware on Figure 6-52, pressure line hydraulics on Figure 6-42, Serial Range: -JAK0013968

1шт.

13

D23886

HOSE

- 25 x 38 x 432 mm, suction filter to converter, Start Serial: JAK0013968

1шт.

14

R56769

FITTING

- stem, at torque converter, Includes: Ref. 15, Start Serial: JAK0013968

1шт.

15

237-6024

O-RING,0.118" Thk x 1.720" ID, -924, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide, Start Serial: JAK0013968

1шт.

16

1348881C1

CONVERTER

HOUSING ASSEMBLY - torque converter, parts list Figure 6-8 pressure line hydraulics on Figure 6-44, Start Serial: JAK0013968

1шт.

119994A1R

REMAN-HYD PUMP

550 Start Serial: JAK0013968, Reman for New PN 1348881C1

1шт.

119994A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

S118465

HOSE,1.25" ID x 180.00", SAE 100R3

- Bulk 1.25" ID x 180.00", SAE 100R3, Start Serial: JAK0013968

1шт.
