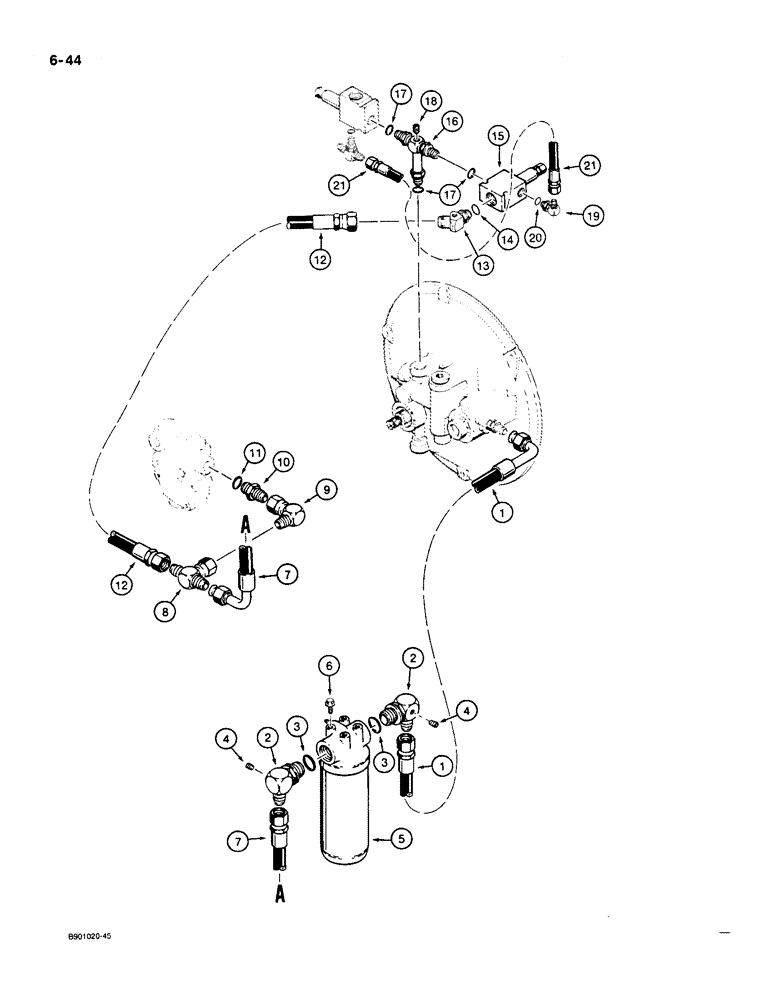

Запчасти Case 550 (6-44) - CRAWLER HYDRAULIC CIRCUIT, TORQUE CONVERTER TO TRANSMISSION, P.I.N JAK0013968 AND AFTER (06) - POWER TRAIN

1

R57653

HOSE ASSY.

HOSE - 1640 mm long, torque, Serial Range: converter-filter

1шт.

2

R49557

FITTING

ELBOW - 90 degree, with check port, Includes: Ref. 3

2шт.

3

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch

1шт.

4

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

2шт.

5

R48993

FILTER

ASSEMBLY - transmission oil, parts list Figure 6-54

1шт.

6

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

3шт.

7

R57656

HOSE

- 720 mm long, filter to modulator valve on transmission

1шт.

8

218-837

TEE,37 Degree, 1 1/16"-12 x 1 1/16"-12, Fem Sw Br

- swivel, 1-1/16-12 inch swivel straight thread branch x flare x flare

1шт.

9

218-5231

ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 1 1/16"-12, 37 Degree Fem Sw

- 90 degree, 1-1/16-12 inch flare x female swivel

1шт.

10

218-5065

HYD CONNECTOR,1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ADAPTER - straight, 1-1/16-12 flare x 7/8-14 inch O-ring boss, Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

H224147

HYDRAULIC HOSE,19.05 mm ID x 1320.80 mm, SAE 100R1

Modulator Valve to Relief Valve 19.05 mm ID x 1320.80 mm, SAE 100R1

1шт.

13

R57596

FITTING

ELBOW - 45 degree, special, see Figure 4-12 for transmission oil pressure gauge, Includes: Ref. 14

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

R57582

VALVE

ASSEMBLY - relief, component parts not serviced separately, may order S301087 seal kit below for service of external O-rings

1шт.

16

R57585

FITTING

TEE - special, at torque converter, see figure 6-50 for pressure sensing valve, Includes: Ref. 17

1шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

3шт.

18

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch PT

1шт.

19

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 deg, 9/16-18 flare x adj O-ring boss, Includes: Ref. 20

1шт.

21

L19294

HOSE,0.38" ID x 18.75", SAE 100R1

ASSY, , Relief Valve to Pressure Sensing Valve 0.38" ID x 18.75", SAE 100R1

1шт.

S301087

SEAL KIT

KIT - seal repair, contains three O-rings and two backup rings which are not serviced separately

1шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
