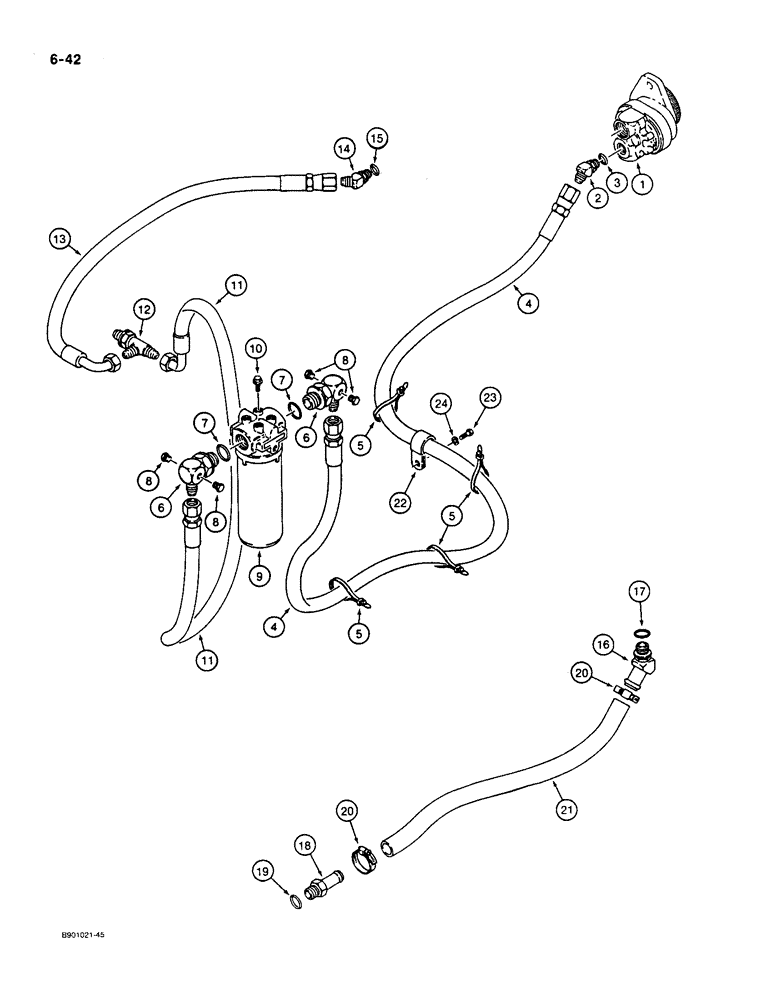

Запчасти Case 550 (6-42) - CRAWLER HYDRAULIC CIRCUIT, TORQUE CONVERTER TO TRANSMISSION, PRIOR TO P.I.N. JAK0013968 (06) - POWER TRAIN

1

R48598

PUMP

ASSEMBLY - transmission charging, parts list and mounting hardware on Figure 6-52

1шт.

2

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adj, 7/8-14 inch flare x O-ring boss, Incl. Ref 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

4

R50007

HOSE

- 106 inch long, charging, Serial Range: pump-filter

1шт.

5

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

6

R47066

ELBOW

- 90 degree, with check ports, Includes: Ref. 7

2шт.

7

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

- 1-11/64 ID x 7/64 inch wide

1шт.

8

221-661

PLUG,Hex Hd, 1/8"-27

- hex, 1/8 inch taper PT, elbow check ports

4шт.

9

R50518

FILTER

ASSEMBLY - transmission fluid, parts list Figure 6-54

1шт.

10

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8, Teflon coated

3шт.

11

H264697

HOSE ASSY.

HOSE - 762 mm long, filter to tee at transmission control valve

1шт.

12

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 7/8-14 inch flare branch x flare x adj O-ring boss, at transmission modulator valve, see Figure 6-36 for transmission control valve hydraulic circuits

1шт.

13

H265777

HOSE

- 1524 mm long, transmission modulator valve to torque converter

1шт.

14

218-5137

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 45 degree, adj, 7/8-14 inch flare x O-ring boss, Incl. Ref 15

1шт.

15

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

R56731

CONNECTION,ELECTRIC

FITTING - stem, hose, 45 degree, at torque converter drain, Includes: Ref. 17

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

18

217-390

FITTING,1" Hose Barb x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1 stem end x 1-1/16-12 inch O-ring boss, at transmission, Includes: Ref. 19

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

20

214-175

HOSE CLAMP,1-1/4" - 2-1/8", HD Worm

adjustable 1.25/2.125 HD Worm

2шт.

21

D30525

HOSE

- 1 x 1-1/2 x 29 inch, cut from bulk hose, see Parts Substitution List for bulk hose options, torque converter, Serial Range: drain-transmission

1шт.

22

D20302

CLAMP,7/8", Insul, 3/8" Bolt

- suction hose, bolts to main frame

1шт.

23

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

24

492-11038

LOCK WASHER,3/8"

1шт.
