(6-40) - TRANSMISSION MODULATOR VALVE ASSEMBLIES

Запчасти Case 550 (6-40) - TRANSMISSION MODULATOR VALVE ASSEMBLIES (06) - POWER TRAIN

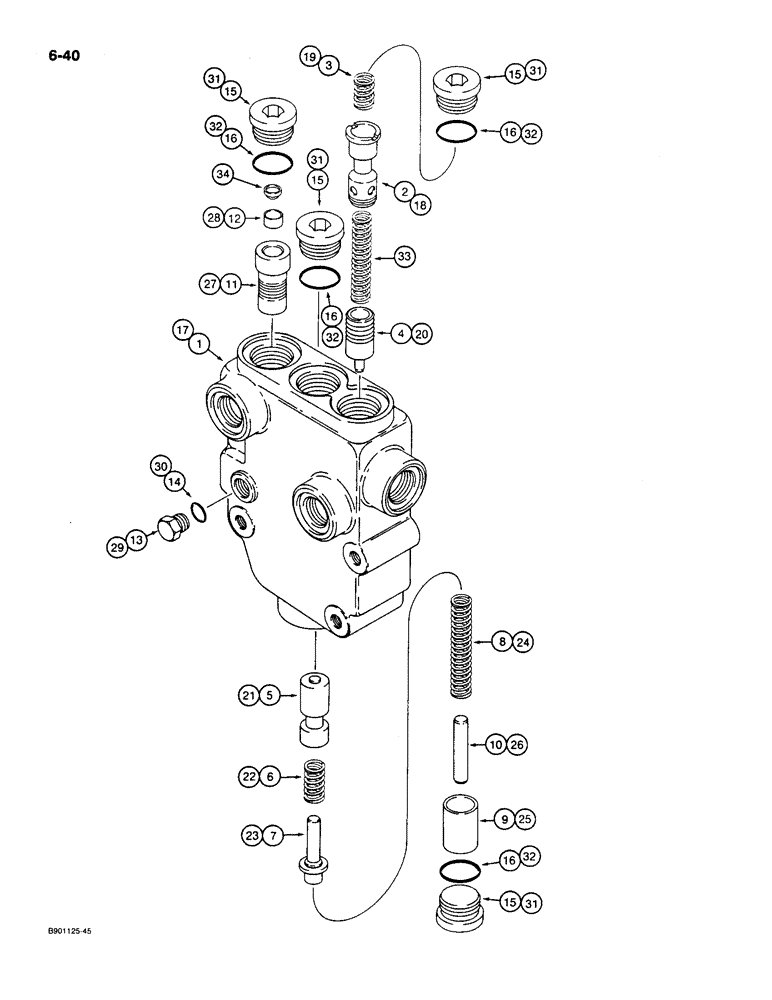

Схема запчастей Case 550 - (6-40) - TRANSMISSION MODULATOR VALVE ASSEMBLIES (06) - POWER TRAIN
7
4
15
16
31
26
32
18
16
15
32
28
27
22
32
33
1
24
20
14
15
19
16
25
8
15
30
6
23
10
31
9
3
32
21
5
31
34
9
2
16
11
17
12
31
29
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

G110392

VALVE

ASSEMBLY - modulator, no longer used, order 1986574C1 valve below, Includes: Ref. 1 - 16

1шт.

Above valve assemblies appear identical except for two additional parts in 1986574C1, reference numbers 33 and 34.

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - valve, G110392 transmission modulator valve assembly

1шт.

2

G110503

SPOOL

- track modulation, G110392 transmission modulator valve assembly

1шт.

3

G107294

SPRING

- track spool, G110392 transmission modulator valve assembly

1шт.

4

G106555

VALVE POPPET

POPPET - unloading, track spool, G110392 transmission modulator valve assembly

1шт.

5

G107532

SPOOL

- modulator, G110392 transmission modulator valve assembly

1шт.

6

G107479

SPRING

- modulator spool, G110392 transmission modulator valve assembly

1шт.

7

G107531

GUIDE

- spring, G110392 transmission modulator valve assembly

1шт.

8

G110133

SPRING

- modulation, G110392 transmission modulator valve assembly

1шт.

9

G107530

PISTON

- modulator, G110392 transmission modulator valve assembly

1шт.

10

G107529

PIN

- stop, G110392 transmission modulator valve assembly

1шт.

11

G107533

SPOOL

- unloading, G110392 transmission modulator valve assembly

1шт.

12

G107528

PLUG

- orifice, G110392 transmission modulator valve assembly

1шт.

13

9672438

PLUG,7/16" - 20 ORB

Test port, G110392 transmission modulator valve assembly, Incl. Ref. 14 Hex Hd, 7/16"-20 ORB

1шт.

14

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk, G110392 transmission modulator valve assembly

1шт.

15

9841223

PLUG,1-1/16" - 12 ORB

G110392 transmission modulator valve assembly, Incl. Ref. 16 Hex Soc, 1 1/16"-12 ORB

4шт.

16

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk, G110392 transmission modulator valve assembly

1шт.

1986574C1

DISTRIBUTOR

VALVE ASSEMBLY - modulator, 1986574C1 transmission modulator valve assembly, Includes: Ref. 17 - 34

1шт.

Above valve assemblies appear identical except for two additional parts in 1986574C1, Reference numbers 33 and 34.

1шт.

17

NSS

NOT SOLD SEPARAT

BODY - valve, 1986574C1 transmission modulator valve assembly

1шт.

18

G110503

SPOOL

- track modulation, 1986574C1 transmission modulator valve assembly

1шт.

19

1986559C1

SPRING

- track spool, 1986574C1 transmission modulator valve assembly

1шт.

20

G106555

VALVE POPPET

POPPET - unloading, track spool, 1986574C1 transmission modulator valve assembly

1шт.

21

G107532

SPOOL

- modulator, 1986574C1 transmission modulator valve assembly

1шт.

22

G107479

SPRING

- modulator spool, 1986574C1 transmission modulator valve assembly

1шт.

23

G107531

GUIDE

- spring

1шт.

24

1346480C1

SPRING

- modulation

1шт.

25

G107530

PISTON

- modulator

1шт.

26

G107529

PIN

- stop

1шт.

27

1986569C1

SPOOL

- unloading

1шт.

28

1986570C1

PLUG

- orifice

1шт.

29

9672438

PLUG,7/16" - 20 ORB

Test port, Incl. Ref. 30 Hex Hd, 7/16"-20 ORB

1шт.

30

237-6004

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

4-1, 90 Duro, .351" ID x .072" Thk

1шт.

31

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 32 Hex Soc, 1 1/16"-12 ORB

4шт.

32

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

33

1986558C1

SPRING

- track unloading

1шт.

34

1976955C1

FILTER SCREEN

SCREEN, FILTER

1шт.
