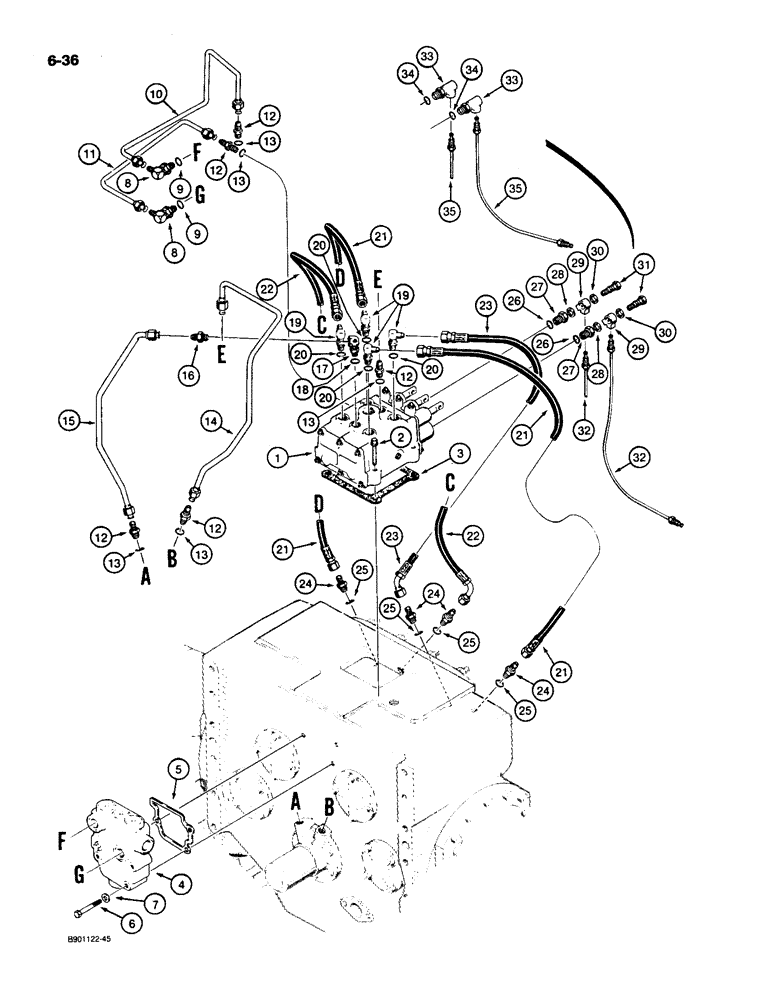

Запчасти Case 550 (6-36) - TRANSMISSION CONTROL VALVE HYDRAULIC LINES (06) - POWER TRAIN

1

REF

INSTRUCTION

VALVE ASSEMBLY - transmission control, for correct assembly and components, see Figure 6-38

1шт.

2

166-1023

BOLT - Ferry, 3/8 NC x 2 inch, grade 8

4шт.

3

1986527C1

GASKET

- control valve to tramsmission housing, if used

1шт.

3

B17504

GASKET

SEALANT - Gasket Eliminator No. 504, 300 ml cartridge, control valve to transmission housing, if used, not shown

1шт.

4

REF

INSTRUCTION

VALVE ASSEMBLY - modulator, for correct assembly and components, see Figure 6-40

1шт.

5

G105635

GASKET

GASKET - modulator valve

1шт.

6

26-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 8

use with Loctite 242 Hex, 3/8"-16 x 2 1/2", G8

3шт.

7

D32117

COPPER WASHER

WASHER, COPPER, 3/8 inch, if used

3шт.

8

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss, Includes: Ref. 9

2шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

G108277

HYD TUBE

TUBE - forward-reverse, modulator valve to the top of the control valve

1шт.

11

G108278

HYD TUBE,0.5" OD

TUBE - high-low, modulator valve to the left-hand side of the control valve

1шт.

12

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 13

5шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

G108275

TUBE,12.7 mm OD

- forward, right-hand

1шт.

15

G108276

TUBE,0.5" OD

- reverse, left-hand

1шт.

16

218-444

HYD CONNECTOR,3/4" - 16 Male JIC x 3/8" - 18 Male NPTF

ADAPTER - straight, 3/4-16 flare x 3/8 inch PT

1шт.

17

G107178

ELBOW

- 90 degree, adjustable, with tapped hole for backup alarm pressure switch connection, Includes: Ref. 18

1шт.

18

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

19

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, adj, 3/4-16 inch flare x O-ring boss, Includes: Ref. 20

4шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

21

G108248

HOSE

- 17 inch long, right-hand low clutch and left-hand high clutch

1шт.

22

G108247

HOSE

- 22 inch long, left-hand low clutch

1шт.

23

G108060

HOSE

- 14 inch long, right-hand high clutch

1шт.

24

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 25

4шт.

25

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

26

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Serial Range: -JAK0013968

2шт.

27

72125

ADAPTER

- straight, Serial Range: -JAK0013968

2шт.

28

L114099

WASHER,13.64mm ID x 21.21mm OD x 1.59mm Thk

GASKET - inner, Y-fitting, Serial Range: -JAK0013968

2шт.

29

51200243

FITTING

ADAPTER - special, Y-fitting, Serial Range: -JAK0013968

2шт.

30

51200242

SEAL,15.24mm ID x 20.64mm OD x 0.81mm Thk

- outer, Y-fitting, Serial Range: -JAK0013968

2шт.

31

A12864

BOLT

- special, Y-fitting, Serial Range: -JAK0013968

2шт.

32

A50358

TUBE

- control valve to brake cylinder, Serial Range: -JAK0013968

2шт.

33

1348882C1

FITTING

TEE - special, at control valve, Includes: Ref. 34, Start Serial: JAK0013968

2шт.

34

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk, Start Serial: JAK0013968

1шт.

35

1348883C1

TUBE

- tee at control valve to brake cylinder, Start Serial: JAK0013968

2шт.
