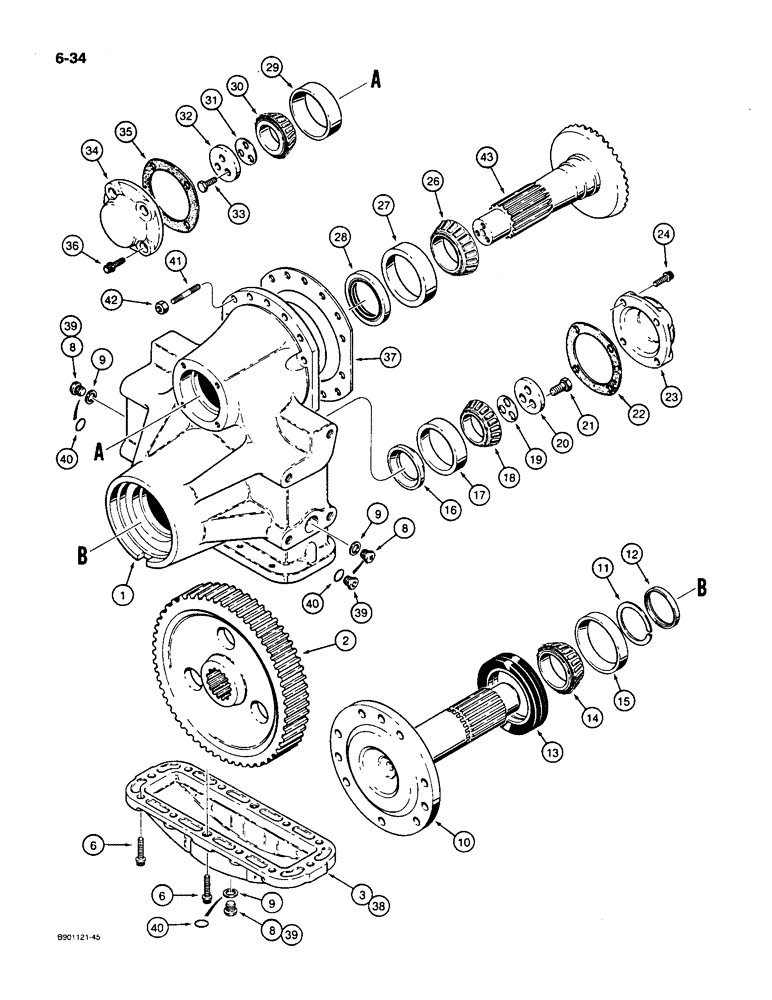

Запчасти Case 550 (6-34) - TRANSMISSION FINAL DRIVE, 64 INCH GAUGE LGP MODELS (06) - POWER TRAIN

G104730

TRANSMISSION

DRIVE ASSEMBLY - final, 64 inch gauge LGP models, Includes: Ref. 1 - 40

2шт.

1

G104731

HOUSING

- final drive assembly

1шт.

2

G101531

GEAR

- final drive, 76 teeth

1шт.

3

A136860

COVER

- bottom, final drive gear, no longer used, order 1348873C1 cover and 218-5210 plug, Refs. 38 - 40 below

1шт.

4

B17428

LOCTITE

SEALANT - Gasket Eliminator, No. 504, 1-3/4 oz. (50 ml) tube, bottom gear cover to housing, not shown

1шт.

6

166-87

BOLT,Flg, 1/2" - 13 x 1 1/2", Gr 8

- Ferry, 1/2 NC x 1-1/2 inch, grade 8, use with Loctite 242

12шт.

8

A50014

PLUG

- drain, housing, if used

3шт.

9

G102141

SEALING WASHER

WASHER - copper, drain plug, if used

3шт.

10

G106477

SHAFT

- final drive

1шт.

11

G104968

SNAP RING,#325, 3.070, Ext

RING - retaining, final drive gear

1шт.

12

G107232

SPACER

- final drive gear

1шт.

13

1981095C1

SEAL

- face, final drive shaft, outer

1шт.

14

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

BEARING - tapered roller, final drive shaft, outer

1шт.

15

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - tapered roller bearing, outer

1шт.

16

G100325

SPACER

- final drive shaft

1шт.

17

L35931

BEARING CUP

CUP - tapered roller bearing, inner

1шт.

18

630203C91

TAPERED BEARING

- tapered roller, final drive shaft, inner

1шт.

19

R21741

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

19

R21742

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

19

R21743

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

20

G102107

PLATE

- bearing retaining

1шт.

21

28-920

BOLT,Hex, 9/16" - 18 x 1-1/4", Gr 8

use with Loctite 242 Hex, 9/16"-18 x 1 1/4", G8, Full Thd

3шт.

22

G101598

GASKET

- cover

1шт.

23

G105822

COVER ASSY

COVER - final drive shaft

1шт.

24

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT - Ferry, 1/2 NC x 1 inch, use with Loctite 242

4шт.

26

622336C1

ROLLER BEARING,84.99mm ID x 30mm W

BEARING - tapered roller, input shaft, inner

1шт.

27

A63171

BEARING CUP,85 mm ID x 130 mm OD x 30.2 mm

CUP - tapered roller bearing, inner

1шт.

28

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

- oil, final drive housing, input shaft

1шт.

29

895366C1

BEARING CUP

CUP - tapered roller bearing, outer

1шт.

30

895102C91

BEARING

- tapered roller, input shaft, outer

1шт.

31

G100328

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

31

G100329

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

31

G100330

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

32

G102108

PLATE

- bearing retaining

1шт.

33

26-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

Use with Loctite 242 Hex, 1/2"-13 x 1 1/4", G8, Full Thd

3шт.

34

G105822

COVER ASSY

COVER - input shaft

1шт.

35

G101598

GASKET

- cover

1шт.

36

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT - Ferry, 1/2 NC x 1 inch

4шт.

37

A50199

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

37

A50198

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

38

1348873C1

COVER

- bottom, final drive gear

1шт.

39

71100209

PLUG,Hex Soc, 3/4"-16 ORB

If used, Incl Ref 40 Hex Soc, 3/4"-16 ORB

3шт.

40

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

41

G100303

STUD

- 1/2 NC x 2-5/16 inch

24шт.

42

131-1153

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

43

G110536

GEAR-SET

GEAR - bevel, input shaft, matched set, with pinion shaft, see Figure 6-30

1шт.
