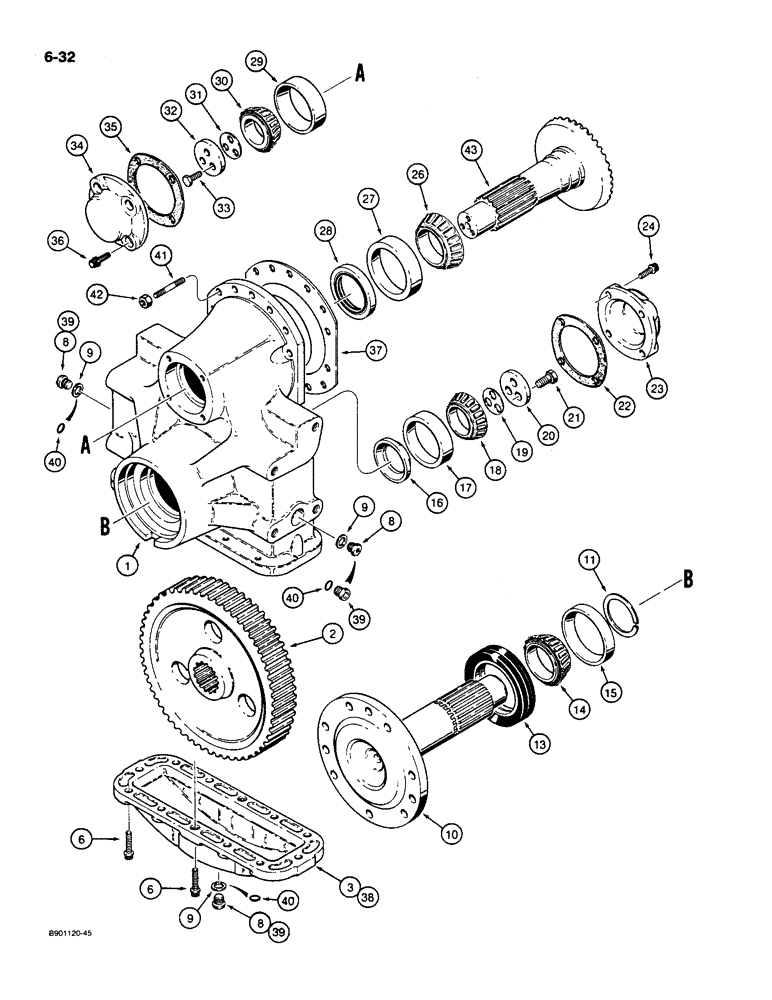

Запчасти Case 550 (6-32) - TRANSMISSION FINAL DRIVE, 53 INCH GAUGE LONG TRACK MODELS (06) - POWER TRAIN

1342267C1

DRIVE ASSY.

DRIVE ASSEMBLY - final, 53 inch gauge long track models, Includes: Ref. 1 - 40

2шт.

1

1342258C1

HOUSING

- final drive assembly

1шт.

2

G101531

GEAR

- final drive

1шт.

3

A136860

COVER

- bottom, final drive gear, no longer used, order 1348873C1 cover and 218-5210 plug Refs. 38 - 40 below

1шт.

4

ZPX51550

ADHESIVE

SEALANT - Gasket Eliminator, No. 504, 1-3/4 oz. (50 ml) tube, bottom gear cover to housing, not shown

1шт.

6

86576656

12 PT SCREW,1/2" - 13 x 1.50", Gr 8

BOLT - Ferry, 1/2 NC x 1-1/2 inch, grade 8

12шт.

8

A50014

PLUG

- drain, housing, used with copper washer, if used

3шт.

9

G102141

SEALING WASHER

WASHER - copper, drain plug, if used

3шт.

10

1342257C1

SHAFT

- final drive

1шт.

11

101-11325

SNAP RING,#325, 3.070, Ext

RING - retaining, final drive gear

1шт.

13

1981095C1

SEAL

- face, final drive shaft, outer

1шт.

14

9823420

BEARING ASSY,85mm ID x 29mm W

BEARING - tapered roller, final drive shaft, outer

1шт.

15

9823418

BEARING CUP,130mm OD x 24mm W

CUP - tapered roller bearing, outer

1шт.

16

G100325

SPACER

- final drive shaft

1шт.

17

9671391

BEARING CUP

- tapered roller bearing, inner

1шт.

18

9670004

BEARING CONE,64.99mm ID x 28mm W

BEARING - tapered roller, final drive shaft, inner

1шт.

19

R21741

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

19

R21742

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

19

R21743

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

20

1997099C1

PLATE

- bearing retaining

1шт.

21

28-920

BOLT,Hex, 9/16" - 18 x 1-1/4", Gr 8

use with Loctite 242 Hex, 9/16"-18 x 1 1/4", G8, Full Thd

3шт.

22

G101598

GASKET

- cover

1шт.

23

G105822

COVER ASSY

COVER - final drive shaft

1шт.

24

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT - Ferry, 1/2 NC x 1 inch, use with Loctite 242

4шт.

26

9823420

BEARING ASSY,85mm ID x 29mm W

BEARING - tapered roller, input shaft, inner

1шт.

27

9823418

BEARING CUP,130mm OD x 24mm W

CUP - tapered roller bearing, inner

1шт.

28

A32015

SEAL,82.55mm ID x 114.3mm OD x 11.91mm Thk

- oil, final drive housing, input shaft

1шт.

29

86509783

BEARING CUP,110mm OD x 32mm W

CUP - tapered roller bearing, outer

1шт.

30

86509782

ROLLER BEARING,55mm ID x 39mm W

BEARING - tapered roller, input shaft, outer

1шт.

31

G100328

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

31

G100329

SHIM,.007" Thk

(0.178 mm) .007" Thk

1шт.

31

G100330

SHIM,.020" Thk

(0.508 mm) .020" Thk

1шт.

32

1997100C1

PLATE

- bearing retaining

1шт.

33

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

Use with Loctite 242 Hex, 1/2"-13 x 1 1/4", G8, Full Thd

3шт.

34

G105822

COVER ASSY

COVER - input shaft

1шт.

35

G101598

GASKET

- cover

1шт.

36

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT - Ferry, 1/2 NC x 1 inch

4шт.

37

A50199

SHIM,.003" Thk

(0.076 mm) .003" Thk

1шт.

37

A50198

SHIM,.005" Thk

(0.127 mm) .005" Thk

1шт.

38

1348873C1

COVER

- bottom, final drive gear

1шт.

39

71100209

PLUG,Hex Soc, 3/4"-16 ORB

If used, Incl Ref 40 Hex Soc, 3/4"-16 ORB

3шт.

40

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

41

308713A1

STUD

- 1/2 NC x 2-5/16 inch

24шт.

42

86992215

LOCK NUT,1/2"-13, GC

NUT, LOCK, 1/2"-13, GC

24шт.

43

1997071C1

GEAR-SET

GEAR - bevel, input shaft, matched set, with pinion shaft, see Figure 6-30

2шт.

117702A1

GUARD

seal, final drive shaft

2шт.
