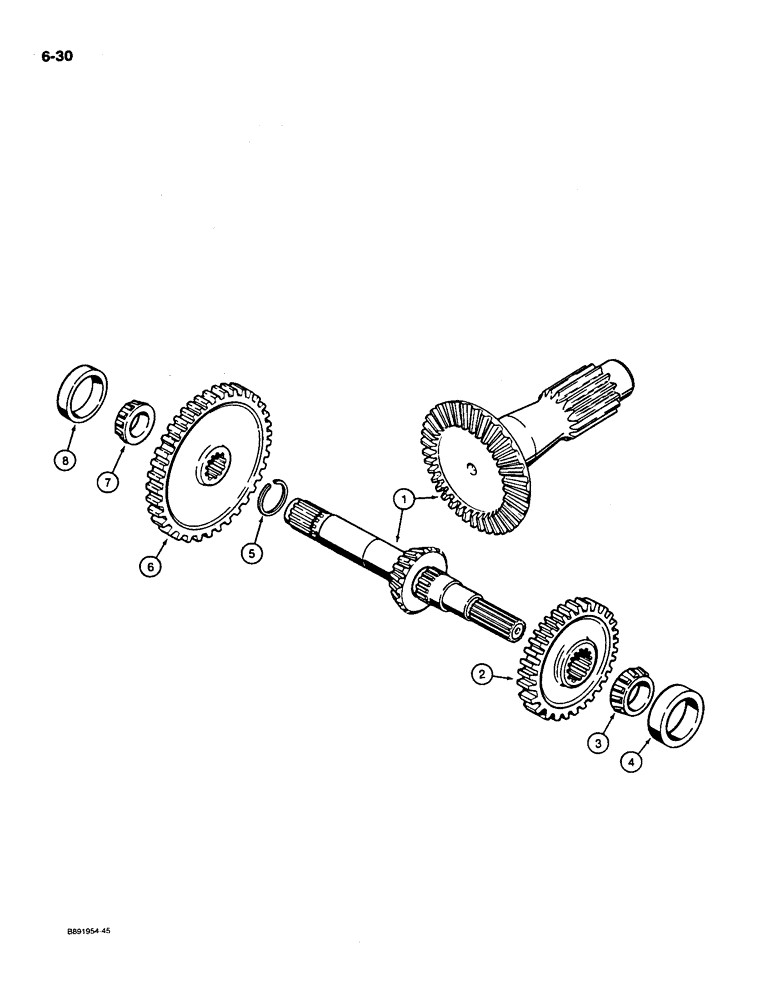

Запчасти Case 550 (6-30) - TRANSMISSION BEVEL PINION SHAFT AND GEAR (06) - POWER TRAIN

1

1997071C1

GEAR-SET

SHAFT - includes bevel pinion gear, matched set

2шт.

2

G103777

GEAR

- driven, high clutch, 43 teeth, front

2шт.

3

166263

BEARING CONE,41.27mm ID x 25.4mm W

BEARING - tapered roller, high clutch gear, front

2шт.

4

G100312

BEARING, CUP,85mm OD x 19.05mm W

CUP - tapered roller bearing, front (replaces ST973)

2шт.

5

A27085

RING

- snap, low clutch gear

2шт.

6

G103778

GEAR

- driven, low clutch, 51 teeth, rear

2шт.

7

A26719

ROLLER BEARING,38.1mm ID x 20.64mm W

BEARING - tapered roller, low clutch gear, rear

2шт.

8

A50264

BEARING CUP,72mm OD x 14.2mm W

CUP - tapered roller bearing, rear

2шт.
