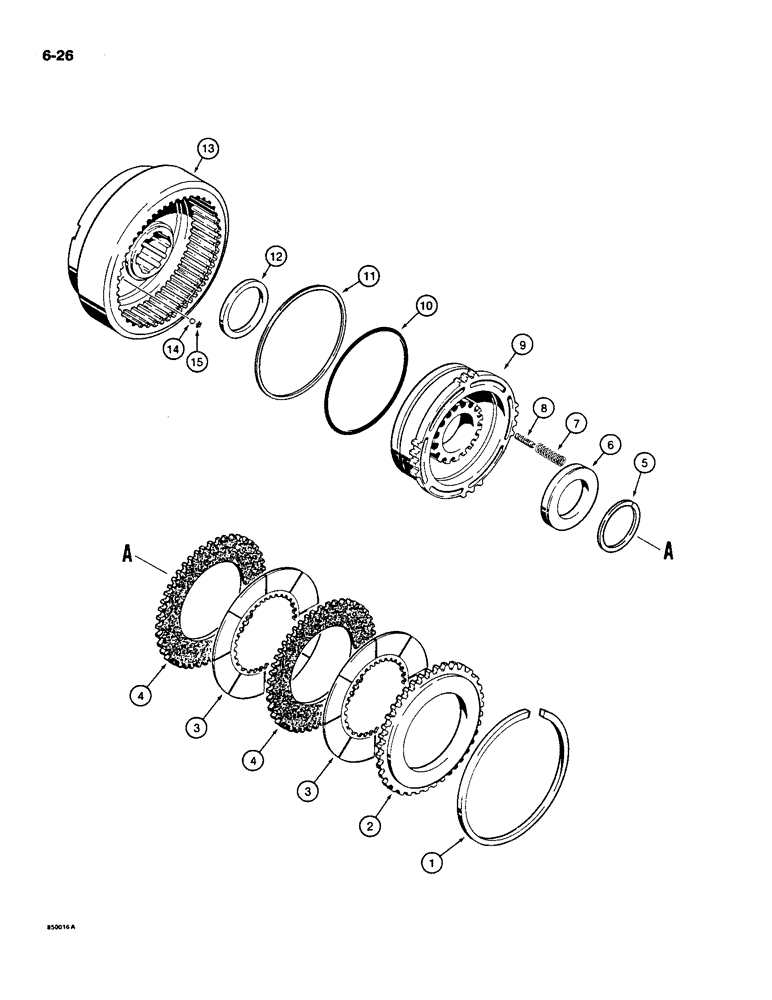

Запчасти Case 550 (6-26) - TRANSMISSION HIGH AND LOW SPEED CLUTCH ASSEMBLIES (06) - POWER TRAIN

G106702

CLUTCH ASSEMBLY

- high and low speed, Includes: Ref. 1 - 15

4шт.

1

30785

RING

- snap, disc retaining

1шт.

2

G103391

PLATE

- clutch backing

1шт.

3

G102354

PLATE

DISC - friction, internal teeth

2шт.

4

G101711

PLATE

DISC - steel, external teeth

2шт.

5

A27233

RING

- snap, spring retainer

1шт.

6

R11016

RETAINER

- clutch springs

1шт.

7

A51825

SPRING

- clutch, outer

18шт.

8

A51826

SPRING

- clutch, inner

18шт.

9

G106697

PISTON

- clutch, aluminum

1шт.

10

G103487

O-RING,6.487" ID

- piston

1шт.

11

G103486

SEALING RING

SEAL - piston

1шт.

12

A50415

SEAL

- drum

1шт.

13

G106732

DRUM

- clutch

1шт.

14

211-8

BALL,9/32" Dia

grade 200, chrome alloy steel 9/32" Dia

1шт.

15

A153400

SNAP RING,0.312", Int, #31

ball 0.312", Int, #31

1шт.
