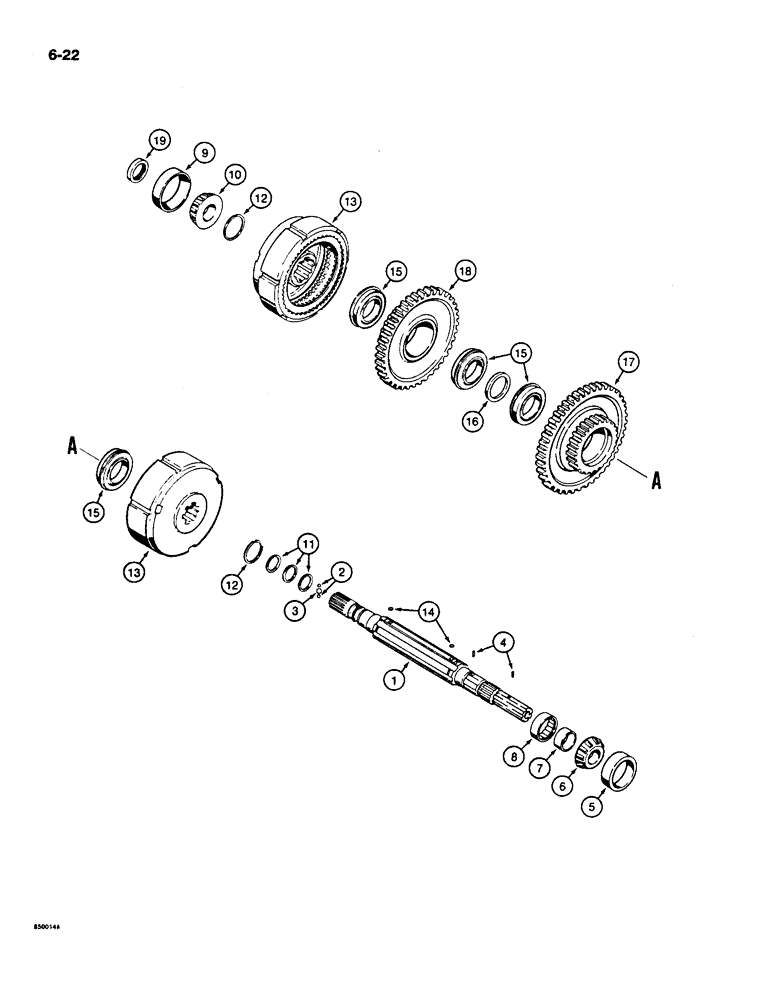

Запчасти Case 550 (6-22) - TRANSMISSION MAIN SHAFT AND, FORWARD-REVERSE CLUTCHES (06) - POWER TRAIN

1

G109370

SHAFT

- main, Includes: Ref. 2 and 3

1шт.

2

211-7

BALL,1/4" Dia

grade 200, chrome alloy steel 1/4" Dia

2шт.

3

211-10

BALL

- 3/8 inch diameter, grade 200, chrome alloy steel

1шт.

4

138-68

LOCK PIN,5/32" x 7/16", Slotted

PIN, , Range gear 5/32" x 7/16", Slotted

2шт.

5

128242R1

BEARING CUP,76.225 mm OD x 23.863 mm

CUP - tapered roller bearing, front

1шт.

6

G106461

ROLLER BEARING,33.34mm ID x 28.78mm W

BEARING - tapered roller, main shaft, front

1шт.

7

G106696

BEARING,41.26mm ID x 50.77mm OD x 32mm W

RACE - inner, needle bearing

1шт.

8

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

BEARING - needle, main shaft

1шт.

9

G109317

BEARING CUP

CUP - tapered roller bearing, rear

1шт.

10

G109318

CONE

BEARING - tapered roller, main shaft, rear

1шт.

11

A51841

RING

SEAL - ring, main shaft, rear

3шт.

12

A50046

RING

- snap, clutch retaining

2шт.

13

G106701

CLUTCH ASSEMBLY

- forward and reverse, parts list Figure 6-28

2шт.

14

G107169

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- clutch seal

4шт.

15

40027

BALL BEARING,49.99mm ID x 80mm OD x 16mm W

- ball, forward and reverse gears

4шт.

16

A50034

SPACER

- forward and reverse gears

1шт.

17

G106770

GEAR

- reverse, 56 teeth

1шт.

18

G106771

GEAR

- forward, 51 teeth

1шт.

19

A54107

OIL SEAL,38.1mm ID x 8mm Thk

- oil, main shaft, rear

1шт.
