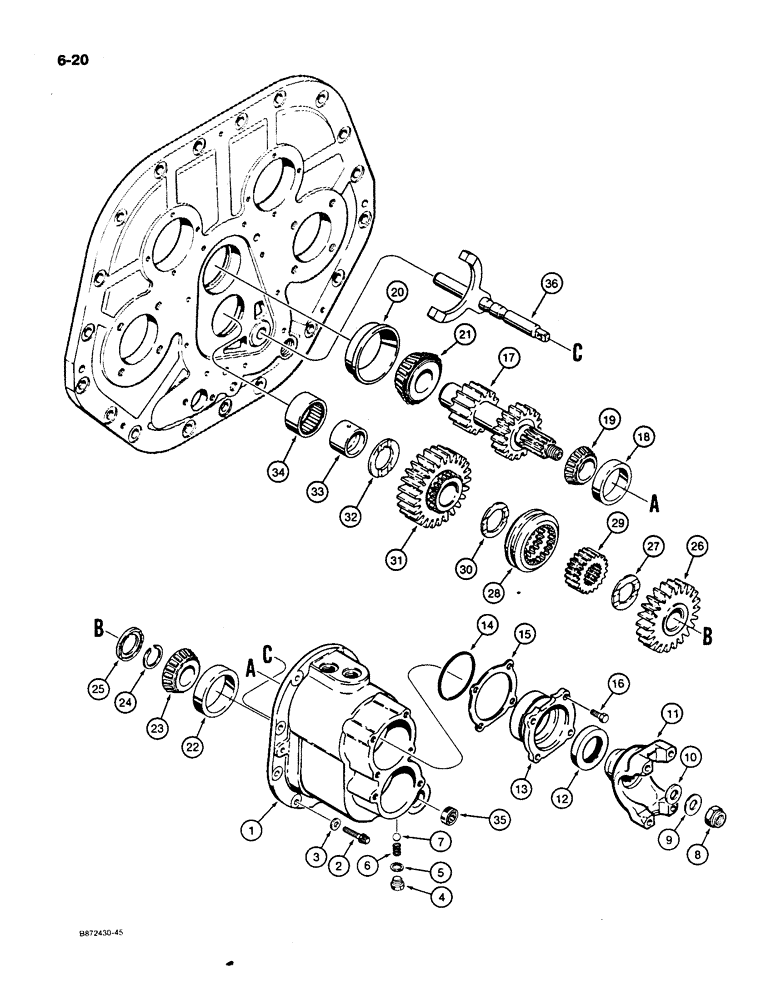

Запчасти Case 550 (6-20) - TRANSMISSION RANGE SHIFT (06) - POWER TRAIN

1

NSS

NOT SOLD SEPARAT

HOUSING - range gear, see Figure 6-16 for service

1шт.

2

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - Ferry head, 3/8 NC x 1-1/4 inch, use with Loctite 242

9шт.

3

D32117

COPPER WASHER

WASHER, COPPER, 3/8 inch

9шт.

4

A50094

PLUG,Screw, 5/8" - 18 x 0.377"

SCREW - special, detent

1шт.

5

A50093

SEALING WASHER

WASHER - special

1шт.

6

A50092

SPRING

- detent

1шт.

7

211-13

BALL,1/2" Dia

grade 200, chrome alloy steel 1/2" Dia

1шт.

8

131-37

LOCK NUT,3/4"-16

NUT - hex, self-locking, 3/4 inch NF, input shaft

1шт.

9

32601

WASHER

- yoke retaining

1шт.

10

34395

SEALING WASHER

WASHER - seal, cork

1шт.

11

G110044

STIRRUP

YOKE - input shaft, see Figures 6-10 and 6-12 for mounting hardware to drive shaft

1шт.

12

A39110

OIL SEAL,54mm ID x 76.33mm OD x 9.09mm Thk

- oil, yoke

1шт.

13

G105196

SLEEVE

- input shaft

1шт.

14

A32190

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

- input shaft sleeve

1шт.

15

G105202

BLOCK

SHIM - sleeve, .003 inch thick

1шт.

15

G105203

BLOCK

SHIM - sleeve, .007 inch thick

1шт.

15

G107162

BLOCK

SHIM - sleeve, .020 inch thick

1шт.

16

113-207

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

17

G107129

SHAFT

- input, transmission, with gears

1шт.

18

165964R1

BEARING CUP

CUP - tapered roller bearing, front, input shaft

1шт.

19

560953R91

BEARING ASSY,1.375" ID x 2.875" OD x 0.9688"

BEARING - tapered roller, front, input shaft

1шт.

20

G106463

BEARING, CUP,89.59mm OD x 23.81mm W

CUP - tapered roller bearing, rear, with flange

1шт.

21

ST791

TAPERED BEARING,1.6255" ID x 3.376" OD x 1.202"

BEARING - tapered roller, rear, input shaft

1шт.

22

128242R1

BEARING CUP,76.225 mm OD x 23.863 mm

CUP - tapered roller bearing, front, main shaft

1шт.

23

G106461

ROLLER BEARING,33.34mm ID x 28.78mm W

BEARING - tapered roller, front, main shaft

1шт.

24

G109366

SNAP RING,#131, 1.232", Ext

RING - snap, front bearing

1шт.

25

G108766

WASHER

- thrust, range gear, front, main shaft

1шт.

26

G107093

GEAR

- high range, front, main shaft, 22 teeth

1шт.

27

G107116

WASHER,33.48mm ID x 55.63mm OD x 3.17mm Thk

- thrust, between front range gear and range selector collar

1шт.

28

A51806

COLLAR

SLEEVE - range selector

1шт.

29

G107110

HUB

COLLAR - range selector

1шт.

30

G107117

WASHER

- thrust, between range selector collar and rear range gear

1шт.

31

G107094

GEAR WHEEL

GEAR - low range, rear, main shaft, 25 teeth

1шт.

32

G106465

WASHER

- thrust, range gear, rear, main shaft

1шт.

33

G106696

BEARING,41.26mm ID x 50.77mm OD x 32mm W

RACE - inner, needle bearing

1шт.

34

H748111

NEEDLE BEARING,Needle, 50.8mm ID x 65.17mm OD x 25.4mm W

BEARING - needle, main shaft at front housing cover

1шт.

35

G105118

OIL SEAL

- selector shaft, in range gear housing

1шт.

36

G107672

SHAFT

- range selector, with welded fork

1шт.
