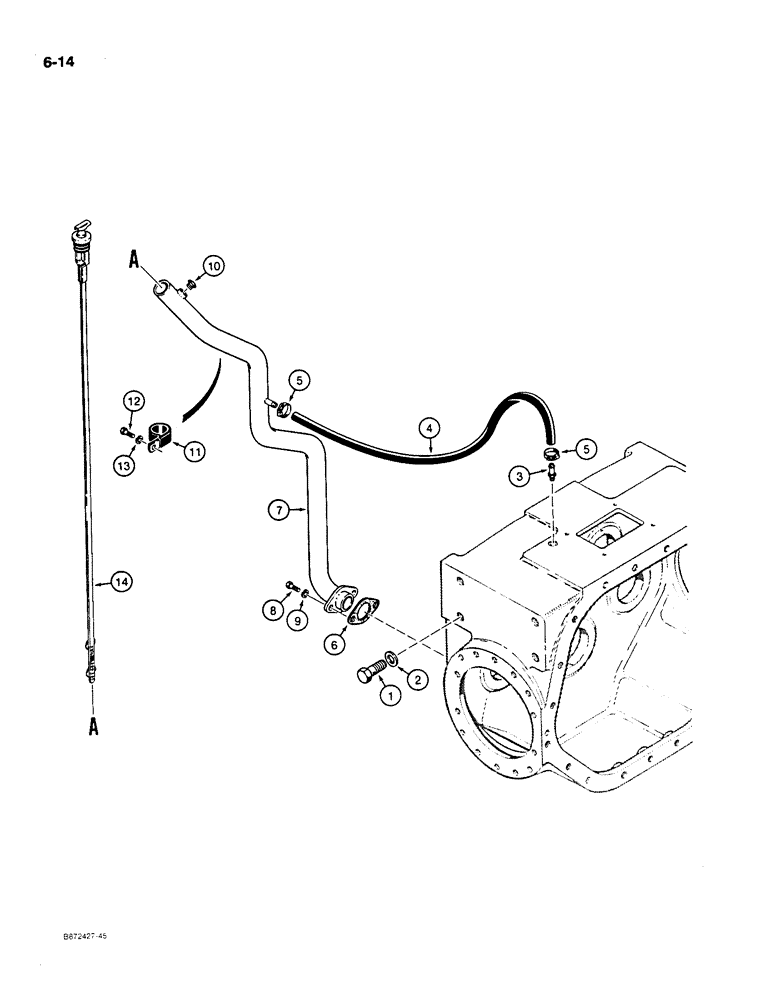

Запчасти Case 550 (6-14) - TRANSMISSION MOUNTING, BREATHER, AND DIPSTICK (06) - POWER TRAIN

1

26-1228

BOLT,Hex, 3/4" - 10 x 1-3/4", Gr 8

- hex, 3/4 NC x 1-3/4 inch, grade 8, use with Loctite, mounts transmission to main frame and seat and tank frame

8шт.

2

T53681

WASHER,19.84mm ID x 44.5mm OD x 5.559mm Thk

- flat, 20 x 44 x 6 mm, hardened

8шт.

3

217-151

FITTING,3/8" Hose Barb x 1/4" Male NPTF

Adapter - straight, breather hose 3/8" Hose X 1/4" NPTF Beaded

1шт.

4

S119435

HOSE - 3/8 x 19/32 x 12 inch, transmission breather, cut from S118400 hose, see below

1шт.

Transmission assembly parts on Figures 6-16 - 6-40, 7-6 and 7-8.

1шт.

5

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj. #4, 0.25/0.62 Type F Worm

2шт.

6

R47073

GASKET

- dipstick tube

1шт.

7

R49304

TUBE,1.5" OD

- dipstick

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

9

492-11038

LOCK WASHER,3/8"

2шт.

10

D63543

BREATHER

- dipstick tube

1шт.

11

S86530

CLAMP

- dipstick tube to hydraulic reservoir

1шт.

12

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

1шт.

13

492-11038

LOCK WASHER,3/8"

1шт.

14

R52797

DIPSTICK

- transmission

1шт.

S118400

HOSE,0.38" ID x 300.00"

- Bulk 0.38" ID x 300.00"

1шт.

Transmission assembly parts on Figures 6-16 - 6-40, 7-6 and 7-8.

1шт.
