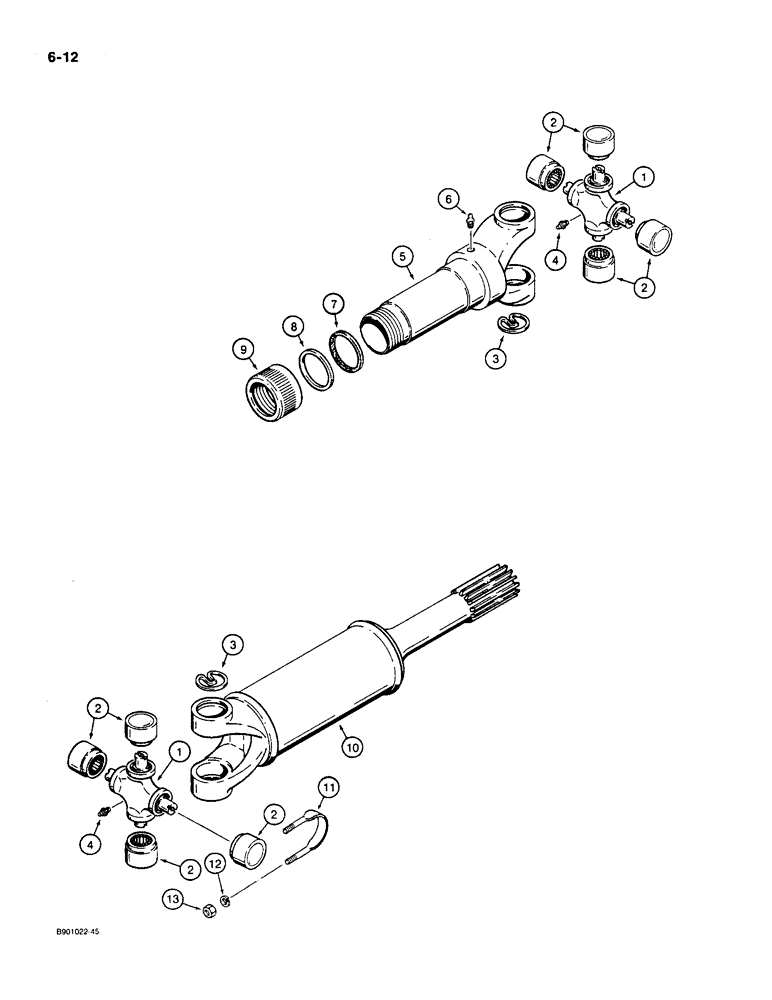

Запчасти Case 550 (6-12) - R56762 DRIVE SHAFT ASSEMBLY, P.I.N. JAK0013968 AND AFTER (06) - POWER TRAIN

R56762

STEERING SHAFT

SHAFT ASSEMBLY - drive, torque converter to transmission, Includes: Ref. 1 - 13

1шт.

S301026

JOINT

KIT - universal joint, Includes: Ref. 1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

3

11256

SNAP RING

- retaining, universal joint

4шт.

4

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch long

1шт.

5

S301043

YOKE

TUBE - yoke, torque converter end, Includes: Ref. 6

1шт.

6

219-10

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 11/16 inch long

1шт.

7

H223883

WASHER

- special, cork

1шт.

8

H223891

WASHER

- special, steel

1шт.

9

H223875

CYLINDER END CAP

CAP - dust

1шт.

10

S301042

SHAFT

YOKE - splined shaft, transmission end

1шт.

H183566

BOLT

U-BOLT ASSEMBLY - universal joint to transmission yoke, Includes: Ref. 11 - 13

2шт.

11

NSS

NOT SOLD SEPARAT

U-BOLT - special

1шт.

12

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

13

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.
