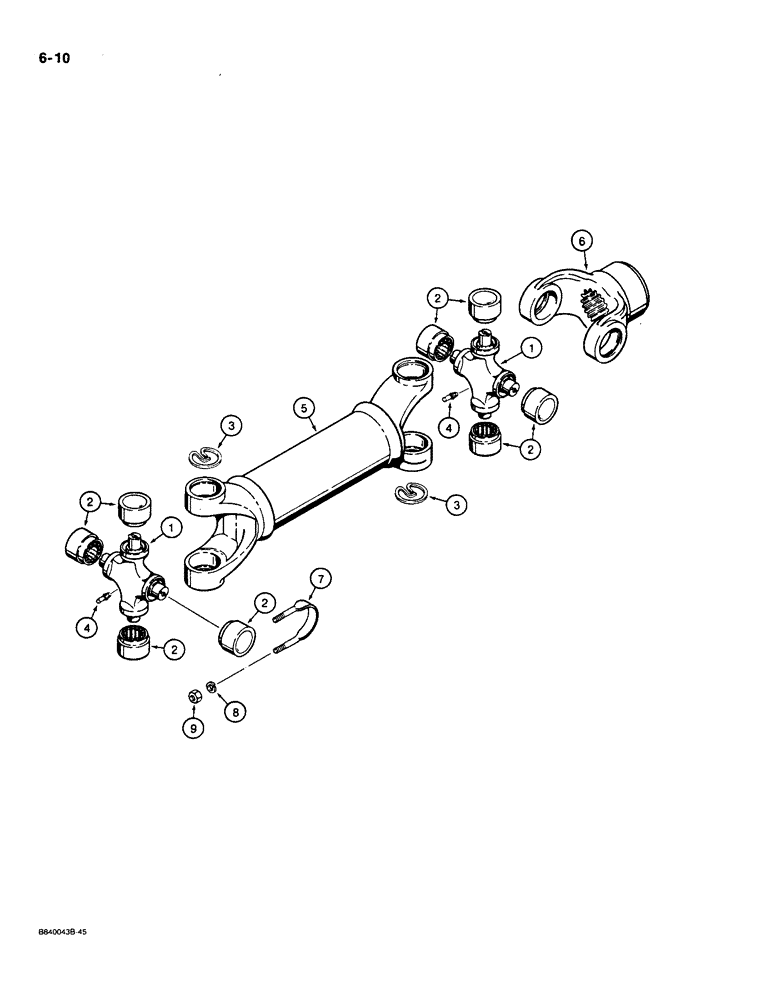

Запчасти Case 550 (6-10) - R46708 DRIVE SHAFT ASSEMBLY, PRIOR TO P.I.N. JAK0013968 (06) - POWER TRAIN

R46708

DRIVE ASSY.

SHAFT ASSEMBLY - drive, torque converter to transmission, Includes: Ref. 1 - 9

1шт.

N9082

KIT

- universal joint, Includes: Ref. 1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

JOINT - universal, drive shaft

1шт.

2

NSS

NOT SOLD SEPARAT

BEARING - universal joint

4шт.

3

11256

SNAP RING

- retaining, universal joint

4шт.

4

219-417

LUBE NIPPLE,1/4" - 28 NPTF

FITTING - grease, straight, 1/4-28 taper x 1-41/64 inch long

1шт.

5

NSS

NOT SOLD SEPARAT

SHAFT - drive shaft assembly

1шт.

6

N7771

YOKE

- drive shaft to torque converter

1шт.

H183566

BOLT

U-BOLT ASSEMBLY - universal joint to transmission yoke, Includes: Ref. 7- 9

2шт.

7

NSS

NOT SOLD SEPARAT

U-BOLT - special

1шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.
