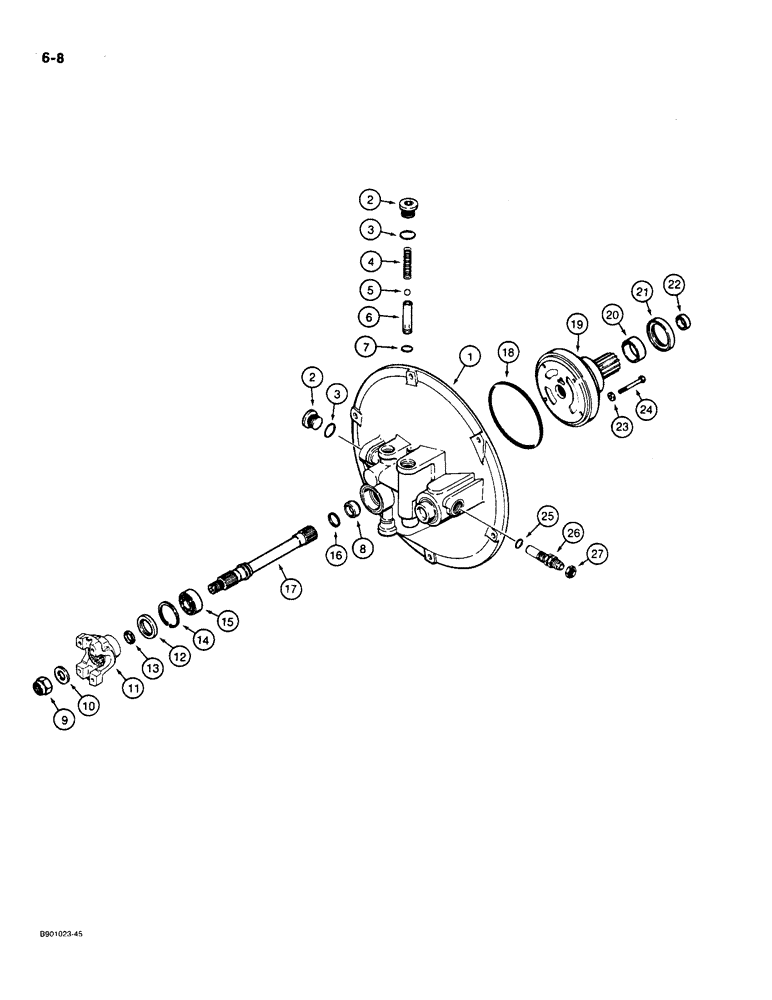

Запчасти Case 550 (6-08) - TORQUE CONVERTER HOUSING, PUMP, AND OUTPUT SHAFT, P.I.N. JAK0013968 AND AFTER (06) - POWER TRAIN

1348881C1

CONVERTER

HOUSING ASSEMBLY - complete, torque converter, Includes: Ref. 1 - 27

1шт.

119994A1R

REMAN-HYD PUMP

550, OUTPUT SHAFT, P.I.N. JAK0013968 AND AFTER, Reman for New PN 1348881C1

1шт.

119994A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - torque converter housing and relief, Includes: Ref. 1 - 8

1шт.

1

1348828C1

HOUSING

- torque converter

1шт.

2

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 3 Hex Soc, 1 1/16"-12 ORB

2шт.

3

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

4

A190345

SPRING

- pump relief valve

1шт.

5

211-102

BALL,1/2" Dia

- 1/2 inch (13 mm) OD

1шт.

6

A183336

VALVE

CARTRIDGE - pump relief valve

1шт.

7

238-5017

O-RING,0.07" Thk x 0.676" ID, -17, Cl 5, 75 Duro

-017, 70 Duro, .676" ID x .070" Thk

1шт.

8

A178745

SLEEVE

- wear, housing

1шт.

9

3173953R1

LOCK NUT,M20 x 2.5, Cl 8

NUT - lock, prevailing torque

1шт.

10

H312652

WASHER

- flat

1шт.

11

A159663

YOKE

- output, converter

1шт.

12

A175651

OIL SEAL,38.1mm ID x 52.44mm OD x 9.91mm Thk

- oil, yoke

1шт.

13

A159665

O-RING,0.139" Thk x 0.859" ID, -212, Cl 5, 75 Duro

- 55/64 x 1-9/64 x 9/64 inch, yoke sealing

1шт.

14

A31078

SNAP RING,2.062", Int, #206

Retaining, 2-7/32" OD 2.062", Int, #206

1шт.

15

A31260

BALL BEARING,25 mm ID x 52 mm OD x 15 mm

BEARING - ball

1шт.

16

A158354

RING

- oil seal

1шт.

17

A186527

SHAFT

- output

1шт.

18

238-5255

O-RING,0.139" Thk x 5.609" ID, -255, Cl 5, 75 Duro

1шт.

19

A186674

PUMP

ASSEMBLY - converter, Includes: Ref. 20 - 22

1шт.

119994A1R

REMAN-HYD PUMP

550, OUTPUT SHAFT, P.I.N. JAK0013968 AND AFTER, Reman for New PN A186674

1шт.

119994A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

20

A178375

BUSHING,47.66mm ID x 52.46mm OD x 15mm L

- pump housing

1шт.

21

A186708

OIL SEAL,47.57mm ID x 68.25mm OD x 8.33mm Thk

SEAL - oil, pump housing

1шт.

22

A178367

BUSHING,25.07mm ID x 28.02mm OD x 13mm L

- pump

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 21/64 x 43/64 x 1/16 inch

4шт.

24

826-8065

BOLT,Hex, M8 x 1.25 x 65mm, Cl 10.9

- hex, 8 - 1.25 x 65 mm, class 10.9

4шт.

25

238-6019

O-RING,0.07" Thk x 0.801" ID, -19, Cl 6, 90 Duro

1шт.

26

1348840C2

INSERT

- filter bypass

1шт.

27

218-1256

BHD LOCK NUT,Blkhd, 1 1/16"-12

NUT - hex, self-locking, bulkhead, 1-1/16-12 inch NF

1шт.
