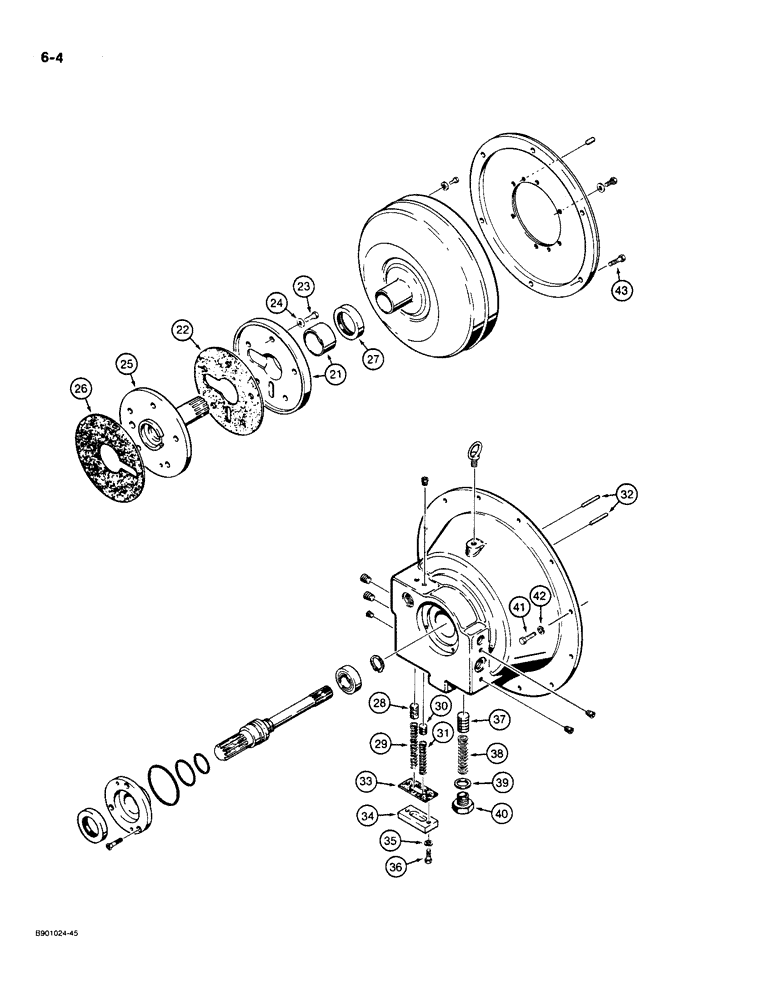

Запчасти Case 550 (6-04) - TORQUE CONVERTER ASSEMBLY, PRIOR TO P.I.N. JAK0013968 (06) - POWER TRAIN

R52028

CONVERTER

ASSEMBLY - torque, continued, Includes: Ref. 21 - 43

1шт.

21

N8984

ADAPTER

- torque converter, includes bushing

1шт.

22

N8985

GASKET

-, Serial Range: adapter-carrier

1шт.

23

826-10045

BOLT,Hex, M10 x 1.5 x 45mm, Cl 10.9

5шт.

24

N8992

WASHER

- special

5шт.

25

N8986

BEARING CARRIER

CARRIER - torque converter

1шт.

26

N8987

GASKET

-, Serial Range: carrier-housing

1шт.

27

N8990

OIL SEAL

SEAL - oil, adapter to rotating assembly

1шт.

28

N8995

PISTON

- pressure regulator valve, left-hand outer position

1шт.

29

N8996

SPRING

- pressure regulator valve, left-hand outer position

1шт.

30

N8997

PISTON

- relief valve, inlet port, left-hand inner position

1шт.

31

N8998

SPRING

- relief valve, inlet port, left-hand inner position

1шт.

32

N8994

SPLIT PIN/SAFETY PIN

PIN - piston retaining

2шт.

33

N8999

GASKET

- relief valve cover

1шт.

34

N9000

COVER

- left-hand relief valves

1шт.

35

N8992

WASHER

- lock, special

2шт.

36

826-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 10.9, Full Thd

- hex, 10 mm - 1.25 x 30 mm, class 10.9

2шт.

37

N9004

PISTON

- relief valve, outlet port, right-hand side

1шт.

38

N9003

SPRING

- relief valve, outlet port, right-hand side

1шт.

39

N9001

WASHER

- seal, relief valve plug

1шт.

40

N8991

PLUG

- relief valve, outlet port, right-hand side

1шт.

41

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

12шт.

42

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

12шт.

43

856-10035

BOLT,Hvy Hex, M10 x 35mm, Cl 10.9

- hex flange, 10 - 1.5 x 35 mm, class 10.9, to flywheel

6шт.
