(6-02) - TORQUE CONVERTER ASSEMBLY, PRIOR TO P.I.N. JAK0013968

Запчасти Case 550 (6-02) - TORQUE CONVERTER ASSEMBLY, PRIOR TO P.I.N. JAK0013968 (06) - POWER TRAIN

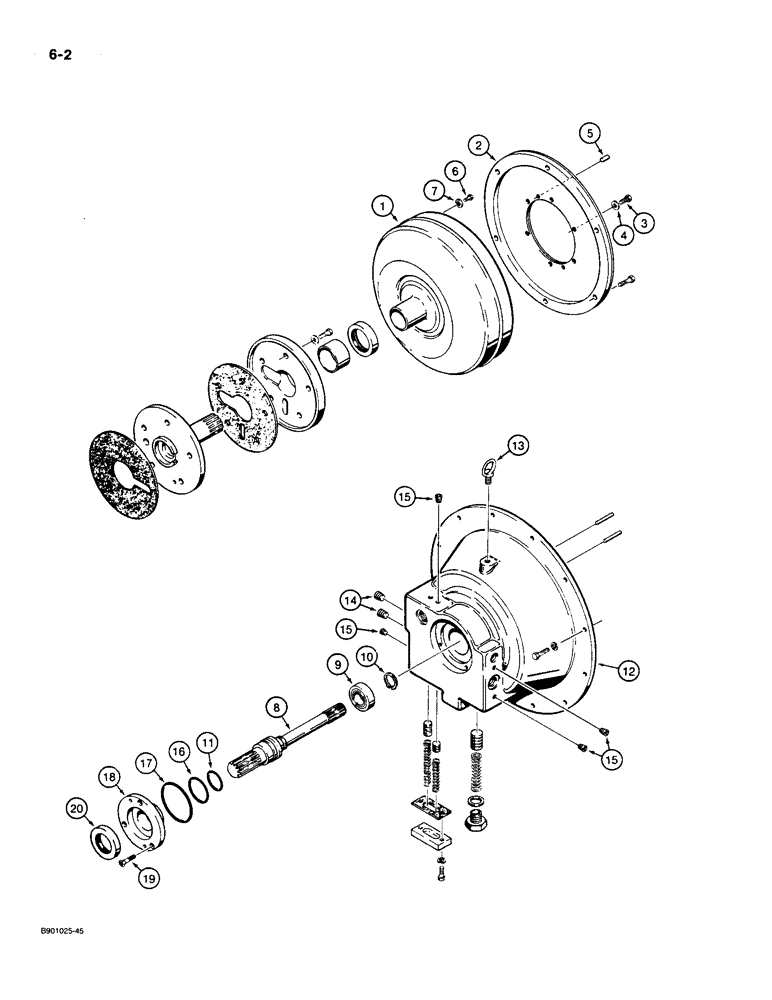

Схема запчастей Case 550 - (6-02) - TORQUE CONVERTER ASSEMBLY, PRIOR TO P.I.N. JAK0013968 (06) - POWER TRAIN
2
13
16
10
8
15
9
7
6
18
14
3
20
12
15
19
11
4
15
17
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

R52028

CONVERTER

ASSEMBLY - torque, Includes: Ref. 1 - 20

1шт.

N13044

CONVERTER

CORE ASSEMBLY - torque converter, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

ROTATING ASSEMBLY - torque converter

1шт.

2

N8976

LARGE PLATE

PLATE - adapter, torque, Serial Range: converter-flywheel

1шт.

3

826-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 10.9, Full Thd

- hex, 10 - 1.5 x 20 mm, Class 10.9

6шт.

4

N8977

WASHER

- special

6шт.

5

N8979

SPLIT PIN/SAFETY PIN

PIN - dowel, plate locating

2шт.

6

514-613

BOLT,Hex, M8 x 1 x 8mm, Cl 8.8, Full Thd

- hex, 8 mm - 1 x 8 mm, drain

2шт.

7

N8978

WASHER

- seal

2шт.

8

N8980

SHAFT

- torque converter assembly

1шт.

9

N8981

BALL BEARING

BEARING - shaft

1шт.

10

N8983

RING

- snap, bearing retaining

1шт.

11

N8982

O-RING

O-RING - shaft

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - torque converter assembly

1шт.

13

NSS

NOT SOLD SEPARAT

EYEBOLT - lift

1шт.

14

221-841

PLUG

- hex socket, 1/4 inch taper PT

2шт.

15

221-849

PLUG,Hex Soc, 1/8"-27

- hex socket, 1/8 inch taper PT

4шт.

16

N9002

O-RING

- housing, small

1шт.

17

N8993

O-RING

- housing, large

1шт.

18

N8988

COVER

- bushing, shaft

1шт.

19

861-6016

HEX SOC SCREW,M6 x 16mm, Cl 12.9

BOLT - hex socket, 6 mm - 1 x 16 mm, class 12.9

3шт.

20

N8989

OIL SEAL

SEAL - oil, shaft, drive shaft end

1шт.
