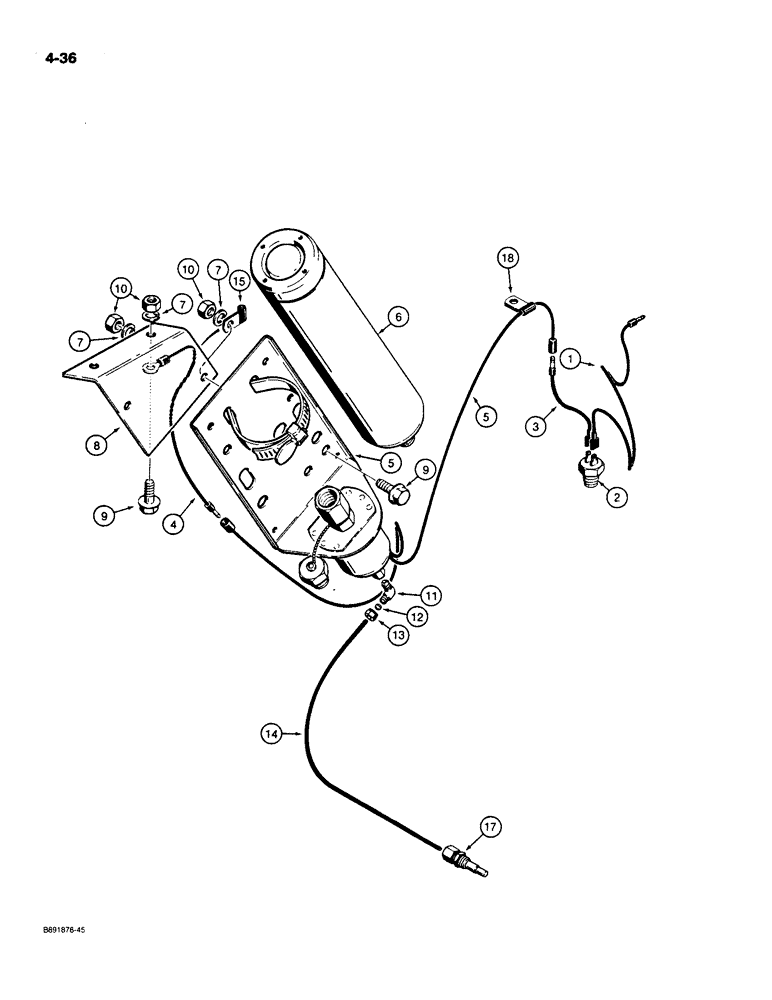

Запчасти Case 550 (4-36) - COLD START SYSTEM (04) - ELECTRICAL SYSTEMS

1

R49931

ELECTRICAL WIRE

WIRE - jumper, main harness to temperature switch

1шт.

2

A172117

SWITCH

- temperature, at engine thermostat on cylinder head

1шт.

3

R50510

ELECTRICAL WIRE

WIRE - temperature switch to injection valve wire

1шт.

4

R50511

ELECTRICAL WIRE

WIRE - injection valve ground

1шт.

5

A172116

VALVE

ASSEMBLY - starting fluid injection, with bracket, component parts not serviced separately, 3 cc injection volume

1шт.

6

A171940

CYLINDER

FLUID - starting, cylinder

1шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

R49374

SUPPORT

BRACKET - mounting, injection valve assembly

1шт.

9

121-234

BOLT,Hex Flg, 3/8"-16 x 1", G8, Full Thd

4шт.

10

425-106

NUT,3/8"-16, Cl 5

4шт.

11

222-615

ELBOW,90 Degree, 5/16"-24 x 1/8" NPT, Comp

1/8 tube, Incl. Ref 12 & 13 90º, 5/16"-24 x 1/8" NPT, Comp

1шт.

12

222-650

SLEEVE,1/8" Tube, Comp

Tapered 1/8" Tube, Comp

1шт.

13

222-660

FLANGE NUT,5/16"-24, 45 Degree Fl, Comp

1/8" tube OD 5/16"-24, 45º Fl, Comp

1шт.

14

R40211

PLASTIC-RUBBER TUBE,0.125" OD x 10" L

TUBE - nylon, 10 inch (254 mm) long, cut from L60539 bulk

1шт.

Cold Start Installation Kits can be ordered from the Machinery Price List. See the Machinery Price List for the correct kit.

1шт.

15

D43839

CLAMP

- ground wire, at injection valve mounting bracket

1шт.

17

A172900

NOZZLE CAP

NOZZLE ASSEMBLY - dual injection orifice, into side of intake manifold, component parts not serviced separately

1шт.

18

D43839

CLAMP

- P-style, holds nylon tube on top of bracket at engine cylinder head, see Figure 4-12 for hardware

1шт.

L60539

TUBE,0.125" OD x 168" L

- nylon, bulk, 14 ft (427 cm) long

1шт.

Cold Start Installation Kits can be ordered from the Machinery Price List. See the Machinery Price List for the correct kit.

1шт.
