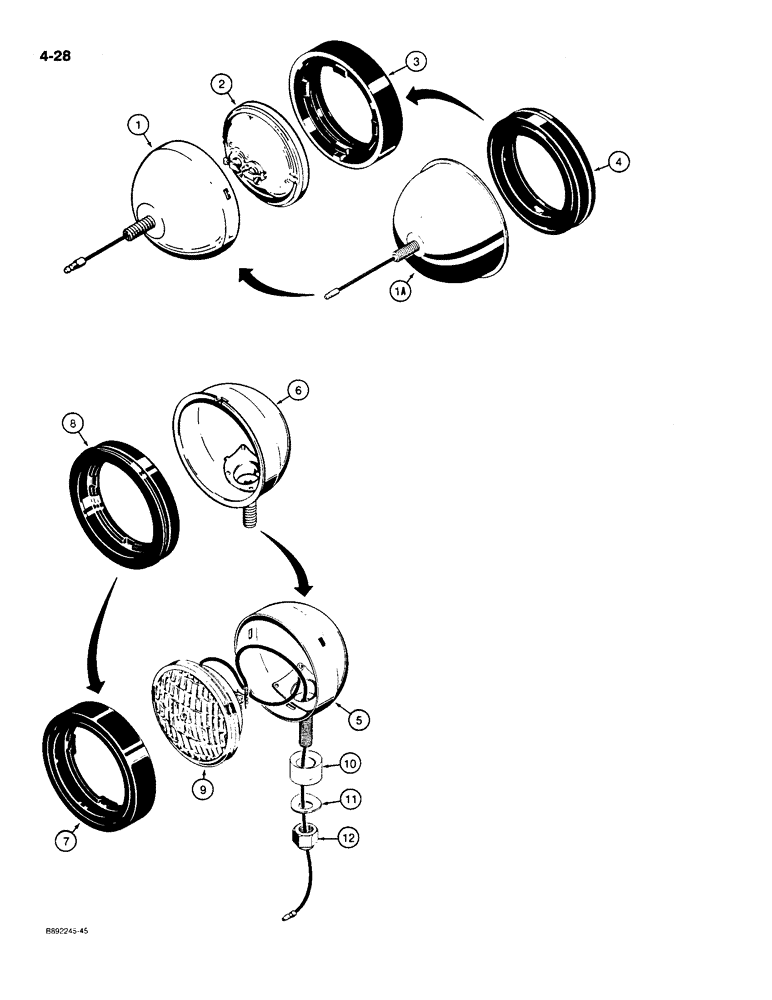

Запчасти Case 550 (4-28) - INCANDESCENT LAMP ASSEMBLIES, USED ON MODELS WITHOUT ROPS CANOPY (04) - ELECTRICAL SYSTEMS

D88547

LAMP BASE

LAMP ASSEMBLY - head, interchangeable with A59701 lamp assembly, models without ROPS canopy, Includes: Ref. 1 - 4

2шт.

1

NSS

NOT SOLD SEPARAT

SHELL - lamp, uses Ref. 3 retainer only

1шт.

1a

NSS

NOT SOLD SEPARAT

SHELL - lamp, uses Ref. 4 retainer only

1шт.

2

373662R1

LAMP

BULB - sealed beam, No. 4411

1шт.

3

A25213

RETAINER

- lamp, locks to shell with three rubber tabs, if used

1шт.

4

N6160

LAMP

RETAINER - lamp, locks over shell flange, if used

1шт.

D34934

LAMP

ASSEMBLY - rear, models without ROPS canopy, Includes: Ref. 5 - 12

1шт.

5

NSS

NOT SOLD SEPARAT

SHELL - lamp, uses Ref. 7 retainer only, rear assembly

1шт.

6

NSS

NOT SOLD SEPARAT

SHELL - lamp, uses Ref. 8 retainer only, rear assembly

1шт.

7

A25213

RETAINER

- locks to shell with 3 rubber tabs, if used, rear lamp assembly

1шт.

8

N6160

LAMP

RETAINER - locks over shell flange, if used, rear lamp assembly

1шт.

9

373662R1

LAMP

BULB - sealed unit, No. 4411, rear lamp assembly

1шт.

10

D37048

BUSHING

- pivot, rear lamp assembly

1шт.

11

D37049

WASHER

- special, rear lamp assembly

1шт.

12

131-28

LOCK NUT,1/2"-20, GB

NUT - hex, self-locking, 1/2 inch NF, rear lamp assembly

1шт.
