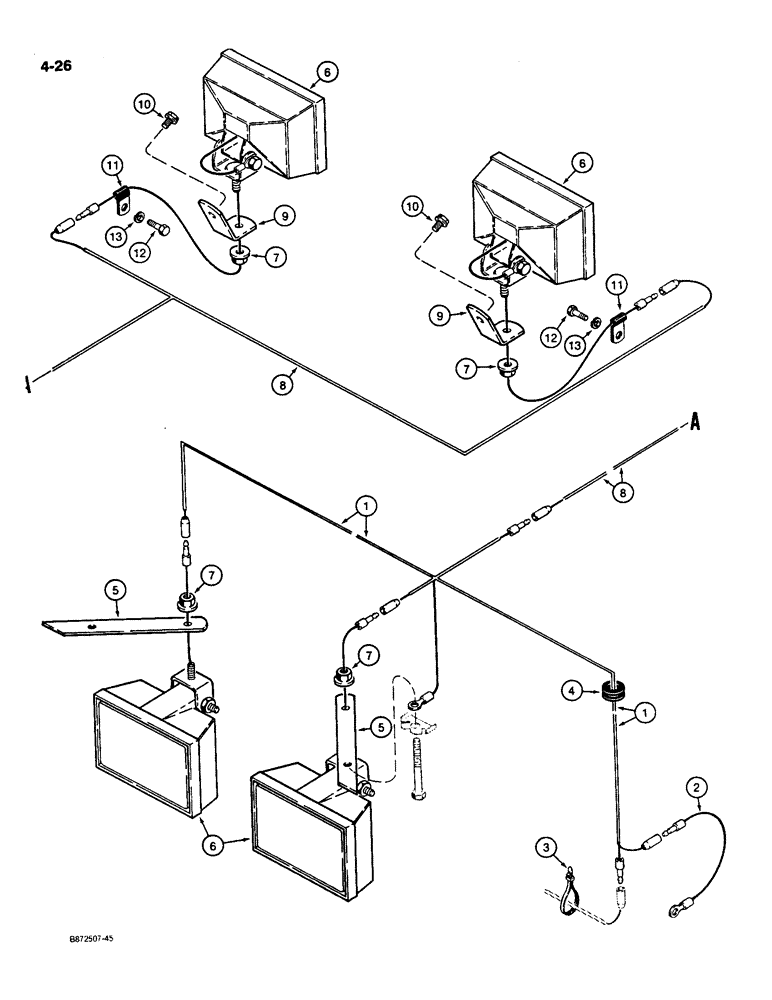

Запчасти Case 550 (4-26) - HALOGEN LAMPS AND WIRING, MODELS WITH ROPS CANOPY (04) - ELECTRICAL SYSTEMS

1

R47539

HARNESS

- main, Serial Range: harness-lamps

1шт.

2

R47747

ELECTRICAL WIRE

WIRE - ground, rear lamp harness

1шт.

3

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

4

D37936

GROMMET

- rear lamp harness through hydraulic reservoir frame

1шт.

5

R53887

SUPPORT

BRACKET - rear lamp mounting, use rear screen mounting hardware

2шт.

6

F96838

LAMP

ASSEMBLY - front and rear flood, parts list Figure 4-30

4шт.

7

131-930

FLANGE NUT,Hex Serr, 1/2" - 13, Gr 5

- hex, flange type, special locking, 1/2 inch NC

4шт.

8

R47540

HARNESS

- front lamps

1шт.

9

R54395

BRACKET

- front lamp mounting

2шт.

10

121-428

FLANGE BOLT,Hex, 1/2" - 13 x 1", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1", G8, Full Thd

2шт.

11

D43839

CLAMP

- front lamp harness to ROPS canopy

2шт.

12

113-205

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.
