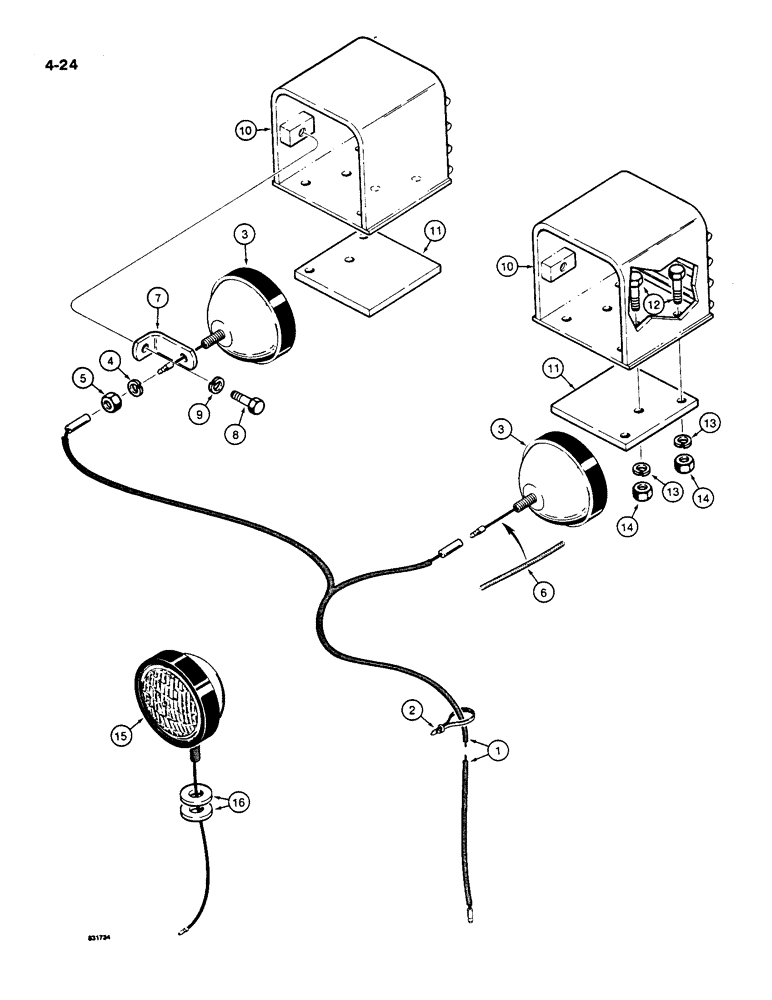

Запчасти Case 550 (4-24) - LAMPS AND WIRING, MODELS WITHOUT ROPS CANOPY (04) - ELECTRICAL SYSTEMS

1

R48613

ELECTRICAL WIRE

WIRE - main wiring harness to head lamps

1шт.

2

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

3

D88547

LAMP BASE

LAMP ASSEMBLY - head, parts list Figure 4-28

2шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

5

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

6

D34933

LOOM

- head lamp wire

2шт.

7

R27714

BRACKET

- head lamp mounting

2шт.

8

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

R48585

COVER

GUARD - head lamp

2шт.

11

R48588

LARGE PLATE

PLATE - guard mounting

2шт.

12

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

14

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

15

D34934

LAMP

ASSEMBLY - rear, parts list figure 4-28, assembly includes mounting hardware

1шт.

16

D31328

WASHER

- special

2шт.
