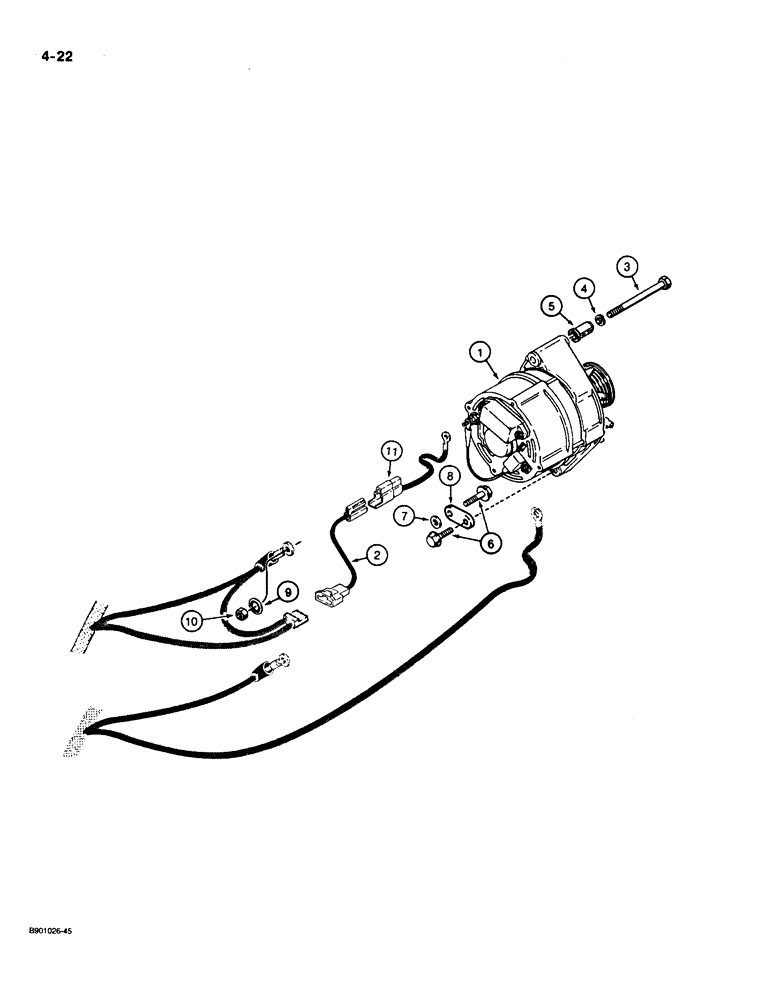

Запчасти Case 550 (4-22) - ALTERNATOR MOUNTING AND ELECTRICAL CONNECTION (04) - ELECTRICAL SYSTEMS

1

A186125

ALTERNATOR

ALTERNATOR ASSEMBLY - Bosch, parts list Figure 4-6, no longer used, order A187873 alternator and L129011 jumper wire (Ref. 11) for service

1шт.

1

AR186125GV

ALTERNATOR

Value

1шт.

1

AR186125

REMAN-ALTERNATOR

Reman For New PN A186125

1шт.

1

AC186125

CORE-ALTERNATOR

Return Number

1шт.

1

A187873

ALTERNATOR,12V, 65A

ALTERNATOR ASSEMBLY - Bosch, parts list Figure 4-8

1шт.

1

A187873GV

ALTERNATOR

Value

1шт.

2

R53471

ELECTRICAL WIRE

WIRE WIRE - adapter, to main wiring harness

1шт.

3

814-10100

BOLT,Hex, M10 x 1.5 x 100mm, Cl 8.8

BOLT - hex, 10 - 1.5 x 100 mm

1шт.

4

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

1шт.

5

J902469

SPACER

SPACER - alternator mounting, upper

1шт.

6

855-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 10.9

BOLT - hex flange, 8 - 1.25 x 20 mm, class 10.9

2шт.

7

A140282

WASHER,9.78mm ID x 19.66mm OD x 0.81mm Thk

WASHER - flat, 3/8 inch, hardened

1шт.

8

J903089

SUPPORT

BRACE - alternator mounting

1шт.

9

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, , Harness connection to alternator Int Tooth, 1/4"

1шт.

10

825-1106

NUT,Hex, M6, Cl 8

NUT - hex, 6 mm - 1

1шт.

11

L129011

ELECTRICAL WIRE

WIRE WIRE - adapter, used on models, between R53471 adapter wire (Ref. 2) and a service replacement A187873 alternator, if used, Serial Range: -JAK0013968

1шт.
