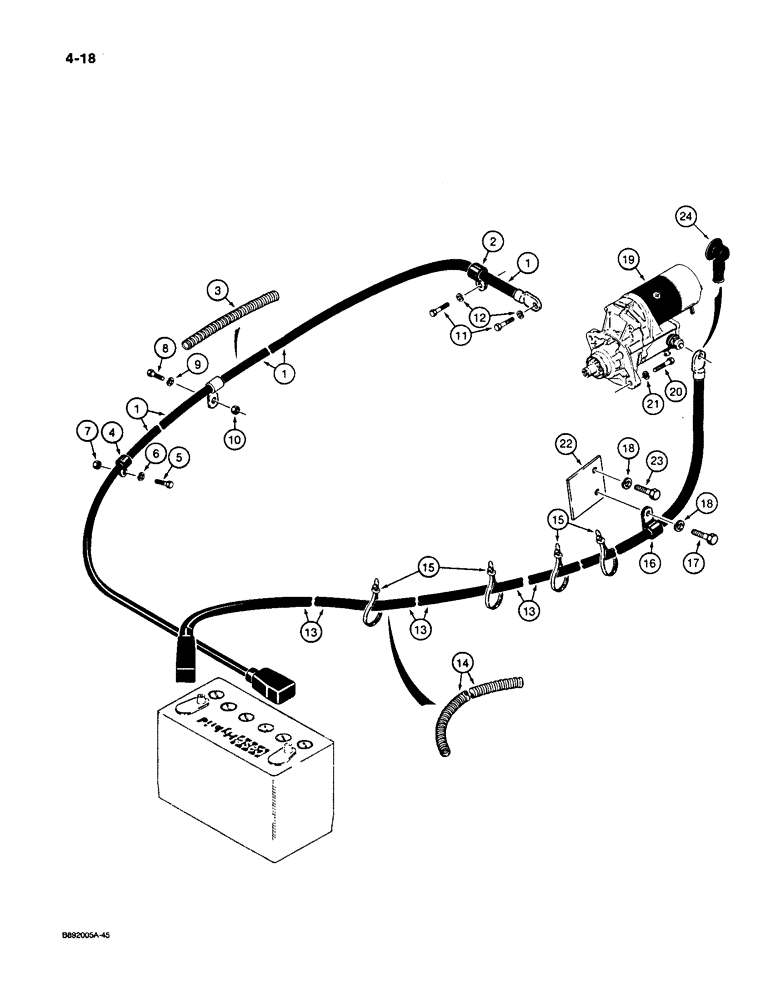

Запчасти Case 550 (4-18) - BATTERY CABLES AND CONNECTIONS (04) - ELECTRICAL SYSTEMS

1

R53052

CABLE

CABLE - battery, negative, includes clamp

1шт.

2

D34174

CLAMP,5/8", 1/2" Bolt

CLAMP - negative battery cable, use torque converter mounting hardware (Refs. 11 and 12), if used

1шт.

3

R42370

CABLE SHEATH

Conduit - 70 inch (1778 mm) long, negative battery cable, cut from R44806 conduit (Ref. 14)

1шт.

4

D20302

CLAMP,7/8", Insul, 3/8" Bolt

CLAMP - negative battery cable to seat and tank frame

1шт.

5

121-235

FLANGE BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 1-1/4 inch, grade 8

1шт.

6

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

7

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

8

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

1шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

10

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

11

814-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

BOLT, Hex, M10 x 30, 8.8

2шт.

12

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

2шт.

13

R47200

CABLE

CABLE - battery, positive

1шт.

14

R44806

LOOM

CONDUIT - positive battery cable, 88-1/2 inch (2248 mm) long

1шт.

15

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP STRAP - tie, 15 inch, nylon

1шт.

16

D41564

- positive battery cable and main harness at decal plate below starter

1шт.

17

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

BOLT - hex, 12 - 1.75 x 25 mm

1шт.

18

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

2шт.

19

A170746

STARTING MOTOR

STARTER ASSEMBLY - parts list figures 4-2 and 4-4

1шт.

19

86982709R

REMAN-STARTER,12V, 2.5kW

REMANUFACTURED STARTING MOTOR

1шт.

19

86982709C

CORE-STARTER,12V, 2.5kW

Return Part Number, STARTING MOTOR

1шт.

19

104452A2R

REMAN-STARTER

Remanufactured STARTER 12 volt, 2.5KW

1шт.

19

104452A1C

CORE-STARTER

Return Part Number, STARTER 12 volt, 2.5KW

1шт.

20

856-10035

BOLT,Hvy Hex, M10 x 35mm, Cl 10.9

BOLT - hex flange, 10 - 1.5 x 35 mm, class 10.9, use with Loctite 242

2шт.

21

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

2шт.

22

R51762

LARGE PLATE

PLATE, LARGE PLATE - below starter, includes jump start decal, for decal see Figure 9-46

1шт.

23

814-12020

BOLT,Hex, M12 x 1.75 x 20mm, Cl 8.8, Full Thd

BOLT- hex, 12 - 1.75 x 20 mm

1шт.

24

L126713

BOOT

BOOT - battery cable at starter, if used

1шт.
