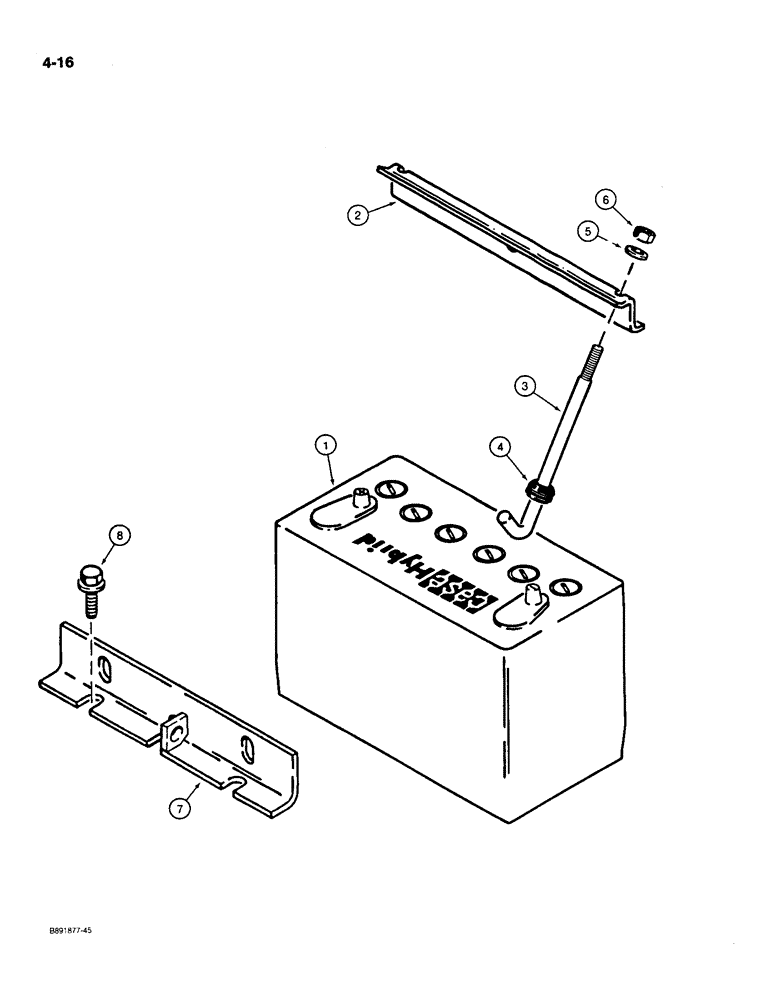

Запчасти Case 550 (4-16) - BATTERY MOUNTING (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

BATTERY - 12 volt, 950 amperes, dry (replaces BMF31G)

1шт.

2

R51648

LARGE PLATE

BRACKET - battery retaining

1шт.

3

D59707

BOLT

- J-type, 10 inch (254 mm) long

2шт.

4

49566

GROMMET

- J-bolt

2шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

6

131-1216

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

2шт.

7

R50651

BRACKET

PLATE - battery mounting, rear

1шт.

8

121-429

FLANGE BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 8, Full Thd

BOLT, Hex Flg, 1/2"-13 x 1 1/4", G8, Full Thd

2шт.
