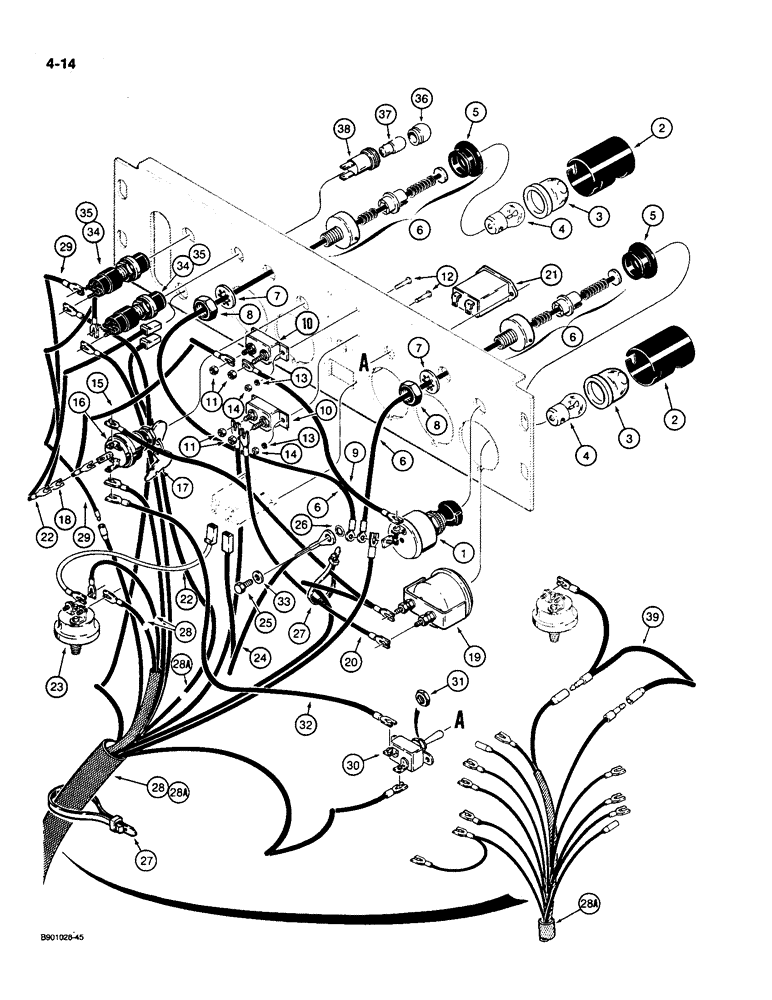

Запчасти Case 550 (4-14) - INSTRUMENT PANEL WIRING (04) - ELECTRICAL SYSTEMS

1

D35065

SWITCH

- lamps, if used

1шт.

D33212

INTERIOR LIGHT

LAMP ASSEMBLY - instrument panel, if used, Includes: Ref. 2 - 6

2шт.

2

R22237

COVER

- lamp

1шт.

3

R22232

SIGHTGLASS

LENS - lamp

1шт.

4

71421

BULB,R5W, 12V, 5W

- No. 67

1шт.

5

NSS

NOT SOLD SEPARAT

INSULATOR - rubber

1шт.

6

NSS

NOT SOLD SEPARAT

BODY - lamp, includes wire

1шт.

7

193-34

LOCK WASHER,Int Tooth, 5/8"

WASHER, LOCK, , If used Int Tooth, 5/8"

2шт.

8

129-167

JAM NUT,Jam, 5/8"-18, G5

- hex, jam, 5/8 inch NF, if used

2шт.

9

R47348

ELECTRICAL WIRE

WIRE - lamp switch to upper circuit breaker, if used

1шт.

10

R45475

BREAKER

- circuit, 40 amp, one used on models without any lamps; two used on models with lamps, if used, Includes: Ref. 11

1-2шт.

11

131-47

LOCK NUT,Prev Torque, Hex, #10 - 32, Gr B

NUT - hex, self-locking, No. 10 - 32 NF

2шт.

12

182-508

SCREW,Cross Pan Hd, #8 - 32 x 3/8"

- machine, pan head, No 8 NC x 3/8 inch

2-4шт.

13

192-16

LOCK WASHER,Helical Spring, #8, 0.17" ID, CST, ZND

Washer, Lock, #8

2-4шт.

14

129-16

NUT,#8-32

2-4шт.

15

R50237

ELECTRICAL WIRE

WIRE - upper circuit breaker to key switch, models with lamps if used

1шт.

16

D35092

SWITCH

- key, ignition, if used, Includes: Ref. 17

1шт.

17

REF

INSTRUCTION

KEY - ignition, set of two, short, not shown, comes with Ref. 16 key switch, service with R30074 key set

1шт.

17

R30074

SET

KEY - ignition, set of two, long, service replacement

1шт.

18

R43249

SLEEVE

WIRE - jumper, key switch to horn switch

1шт.

19

R38643

ELECTRICAL GAUGE

AMMETER - electrical

1шт.

20

R47348

ELECTRICAL WIRE

WIRE - ammeter to lower circuit breaker

1шт.

21

L107631

METER

HOURMETER - engine, mounting hardware on Figure 4-12

1шт.

22

R38765

ELECTRICAL WIRE

WIRE - hourmeter to pressure switch and at ignition switch to transmission filter lamp, 40 inch (1016 mm) long, replaces 9 inch (229 mm) long production wire

1-2шт.

23

107436C1

SWITCH

- pressure, Start Serial: JAK0013968

1шт.

24

R47428

ELECTRICAL WIRE

WIRE - hourmeter ground, bolts to engine frame upright

1шт.

25

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

26

193-60

LOCK WASHER,Int Tooth, 1/4"

WASHER, LOCK, Int Tooth, 1/4"

1шт.

27

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

28

R50989

HARNESS

- main wiring, Serial Range: -JAK0013968

1шт.

28a

R57618

HARNESS

- main wiring, Start Serial: JAK0013968

1шт.

29

R50367

ELECTRICAL WIRE

WIRE - cold start switch, if used

1шт.

30

R50405

SWITCH

- toggle, fuel shutoff, used on models with a turbocharger only

1шт.

31

N13588

SPECIAL NUT

- toggle switch

1шт.

32

R50517

ELECTRICAL WIRE

WIRE - toggle switch to ignition switch, models with a turbocharger only

1шт.

33

195-518

WASHER,1/4", SAE

- flat, 9/32 x 5/8 x 1/16 inch

1шт.

34

S241920

SWITCH

- push button, horn and cold start

2шт.

35

B17425

LOCTITE

SEALANT - pipe threads, Teflon, Loctite No. 92, 50 ml tube, use to seal the rubber boot of Ref. 34 switch

1шт.

109369C91

LIGHT ASSY.

LAMP ASSEMBLY - indicator, transmission filter, if used, if used, Includes: Ref. 36 - 38

1шт.

36

71652C1

LENS

- lamp

1шт.

37

200557H1

BULB,C2V, #1815, 14V

- lamp, No. 1815

1шт.

38

NSS

NOT SOLD SEPARAT

BODY - lamp

1шт.

39

R43547

CABLE

WIRE - jumper, main harness to pressure switch, if used

1шт.
