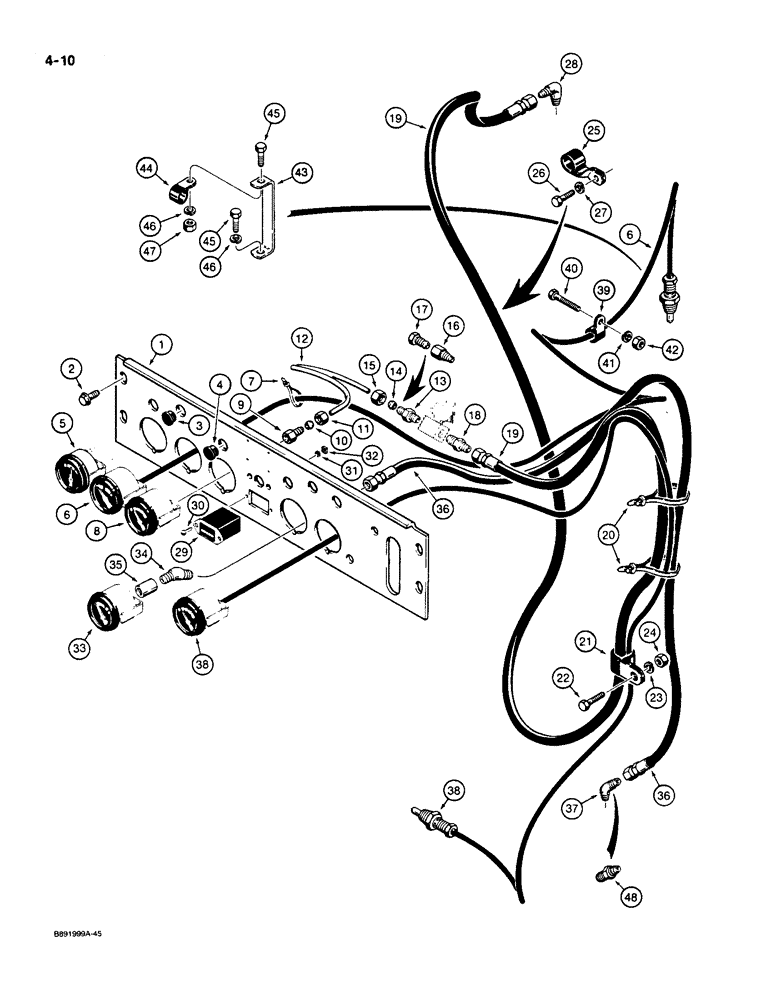

Запчасти Case 550 (4-10) - INSTRUMENT PANEL AND GAUGES (04) - ELECTRICAL SYSTEMS

1

R57296

PANEL

- instrument, includes decal, for decal see Figure 9-46

1шт.

2

121-233

FLANGE BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

BOLT - hex flange, 3/8 NC x 3/4 inch, grade 8

4шт.

3

353-407

PLUG,Dome, .687" hole, Nylon

- 11/16 inch diameter, if used

1шт.

4

353-404

PLUG,Dome, .500" hole, Nylon

Used when turbocharger fuel shutoff switch is not used Dome, .500" hole, Nylon

1шт.

5

R38643

ELECTRICAL GAUGE

AMMETER - electrical

1шт.

6

R52133

GAUGE

- engine temperature

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

8

R49132

GAUGE ASSY.

GAUGE - engine oil pressure

1шт.

D35091

PIPE FITTING

ADAPTER - straight, engine oil pressure gauge

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

10

D37176

SLEEVE

- compression fitting

1шт.

11

D37362

TUBE NUT

- compression fitting

1шт.

12

R40211

PLASTIC-RUBBER TUBE,0.125" OD x 10" L

TUBE - nylon, 10 inch (254 mm) long, cut from L60539, see below, engine oil pressure

1шт.

D35816

CONNECTOR, ELEC

ADAPTER - straight, production part, for service order 222-400 adapter, see Refs. 13 - 15

1шт.

13

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

14

D37176

SLEEVE

- compression

1шт.

15

D37362

TUBE NUT

- adapter

1шт.

222-400

HYD CONNECTOR,1/8" NPT x 5/16"-24

ADAPTER - compression, 1/8 tube OD x 1/8 inch PT, service replacement for D35816 adapter, see Refs.16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

17

222-500

TUBE NUT,5/16" - 24 NPT

NUT - hex, 1/8 tube OD x 5/16-24 inch, includes sleeve

1шт.

18

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.

19

D95116

HOSE

- 44 inch long, engine oil pressure

1шт.

20

L18337

CABLE TIE,9.95"-12.1" lg

STRAP - tie, 15 inch, nylon

1шт.

21

D40471

CLAMP

- engine oil pressure hose and torque converter temperature, Serial Range: cable-firewall

1шт.

22

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

23

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

24

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

L60539

TUBE,0.125" OD x 168" L

- nylon, 14 ft (427 cm) long

1шт.

25

R40419

CLAMP

- twist, engine oil pressure hose

1шт.

26

814-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

- hex, 12 - 1.75 x 25 mm

1шт.

27

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

28

218-481

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

- 90 degree, 7/16-20 flare x 1/8 inch PT

1шт.

29

L107631

METER

HOURMETER - engine

1шт.

30

169-169

SCREW,Sl Fil Hd, #5 - 40 x 1/2"

- machine, Fillister, No. 5 NC x 1/2 inch

2шт.

31

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

2шт.

32

129-44

SQUARE NUT,Sq, #5-40

2шт.

33

R53929

GAUGE

- transmission oil pressure

1шт.

34

218-531

ELBOW,45 Degree, 7/16-20" 37 Degree x 1/8"-27, NPTF

- 45 degree, 7/16-20 flare x 1/8 inch PT

1шт.

35

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

36

R56603

HOSE ASSY.

HOSE - 30 inch long, transmission oil pressure

1шт.

37

218-491

ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 1/4" - 18 Male NPTF

- 90 degree, 7/16-20 flare x 1/4 inch PT, Serial Range: -JAK0013968

1шт.

38

R54146

GAUGE

- torque converter temperature, includes tube and connector

1шт.

39

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- engine temperature cable at right-hand master brake cylinder

1шт.

40

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

1шт.

41

492-11038

LOCK WASHER,3/8"

1шт.

42

425-106

NUT,3/8"-16, Cl 5

1шт.

43

R50427

BRACKET

- engine temperature cable, mounts to front of engine

1шт.

44

515-2348

CLAMP,4.8mm ID, 10.3mm Bolt Hole, P Type

- engine temperature cable to bracket

1шт.

45

814-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

46

892-1110

LOCK WASHER,M10

WASHER - lock, 10 mm

2шт.

47

825-1110

NUT,M10, Cl 8

hex M10, Cl 8

1шт.

48

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT, Start Serial: JAK0013968

1шт.
