Запчасти Case 550 (3-12) - FUEL INJECTION PUMP AND DRIVE, 4-390 ENGINE, 4T-390 ENGINE (03) - FUEL SYSTEM

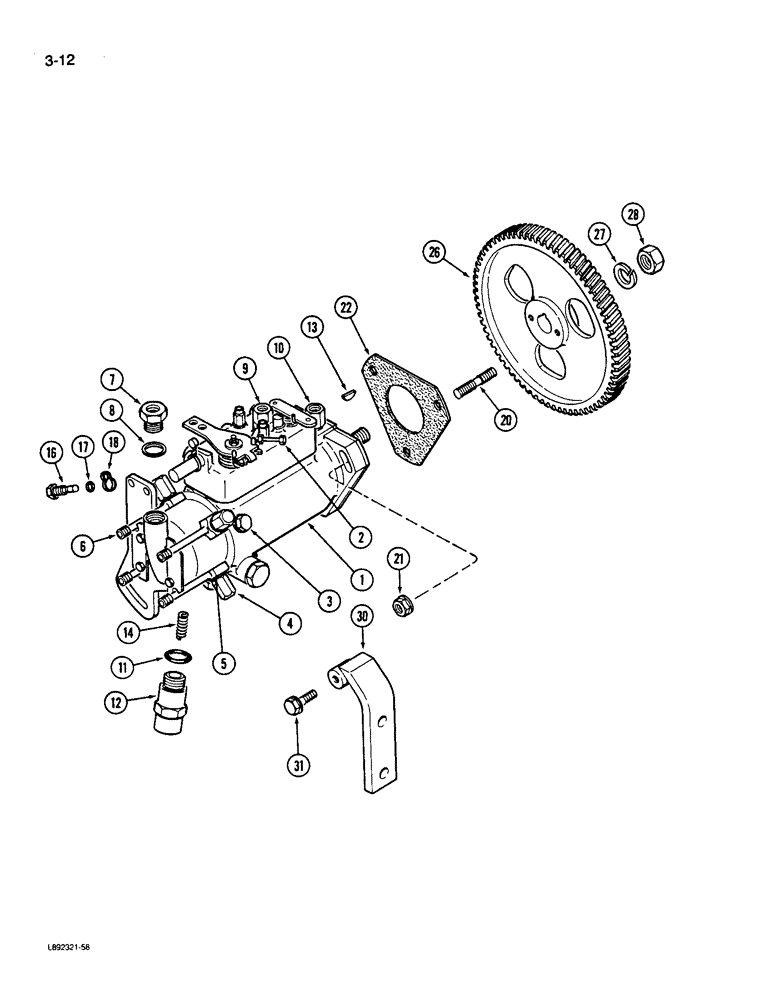

Схема запчастей Case 550 - (3-12) - FUEL INJECTION PUMP AND DRIVE, 4-390 ENGINE, 4T-390 ENGINE (03) - FUEL SYSTEM
8
12
11
30
17
18
6
2
13
20
14
27
16
4
28
5
10
1
22
21
9
26
3
7
31

Артикул

Название

Примечание

Количество

1

J916523

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new (2200 RPM) (4-390), Includes: Ref. 2 - 18

1шт.

1

JR916523

REMAN-INJECTION PUMP

Pump Assembly fuel injection, remanufactured (4-390) Includes: Ref. 2 - 18

1шт.

1

JC916523

CORE-INJECTION PUMP

Return Part Number use this part number to return pump core for credit, Includes: Ref. 2 - 18

1шт.

1

J917063

PUMP, FUEL INJECTION

PUMP, INJECTION PUMP ASSEMBLY - fuel injection, new (2200 RPM) (4T-390), Includes: Ref. 2 - 18

1шт.

1

JR917063

REMAN-INJECTION PUMP

Pump Assembly - fuel injection, remanufactured (4T-390), Includes: Ref. 2 - 18

1шт.

1

JC917063

CORE-INJECTION PUMP

Return Part Number use this part number to return pump core for credit, Includes: Ref. 2 - 18

1шт.

2

J904637

SET SCREW

SCREW - adjusting, low idle

1шт.

3

K963867

SCREW

SCREW ASSEMBLY - bleed, pump head

1шт.

4

J904646

BANJO BOLT

BOLT - banjo

4шт.

5

J904644

WASHER

WASHER - sealing

9шт.

6

K962755

ADAPTER

FITTING - banjo

4шт.

7

J904641

FITTING

FITTING - inlet

1шт.

8

K962748

WASHER

WASHER - inlet fitting, copper

1шт.

9

J904640

VENT

ORIFICE - bleed

1шт.

10

J904643

FITTING

FITTING - return

1шт.

11

J904635

O-RING

O-RING - solenoid

1шт.

12

J904630

SOLENOID

SOLENOID ASSEMBLY - shut down, 12 volt

1шт.

13

836-4065

WOODRUFF KEY,M4 x 6.5 x 15.72

WOODRUFF KEY, M4 x 6.5 x 15.72

1шт.

14

J904777

SPRING

SPRING - plunger

1шт.

16

J904778

BOLT

BOLT - hex, locking device

1шт.

17

J904780

SEAL

SEAL - locking bolt

1шт.

18

J904779

WASHER

WASHER - locking

1шт.

20

J902501

STUD

STUD - pump mounting, 8 mm - 1.25 x 48 mm

3шт.

21

J900589

NUT

NUT - hex flange, 8 mm

3шт.

22

J914389

GASKET

GASKET - pump mounting

1шт.

26

J914912

GEAR

GEAR - pump drive

1шт.

27

192-24

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

1шт.

28

J903738

NUT

NUT - hex, 14 mm

1шт.

30

J905387

BRACE

BRACE - fuel pump

1шт.

31

845-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

BOLT - hex flange, 8 mm - 1.25 x 20 mm

3шт.

Выбрано товаров: 30
