Запчасти Case 550 (3-10) - FUEL FILTER, 4-390 ENGINE, 4T-390 ENGINE (03) - FUEL SYSTEM

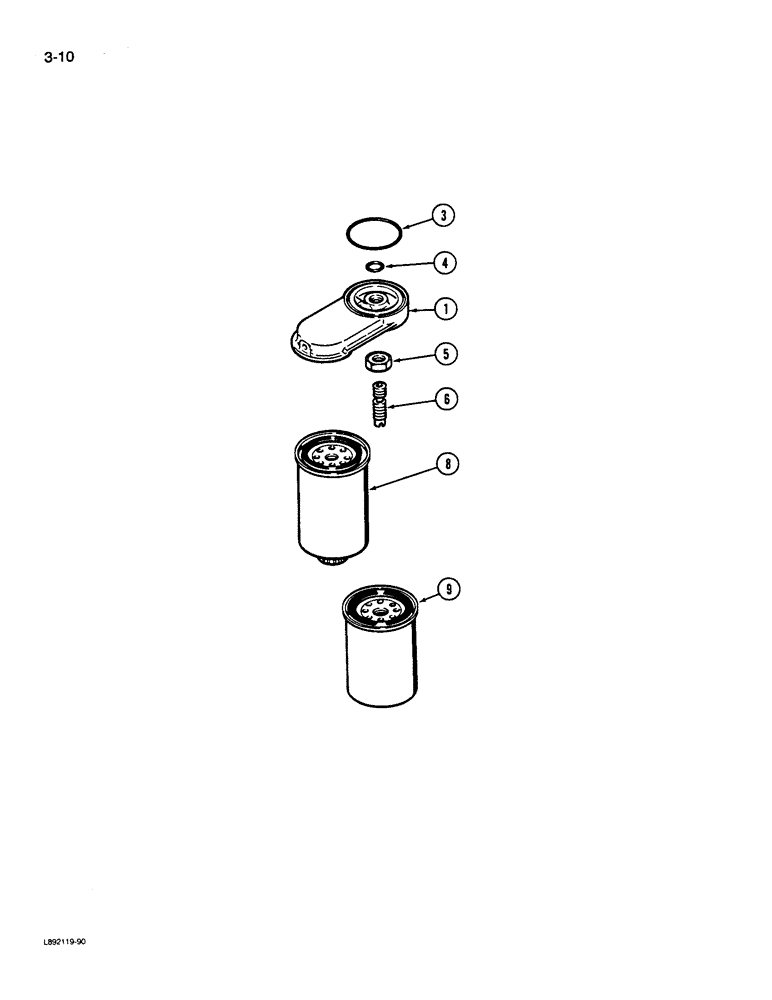

Схема запчастей Case 550 - (3-10) - FUEL FILTER, 4-390 ENGINE, 4T-390 ENGINE (03) - FUEL SYSTEM
3
8
6
5
1
4
9

Артикул

Название

Примечание

Количество

1

J915240

SUPPORT

HEAD ASSEMBLY - fuel filter

1шт.

3

J906694

SEALING RING,Square, 1.68mm Thk x 69.57mm ID, -39

O-RING - sealing, 70 mm ID

1шт.

4

J906695

SEAL,Square, 0.103" Thk x 0.549" ID, -113

O-RING - sealing, 14 mm ID

1шт.

5

J903293

JAM NUT

- hex, 16 mm - 2.0

1шт.

6

J903845

BANJO BOLT

ADAPTER - fuel

1шт.

7

A77470

SEPARATOR

KIT - fuel filter, Includes: Ref. 8 and 9

1шт.

8

J903410

FILTER

- fuel, primary

1шт.

9

J903640

FILTER, FUEL

FILTER - fuel, secondary

1шт.

Выбрано товаров: 8
