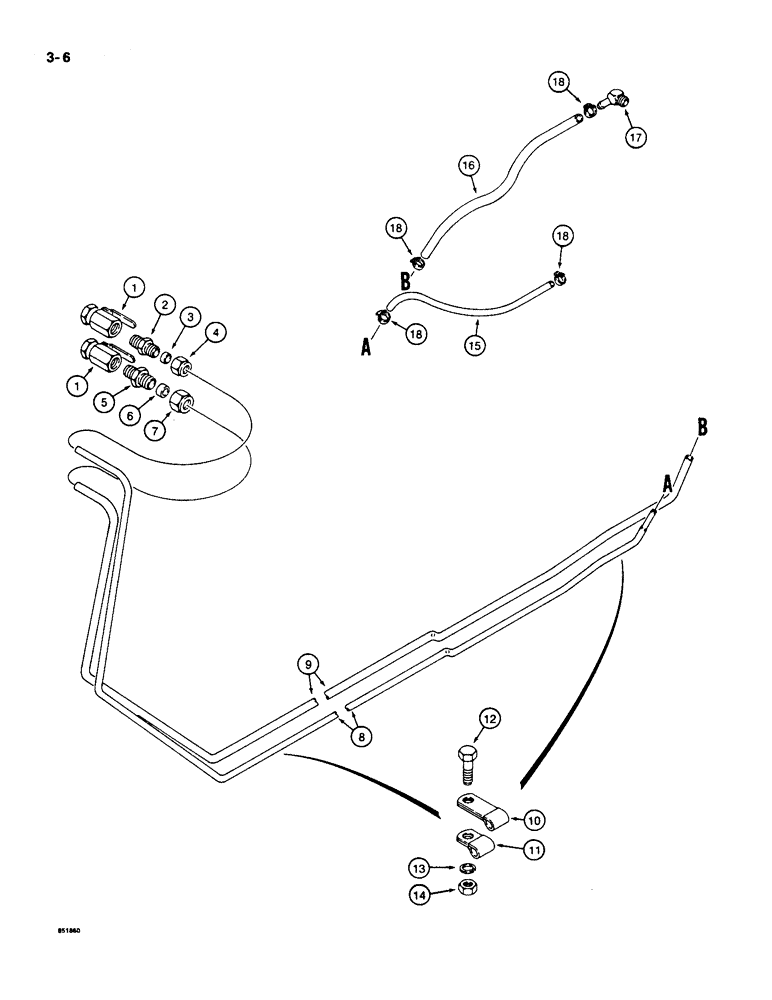

Запчасти Case 550 (3-06) - FUEL LINES (03) - FUEL SYSTEM

1

R47797

VALVE

- shutoff, fuel tank

2шт.

222-23

FITTING,1/2"-24 x 1/4" NPTF w/Nut

ADAPTER - compression, 1/4 tube OD x 1/4 inch PT, upper, Includes: Ref. 2 - 4

1шт.

2

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

3

222-102

SLEEVE,1/4" Tube

1шт.

4

87017024

TUBE NUT,1/2"-24

NUT - hex, 1/4 tube OD x 1/2-24 inch

1шт.

222-25

HYD CONNECTOR,9/16"-24 x 1/4" NPTF w/Nut

ADAPTER - compression, 5/16 tube OD x 1/4 inch PT, lower, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

BODY - adapter

1шт.

6

222-103

SLEEVE,5/16" Tube

1шт.

7

222-113

TUBE NUT,9/16"-24

NUT - hex, 5/16 tube OD x 9/16-24 inch

1шт.

8

R50607

FUEL TUBE,0.25" OD

TUBE - upper, fuel return, 1/4 inch OD

1шт.

9

R50606

FUEL TUBE,0.312" OD

TUBE - lower, fuel supply, 5/16 inch OD

1шт.

10

R13002

CLAMP

- tube, 1/4 inch

2шт.

11

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

- tube, 5/16 inch

2шт.

12

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

R50624

FUEL HOSE,4.76 mm ID x 150.00 mm, SAE 30R1

Return, Filter to Fuel Tank 4.76 mm ID x 150.00 mm, SAE 30R1

1шт.

16

D34989

FUEL HOSE,0.31" ID x 9.00", SAE 30R1

Supply, Fuel Tank To Lift Pump, Cut From S120317 Hose, See Below 0.31" ID x 9.00", SAE 30R1

1шт.

17

217-205

45 ELBOW,45 Degree Elbow, 5/16" Hose Barb x 1/4" Male NPTF

ELBOW - 45 degree, 5/16 stem end x 1/4 inch PT, at fuel lift pump

1шт.

18

214-274

HOSE CLAMP,#04, 0.25" - 0.62", Type F Worm

- adj. #4, 0.25/0.62 Type F Worm

4шт.

S120317

HOSE,0.31" ID x 300.00", SAE 30R2 Type 1

- Bulk 0.31" ID x 300.00", SAE 30R2 Type 1

1шт.
